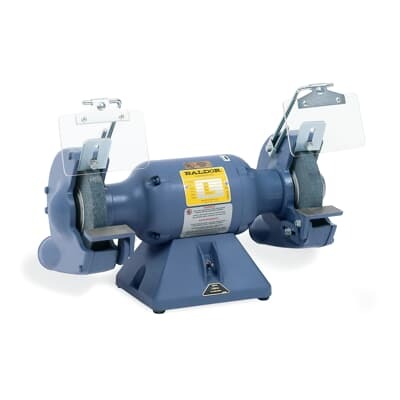

ABB 7B7306 Motor - 0.5HP, 1PH, 60Hz, GRND UR Certified
Part Number: 7B7306
Quick Summary
ABB 7B7306 motor is a compact single-phase drive designed for GRND enclosure applications in grinders, buffers, and small lathes. With 0.5 HP and 1800 RPM at 60 Hz, it delivers dependable torque for everyday workshop tasks while occupying a compact footprint. The design addresses common pain points such as noise, space constraints, and the need for quick replacement in production lines. This motor carries UR certification and is manufactured in the United States, underscoring reliability and regulatory compliance for critical equipment. Its dual voltage rating (115 V / 230 V) enables straightforward wiring in mixed-plant environments, while foot-mount, horizontal mounting simplifies retrofits and minimizes installation time for panel builders and machine upgraders.
Product Information
Extended Description
7B7306 ABB: .5HP,1800RPM,1PH,60HZ,3420C,GRND
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1800RPM,1PH,60HZ,3420C,GRND
Ambient Temperature
40 °C
Brand / Label
Baldor-Reliance®
Catalog Number
7306
Certification Agency
UR
Country of Origin
United States (US)
Customs Tariff Number
8460908020
Dimension Diagram
G7LY0306: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
GRND
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
7306
Gross Volume
3590.443 in³
Gross Weight
70 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
.5HP,1800RPM,1PH,60HZ,3420C,GRND
Made To Order
No
Medium Description
1 Phase, GRND Enclosure, (7306)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Mounting Orientation
Horizontal
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.50 Hp
Product Name
Grinders/Buffers/Lathes/Belt Sander
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
70 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.8 A | 1.9 A
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 PH, GRND,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: 0.5 HP, 1800 RPM, 1PH, 60 Hz. Business Impact: Delivers steady speed and torque with modest energy draw, reducing heat and wear on drive components. Application: Ideal for small grinders, buffers, lathes, and belt sanders in light industrial lines. Feature: GRND enclosure and 70 lb footprint. Business Impact: Provides robust protection against dust and moisture, enabling safer operation in open shop environments while maintaining a compact footprint. Application: Suitable for workshop automation and retrofit projects where space is at a premium. Feature: Foot Mounted, Horizontal mounting and 4-pole design. Business Impact: Simplifies alignment, reduces vibration, and supports scalable automation in conveyors and stand-alone machines. Application: Retrofit or new-build panels in manufacturing lines requiring reliable single‑phase drive. Feature: 115/230V dual voltage and Direct on Line starting. Business Impact: Cuts wiring complexity and startup time, enabling rapid deployment in mixed-voltage plants. Application: Machine tools, grinders, buffers, and small belt sanders in control cabinets. Feature: Insulation Class B and 0.63 in shaft diameter. Business Impact: Improves thermal resilience and shaft integrity under typical shop loads, reducing maintenance cycles. Application: Continuous duty accessories and adaptable couplings in automation hardware; supports standardized motor spares. Feature: Stocked across multiple warehouses in the US and abroad. Business Impact: Quicker fulfillment and reduced downtime for critical lines, boosting overall equipment efficiency. Application: Replacement programs, downtime-critical installations, and maintenance planning for shops and OEMs.
Get a Quick Quote for a ABB 7B7306
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7B7306?
Enquire Now
FAQs
Yes, the 7B7306 supports 115 V or 230 V operation and is suitable for direct-on-line starting in 1-phase, 60 Hz systems. Its foot-mounted, GRND enclosure design aligns with common Baldor/ABB frames, enabling straightforward replacement in grinders, buffers, and small lathes without major cabinet changes.
The motor delivers 0.5 HP at 1800 RPM (4-pole, 1-phase, 60 Hz). This combination provides consistent torque for light-duty machine tools, with predictable acceleration and reduced thermal stress compared with lower-rpm varieties. The 115/230V dual voltage supports flexible wiring, minimizing the need for dedicated transformers on the shop floor.
Absolutely. The 0.5 HP, 1800 RPM, single-phase configuration with GRND enclosure is ideal for grinders, buffers, lathes, and belt sanders. Its sturdy steel frame, 0.63 in shaft, and horizontal foot-mounting simplify mounting on workstations and retrofit projects, while maintaining alignment with standard drive couplings.
This motor is UR certified and manufactured in the United States, supporting regulatory compliance and qualification for safety audits. The GRND enclosure and insulation class B further reinforce suitability for industrial environments and routine maintenance checks.
Stocked at multiple warehouses with 0-day lead time in supplier records reduces downtime risk. Warranty terms indicate standard returns for warranty-covered units, ensuring business continuity and favorable total cost of ownership for OEMs and service providers.
