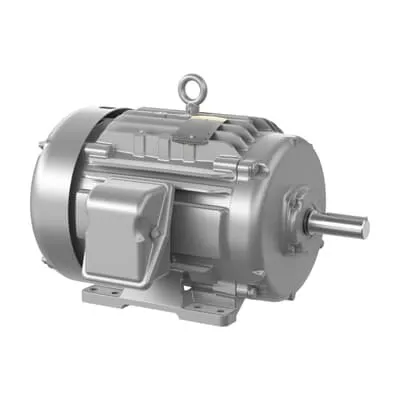

ABB 7BAEM2237-4 Definite Purpose Motor - TEFC, 7.5HP, 460V CSA/UR
Part Number: 7BAEM2237-4
Quick Summary
ABB 7BAEM2237-4 Definite Purpose motor delivers reliable 7.5 HP performance for standard industrial drives. Designed to simplify maintenance and minimize downtime, it helps replace multiple legacy motors with a single, stock-available solution. The unit carries CSA and UR certifications and adheres to NEMA design principles with a TEFC enclosure and premium efficiency. With stock available in multiple warehouses and a 0-day lead time, it’s ideal for OEMs and service providers seeking fast turnaround. By leveraging the motor’s robust construction and clear installation data, facilities can reduce energy usage and extend service intervals while ensuring compliance with stringent safety and performance standards.
Product Information
Extended Description
7BAEM2237-4 ABB: Definite Purpose 7.50 Hp 460 V (AEM2237-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1765RPM,3PH,60HZ,254U,0932M,T
Altitude
1000 m
Ambient Temperature
65 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AEM2237-4
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYT036: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
AEM2237-4
Gross Volume
9651.933 inÂł
Gross Weight
227 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1315 >> Automotive motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1765RPM,3PH,60HZ,254U,0932M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 254U, Standard Mounting, 3 Phase, TEFC Enclosure, (AEM2237-4)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
254U
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
82 %
Product Name
Definite Purpose
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
227 lb
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.1 A
Rated Efficiency
91.70 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
Frame Size 254U, Standard, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101101
Voltage Code
G
Voltage Rating
460 V
Feature: 7.5 HP at 460 V 3-phase and 1765 r/min (60 Hz) provides common-availability power for standard industrial loads. Business Impact: reliably drives conveyors, pumps, and fans with predictable torque and speed, reducing cycle times and improving throughput. Application: suitable for OEM equipment and retrofit projects needing a compatible, readily stocked motor. Feature: TEFC enclosure with NEMA Design B, frame 254U, and 1.38 in shaft validates rugged protection and precise mounting. Business Impact: minimizes exposure to dust and moisture in harsh environments, lowering maintenance costs and extending motor life. Application: ideal for dusty plant floors, workshop automation, and process lines with horizontal mounting. Feature: Premium efficiency (IE/energy class) and Insulation Class F deliver energy savings and robust thermal performance. Business Impact: lowers operating costs while maintaining performance under continuous duty. Application: energy-conscious facilities and high-duty cycles in pumping and manufacturing lines. Feature: Stocked at multiple warehouses with 0 day lead time and US origin. Business Impact: accelerates procurement, reduces downtime, and simplifies compliance in supply chains. Application: OEMs and service providers needing fast replacements and predictable delivery. Feature: CSA/UR certification and NEMA standards alignment. Business Impact: supports regulatory compliance and simplifies acceptance testing. Application: safe integration in North American installations and quality-assurance workflows.
Get a Quick Quote for a ABB 7BAEM2237-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAEM2237-4?
Enquire Now
FAQs
For installation, use the 254U frame with a rigid base and horizontal mounting (F1). The motor is 3‑phase, 460 V, 60 Hz, and 1765 rpm, suitable for direct-on-line starts. Check shaft diameter of 1.38 inches and TEFC enclosure for protection in dusty or moist environments. Plan stock from regional warehouses to minimize downtime.
Core specs include 7.5 HP output, rated current around 9.1 A, power factor approximately 0.82, efficiency about 91.7%, and a nominal speed of 1765 r/min at 60 Hz. It uses a TEFC enclosure and NEMA Design B configuration, designed for continuous duty in demanding industrial applications.
Yes, the motor is designed for continuous operation with a TEFC enclosure and Insulation Class F, supporting sustained loads. It operates at ambient temperatures up to 65 °C and up to 1000 m altitude. Its robust bearings and gearless design reduce maintenance, making it suitable for pumps, fans, and conveyors in demanding settings.
The ABB 7BAEM2237-4 carries CSA and UR certifications and complies with NEMA standards. This combination supports North American regulatory compliance, factory acceptance testing, and reliable integration into existing safety programs for industrial equipment.
Lead time is listed as 0 days, and the product is stocked at multiple warehouses (USA and international locations). This enables rapid procurement with minimal project delays. The minimum order quantity is 1 piece, and stock is allocated across regional depots for quick dispatch.
