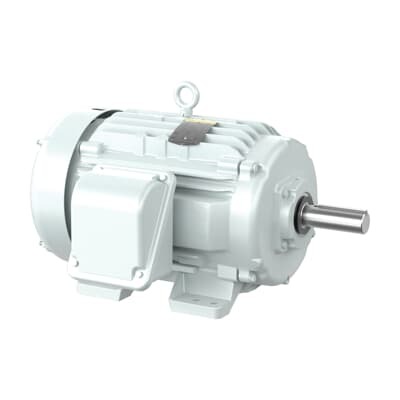

ABB 7BAEM2333-4 Definite Purpose Motor - CSA UR Certified
Part Number: 7BAEM2333-4
Quick Summary
ABB 7BAEM2333-4 Definite Purpose motor provides reliable 15 hp performance for 460 V three-phase drives in general industrial applications. Engineers often wrestle with compatibility, stock, and long lead times when selecting DP motors. CSA and UR certifications support regulatory acceptance and safety; TEFC enclosure and NEMA design help withstand harsh environments. Stock is distributed across multiple warehouses, reducing downtime and avoiding delays. This combination, along with a robust 1760 r/min rating and premium efficiency, translates to lower energy costs in continuous-duty applications. With a 284U frame, rigid base, and horizontal F1 mounting, it integrates smoothly with conveyors, pumps, and fans in food, packaging, manufacturing, and material handling environments.
Product Information
Extended Description
7BAEM2333-4 ABB: Definite Purpose 15 Hp 460 V (AEM2333-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1760RPM,3PH,60HZ,284U,0944M,TE
Altitude
1000 m
Ambient Temperature
65 °C
Bearing
6311, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AEM2333-4
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYF947: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
AEM2333-4
Gross Volume
14448.906 inÂł
Gross Weight
315 lb
Horsepower Rating UL/CSA
15.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1315 >> Automotive motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
15HP,1760RPM,3PH,60HZ,284U,0944M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Standard Mounting, 3 Phase, TEFC Enclosure, (AEM2333-4)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
284U
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
85 %
Product Name
Definite Purpose
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
315 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.6 A
Rated Efficiency
92.40 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
Standard, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101101
Voltage Code
H
Voltage Rating
460 V
Feature → Business Impact → Application: The Definite Purpose design simplifies control logic and reduces start-up complexity, lowering installed cost and shortening installation timelines, which is ideal for general machinery, conveyors, and packaging lines. Feature → Business Impact → Application: 3-phase 460 V operation at 60 Hz with a 1760 r/min (4P) rating aligns with standard plant power distribution, minimizing the need for transformers or specialty drives and enabling quick integration into existing lines such as fans and pumps. Feature → Business Impact → Application: TEFC enclosure provides excellent protection against dust, moisture, and incidental exposure, reducing maintenance intervals and extending service life in demanding environments like manufacturing floors and clean rooms. Feature → Business Impact → Application: Rated at 92.4% efficiency and premium class design lowers energy consumption and heat generation, improving cooling requirements and reducing operational costs for long-duty cycles in conveyors and material handling. Feature → Business Impact → Application: Readily available stock with 0 day lead time and multiple warehouse locations improves procurement reliability, enabling faster project delivery and easier spare parts planning for plants in the United States and abroad. Feature → Business Impact → Application: CSA UR certifications ensure safety and compliance for North American markets, while standard mounting options (horizontal F1, 284U frame) simplify retrofits and new installations in motor control centers and drive cages.
Get a Quick Quote for a ABB 7BAEM2333-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAEM2333-4?
Enquire Now
FAQs
This motor is designed for direct-on-line operation at 460 V three-phase supply and 60 Hz. With a 1760 r/min rating, TEFC enclosure, and 284U frame, it fits standard industrial power systems and mounting footprints, simplifying retrofit projects and new builds alike. Ensure your VFD or starter is configured for 60 Hz and check shaft alignment with existing couplings.
The unit provides 15 hp output, 460 V, 60 Hz, 3-phase operation, with a rated current of ~17.6 A. It features a premium efficiency level of 92.4%, insulation class F, and a running speed of 1760 r/min. These specs support reliable continuous duty and energy-conscious operation in typical industrial loads like conveyors and pumps.
Yes. The motor's 4P design, horizontal mounting (F1), TEFC enclosure, and robust frame (284U) are well-suited for conveyors, fans, and pumps in packaging lines. Its reliability, stock availability, and direct-fit mounting reduce system integration time and maintenance needs in high-throughput environments.
The motor carries CSA and UR certifications, indicating compliance with recognized safety standards for North American markets. This helps with regulatory acceptance, helps simplify supplier audits, and supports safer operation in plant environments without additional certification work.
The product is stocked at multiple warehouses with 0 day lead time, reducing downtime and accelerating procurement. Availability across US and international warehouses supports fast delivery and easier spare-part planning, contributing to a lower total cost of ownership for project timelines and maintenance programs.
