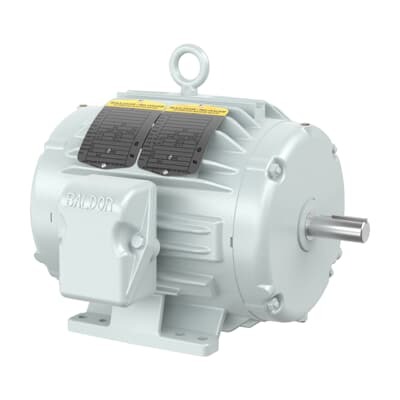

ABB 7BAEM2334-4 Definite Purpose Motor - TEFC 460 V
Part Number: 7BAEM3683-4
Quick Summary
Definite Purpose motor provides reliable, single-speed torque for light to moderate industrial applications such as pumps and fans. That helps address maintenance headaches and downtime caused by nonstandard stock or mismatched replacement motors. This ABB offering carries CSA and UR certifications, plus NEMA-aligned design and premium efficiency, ensuring regulatory compliance and energy savings. With 3-phase, 60 Hz operation and TEFC enclosure, you gain straightforward integration into existing control schemes, lower installation risk, and predictable performance across environments. The product is stocked in multiple warehouses and backed by ABB's support network, delivering faster procurement and reliable aftermarket service.
Product Information
Extended Description
7BAEM3683-4 ABB: Definite Purpose 1 Hp 460 V (AEM3683-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1755RPM,3PH,60HZ,182,0620M,TENV
Altitude
1000 m
Ambient Temperature
65 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
AEM3683-4
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
06LYH063: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
AEM3683-4
Gross Volume
5274.135 inÂł
Gross Weight
79 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1315 >> Automotive motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1755RPM,3PH,60HZ,182,0620M,TENV,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 182, Standard Mounting, 3 Phase, TENV Enclosure, (AEM3683-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
67 %
Product Name
Definite Purpose
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
79 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.6 A
Rated Efficiency
85.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B06H063X713G1
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
Frame Size 182, Standard, 3 PH, TENV,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101101
Voltage Code
M
Voltage Rating
460 V
The 20 HP 460 V three-phase motor delivers robust torque for continuous operation in conveyors, pumps, and fans, with direct-on-line starting that simplifies control panel design and minimizes soft-start hardware. A TEFC enclosure protects critical copper windings in dusty or humid factory floors, while the 286U frame and foot-mounted orientation enable straightforward installation on standard bases. Premium efficiency (93%) and a 0.84 power factor reduce energy costs and heat generation, improving overall plant thermal management and utility bills. Regreasable lubrication supports longer intervals between maintenance, lowering downtime and maintenance costs. Certifications from CSA and UR, combined with NEMA-compliant design, help ensure regulatory compliance. Stocked at multiple warehouses (US and internationally) enables faster sourcing and shorter lead times during outages or line changes.
