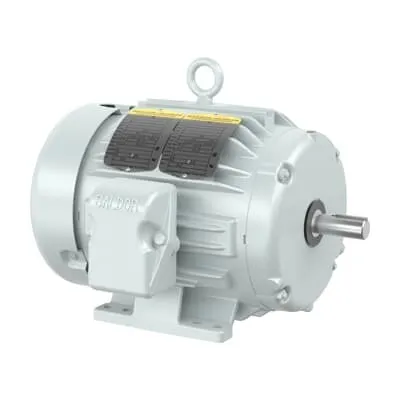

ABB 7BAEM3689-4 Definite Purpose Motor - TEFC
Part Number: 7BAEM3689-4
Quick Summary
ABB 7BAEM3689-4 Definite Purpose motor delivers reliable 2 HP performance for general-purpose conveyors and pumps. When selecting a DP motor, mismatches in torque, enclosure, or mounting can drive downtime and maintenance costs. This unit uses a TEFC enclosure and premium efficiency design, with CSA and UR certifications to support regulatory compliance. Stocked in multiple warehouses with fast lead times ensures quick replacement and minimal line stoppages. Customers gain predictable performance, easy sourcing, and lower total cost of ownership through standard, non-mto configuration.
Product Information
Extended Description
7BAEM3689-4 ABB: Definite Purpose 2 Hp 460 V (AEM3689-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,184,0626M,TEFC
Altitude
1000 m
Ambient Temperature
65 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
AEM3689-4
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYF062: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
AEM3689-4
Gross Volume
5274.135 in³
Gross Weight
91 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1315 >> Automotive motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,184,0626M,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 184, Standard Mounting, 3 Phase, TEFC Enclosure, (AEM3689-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
Definite Purpose
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
91 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.7 A
Rated Efficiency
88.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
Frame Size 184, Standard, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101101
Voltage Code
M
Voltage Rating
460 V
Feature: 2 HP, 460 V, 3-phase operation with a frame size 184 and TEFC enclosure. Business Impact: Delivers robust power in a compact footprint while protecting windings from dust and moisture, reducing maintenance needs and downtime. Application: Ideal for conveyors and pumps in packaging lines and material handling. Feature: Foot-mounted base and horizontal mounting orientation (F1). Business Impact: Simplifies installation, alignment, and retrofits, lowering installation time and risk of shaft misalignment. Application: Suitable for machine fronts, conveyors, and compact automation skids. Feature: NEMA Design Code B and insulation class F with rated speed 1760 r/min at 60 Hz. Business Impact: Provides predictable torque characteristics and long-term reliability under continuous duty. Application: General-purpose drive systems and equipment with steady RPM requirements. Feature: Premium efficiency rating with rated efficiency around 88.5%. Business Impact: Reduces operating energy costs and supports compliance with energy standards, improving ROI. Application: Any ongoing process requiring energy stewardship in light industrial settings. Feature: Ready-to-ship stock across multiple warehouses; 0 day lead time; standard configuration. Business Impact: Minimizes downtime waiting for parts, accelerates project timelines, and improves spare-part planning. Application: Immediate replacement in repair inventories or new installations across multiple regions.
