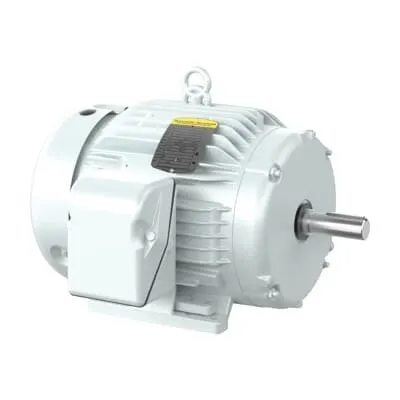

ABB 7BAEM3787-4 Definite - TEFC
Part Number: 7BAEM3787-4
Quick Summary
ABB 7BAEM3787-4 Definite Purpose motors provide 5 HP for reliable industrial drives. This model addresses maintenance challenges on conveyors, pumps, and fans by offering a robust TEFC enclosure and service-friendly design. Certified for CSA | UR, with NEMA Design Code B and Premium Efficiency, it meets key regulatory and energy-performance expectations in many facilities. Originating in the United States with zero-day lead time, it supports fast procurement for demand-driven projects. For teams planning standard installations, this motor pairs well with Baldor-Reliance components to optimize total cost of ownership while delivering consistent uptime across tough manufacturing environments.
Product Information
Extended Description
7BAEM3787-4 ABB: Definite Purpose 5 Hp 460 V (AEM3787-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1760RPM,3PH,60HZ,215,0728M,TEFC
Altitude
1000 m
Ambient Temperature
65 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
AEM3787-4
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
07LYG087: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
AEM3787-4
Gross Volume
9144.346 inÂł
Gross Weight
166 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1315 >> Automotive motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1760RPM,3PH,60HZ,215,0728M,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 215, Standard Mounting, 3 Phase, TEFC Enclosure, (AEM3787-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
77 %
Product Name
Definite Purpose
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
166 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.7 A
Rated Efficiency
90.20 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
Frame Size 215, Standard, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101101
Voltage Code
J
Voltage Rating
460 V
Feature: 5 HP at 460 V, 3-phase, 1760 r/min delivers dependable torque and steady speed for everyday plant processes. Business Impact: Improves line throughput and reduces motor heat load, enhancing overall equipment effectiveness (OEE) in material handling and process automation. Application: Ideal for conveyors, pump skids, and fans in continuous-duty setups. Feature: TEFC enclosure provides rugged protection against dust, grime, and moisture in industrial spaces. Business Impact: Lowers maintenance frequency and extends bearing life, reducing downtime. Application: Food and beverage, packaging lines, and dusty environments. Feature: Premium efficiency (90.20%) lowers operating costs over the motor’s life. Business Impact: Energy savings and lower carbon footprint in high-load applications. Application: High-cycle pumping and air-moving systems. Feature: Regreasable lubrication and robust bearings (6307 Ball) support long service intervals. Business Impact: Minimizes lubrication downtime and improves uptime predictability. Application: Heavy-duty machinery with long-duty cycles. Feature: Foot-mounted, 215 frame with direct-on-line starting and 1.00 service factor supports easy installation and reliable performance. Business Impact: Simplifies retrofits and new installs, reduces mounting complexity, and improves alignment accuracy. Application: Mechanical drives, fans, and pumps in mid-size industrial facilities. Feature: Weight and dimensions (166 lb, frame 215, 28.625 in L) aid enclosure planning and space budgeting. Business Impact: Streamlines integration with existing support structures and reduces enclosure modification costs. Application: OEM and end-user installations requiring precise fitment and standard mounting footprints.
Get a Quick Quote for a ABB 7BAEM3787-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAEM3787-4?
Enquire Now
FAQs
Yes. The ABB 7BAEM3787-4 uses a 215 frame and 60 Hz operation, with a foot-mounted design and 3-phase 460 V supply, making it a straightforward retrofit for many 215 frame installations. Direct-on-line starting supports quick commissioning, while standard mounting orientations help align with existing equipment footprints.
This motor provides 5 HP at 460 V with a rated current of 6.7 A and a service factor of 1.00. It achieves Premium Efficiency (approximately 90.20%), which translates to measurable energy savings during high-load operation and a favorable return on investment for continuous-duty applications.
Absolutely. Rated for continuous duty with a TEFC enclosure and NEMA Design Code B, the AEM3787-4 is designed for long service life in demanding environments. Its regreasable bearings and robust frame support reliable operation across conveyors, pumps, and fans in manufacturing settings.
The motor carries CSA and UR certifications, with origin in the United States. Other notable attributes include a 0-day lead time and AS Unit stock across multiple warehouses, aiding fast procurement. Always verify tariff and local regulatory requirements, particularly for export or import compliance in your facility.
Plan for regreasable lubrication intervals to maximize bearing life and minimize unexpected downtime. The unit’s 16.6 kg weight and standard mounting simplify installation, while high efficiency reduces operating costs over the motor’s life. With in-stock availability and direct-on-line starting, total cost of ownership improves through reduced downtime and streamlined maintenance cycles.
