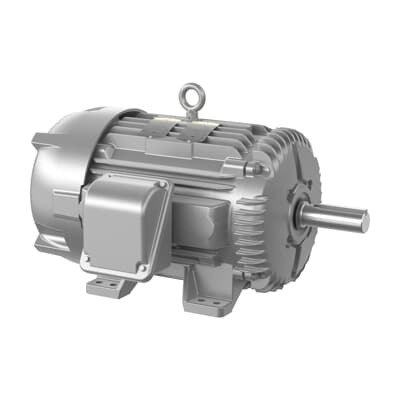

ABB 7BAEM4103-4 Definite Purpose Motor - TEFC Enclosure
Part Number: 7BAEM4103-4
Quick Summary
Definite Purpose motor delivers 25 HP at 460 V for demanding industrial applications like conveyors and machine tooling. This design minimizes downtime by ensuring a compatible, ready-to-install drive with standard mounting and robust protection. CSA and UR certifications, along with a NEMA design B classification, provide clear compliance and proven reliability in harsh environments. By aligning with 3‑phase 60 Hz operation and a stock-ready footprint, this solution delivers predictable performance, lower total cost of ownership, and faster procurement for OEMs and maintenance teams.
Product Information
Extended Description
7BAEM4103-4 ABB: Definite Purpose 25 Hp 460 V (AEM4103-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1770RPM,3PH,60HZ,324U,1056M,TE
Altitude
1000 m
Ambient Temperature
65 °C
Bearing
6312, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
AEM4103-4
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYJ746: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
AEM4103-4
Gross Volume
35972 inÂł
Gross Weight
490 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1315 >> Automotive motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
25HP,1770RPM,3PH,60HZ,324U,1056M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Standard Mounting, 3 Phase, TEFC Enclosure, (AEM4103-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324U
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
85 %
Product Name
Definite Purpose
Product Net Depth / Length
46 in
Product Net Height
23 in
Product Net Weight
490 lb
Product Net Width
34 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
30 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B10J746Z580G1
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.88 in
Short Description
Standard, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101101
Voltage Code
F
Voltage Rating
460 V
The 25 HP, 460 V, 3-phase configuration delivers consistent torque and reliable startup, reducing process variability and improving line throughput. A TEFC enclosure protects internal windings from dust, moisture, and contaminants, extending motor life in demanding factory floors and outdoor installations. Foot-mounted orientation with horizontal mounting (F1) simplifies retrofits and new equipment integration, minimizing alignment challenges and downtime during installation. Re-greasable bearings (6312 Ball) and a rugged 324U frame support long service intervals and easier preventive maintenance, lowering maintenance costs over the motor’s life. Premium efficiency (rated at 93.60%) translates to energy savings and lower operating costs in continuous-duty applications. The motor is stocked at multiple warehouses with 0-day lead time, enabling rapid fulfillment and reduced production pauses for critical plant upgrades.
Get a Quick Quote for a ABB 7BAEM4103-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAEM4103-4?
Enquire Now
FAQs
This motor is designed for foot-mounted installation with a horizontal mounting orientation (F1). It uses a 324U frame, 1.88 in shaft diameter, and a standard drive end flange, allowing straightforward retrofit into existing equipment and minimizing alignment challenges during installation.
The unit operates as a 3‑phase, 60 Hz motor at 460 V with a rated current of 30 A. It delivers 25 HP in continuous duty, has a synchronous speed of 1800 r/min and a rated speed of 1770 r/min, with a premium efficiency rating of 93.60% and a TEFC enclosure for durability in challenging environments.
Yes. The motor carries CSA and UR certifications and uses a NEMA design B construction, ensuring alignment with recognized safety and performance standards. The TEFC enclosure provides protective sealing suitable for dusty and moist environments found in industrial facilities.
The product information indicates a standard warranty policy with 'Warranty Return: Product under warranty must be returned' and stock presence across multiple warehouses (US and China), enabling quick fulfillment and reduced lead times for urgent projects.
Re-greasable bearings and a robust 324U frame support longer service intervals and easier preventive maintenance. The motor’s efficiency, combined with reliable TEFC protection and standard mounting, reduces energy costs and downtime, delivering lower total cost of ownership over the motor’s life in continuous operation environments.
