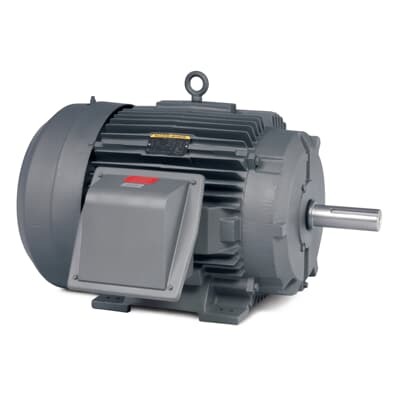

ABB 7BAEM4117-4 Definite Purpose - Premium Efficiency
Part Number: 7BAEM4117-4
Quick Summary
ABB 7BAEM4117-4 Definite Purpose motor is a 30 HP, 460 V three-phase drive for general industrial use. Operators face downtime and maintenance costs; the DP design with regreasable bearings minimizes service interruptions. It carries CSA US and CSA EEV approvals, a NEMA Design B footprint, and an IP55 TEFC enclosure for rugged environments. With Premium Efficiency and straightforward integration, this motor supports reliable process automation while delivering energy savings and easier compliance in everyday equipment upgrades.
Product Information
Extended Description
7BAEM4117-4 ABB: Definite Purpose 460 V (AEM4117-4)
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1180RPM,3PH,60HZ,365U,1458M,TE
Altitude
1000 m
Ambient Temperature
65 °C
Bearing
65BC03JPP30A
Bearing NDE
65BC03JPP30A
Brand / Label
Baldor-Reliance
Catalog Number
AEM4117-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Direction of Rotation
Both sides
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
AEM4117-4
Gross Volume
0 inÂł
Gross Weight
830 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP55
Insulation Class
ICLF
Invoice Description
30HP,1180RPM,3PH,60HZ,365U,1458M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
3 Phase, TEFC Enclosure, (AEM4117-4)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
365U
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Speeds
Single Speed
Order Multiple
1 piece
Product Name
Definite Purpose
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
830 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
35.1 A
Rated Efficiency
93.0 %
Rated Speed
1,185 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Short Description
3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
S1
UNSPSC
26101101
Voltage Code
G
Voltage Rating
460 V
Feature → Business Impact → Application: The 30 HP, 460 V three-phase DP motor delivers robust drive performance for conveyors, pumps, and fans, reducing energy consumption while maintaining consistent output in high-load conditions. Application: Ideal for general industrial drives where reliability and predictable torque are critical, such as material handling lines and ventilation systems. Benefit: Lower operating costs due to energy efficiency and reduced maintenance overhead with a direct-on-line startup approach and 6-pole, single-speed operation. Feature → Business Impact → Application: TEFC enclosure and IP55 protection safeguard internal components from dust, moisture, and incidental contact, extending service life in harsh factory floors. Application: Suitable for manufacturing environments, packaging lines, and steel-plant floor equipment. Benefit: Fewer unplanned outages and longer intervals between service downtimes. Feature → Business Impact → Application: Regreasable bearings (65BC03JPP30A) and regreasable lubrication simplify maintenance scheduling, improving uptime. Application: Rotating equipment in continuous duty cycles. Benefit: Easier maintenance planning and reduced total cost of ownership. Feature → Business Impact → Application: Premium Efficiency rating (93.0%) supports energy-saving initiatives and regulatory compliance. Application: Retrofit and new installations in energy-conscious facilities. Benefit: Lower energy costs and improved sustainability metrics. Feature → Business Impact → Application: Direct On Line starting and 60 Hz operation align with standard US motor control practices, enabling fast commissioning. Application: Plant upgrades and new line integrations. Benefit: Simplified installation, quicker ROI, and improved startup reliability.
Get a Quick Quote for a ABB 7BAEM4117-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAEM4117-4?
Enquire Now
FAQs
For installation, ensure a rigid motor base compatible with the 365U frame and a direct-on-line starter setup suitable for 460 V three-phase power at 60 Hz. Verify mounting orientation (both rotation directions supported), confirm bearing access for regreasable 65BC03JPP30A units, and accommodate the TEFC/IP55 protection to resist dust and moisture in typical factory environments.
Key specs include 30 HP, 1,185 r/min, 460 V, 3-phase, 60 Hz, 6 poles, TEFC enclosure, IP55 rating, NEMA Design B, and 93.0% efficiency. With a rated current of 35.1 A and direct-on-line starting, it delivers strong startup torque and steady operation for belt conveyors, pump sets, or fan assemblies in industrial plants.
Yes. It features CSA US and CSA EEV approvals (CCSA US), aligns with NEMA Design B, and offers an IP55 TEFC enclosure. These certifications support safe operation, regulatory compliance, and reliability in North American industrial settings, making it suitable for retrofits and new installations where standard compliance is a priority.
The 65BC03JPP30A bearings are regreasable, enabling scheduled lubrication to extend bearing life. Plan periodic checks, use the recommended lubricant quantities, and monitor bearing temperature during high-load periods. The TEFC enclosure helps limit dust and moisture ingress, reducing contamination risk and maintenance frequency in challenging environments.
Expect lower energy costs from the 93% efficient motor and potential uptime gains from robust TEFC/IP55 protection and regreasable bearings. Direct-on-line starting reduces starting current and commissioning time, while 0-day lead times for sourcing can shorten project schedules, delivering faster payback on automation upgrades.
