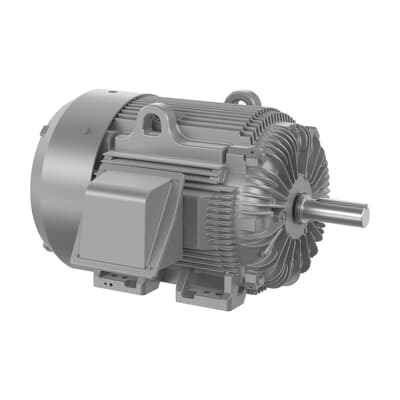

ABB 7BAEM4314-4 Definite Purpose Motor - 60 HP, 460V TEFC
Part Number: 7BAEM4314-4
Quick Summary
ABB 7BAEM4314-4 Definite Purpose Motor delivers 60 HP for robust industrial drives. In practice, this enables compact, reliable motorization in tight equipment footprints. For engineers grappling with downtime and long procurement cycles, this model offers practical stock availability and rapid fulfillment. Certified to CSA EEV and CCSA US, it features a TEFC enclosure and premium efficiency, aligning with modern energy and safety standards. As a versatile, 3‑phase, 60 Hz solution, it supports OEMs seeking straightforward installation, predictable performance, and a clear business case for maintenance budgets and uptime guarantees.
Product Information
Extended Description
7BAEM4314-4 ABB: Definite Purpose 60 Hp 460 V (AEM4314-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1785RPM,3PH,60HZ,405U,TEFC,FOO
Altitude
1000 m
Ambient Temperature
65 °C
Bearing
80BC03JPP30A, Ball
Bearing NDE
80BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
AEM4314-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
617429-100: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
AEM4314-4
Gross Volume
75711.563 inÂł
Gross Weight
1294 lb
Horsepower Rating UL/CSA
60.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1315 >> Automotive motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
60HP,1785RPM,3PH,60HZ,405U,TEFC,FOOT,
Lubrication
Regreasable
Made To Order
No
Medium Description
Standard Mounting, 3 Phase, TEFC Enclosure, (AEM4314-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405U
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
89 %
Product Name
Definite Purpose
Product Net Depth / Length
41.5 in
Product Net Height
52.5 in
Product Net Weight
1294 lb
Product Net Width
34.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
66.6 A
Rated Efficiency
95 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
Standard, 3 PH, TEFC,
Standards
Other
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101101
Voltage Code
G
Voltage Rating
460 V
Feature → Business Impact → Application: 60 HP at 460 V for reliable performance in standard industrial drives, enabling consistent throughput and reduced motor loading in conveyors and pumps. This aligns with long-life operation in continuous duty environments, lowering total cost of ownership and improving line productivity. Application: packaging lines, material handling, and process equipment requiring a 3‑phase, 60 Hz motor with dependable starting characteristics. Feature → TEFC enclosure and 405U frame for rugged protection against dust and moisture, enhancing equipment uptime in challenging plants and dusty environments. Application: food processing, textiles, and automation where enclosure integrity reduces maintenance cycles. Feature → Foot Mounted, horizontal orientation with NEMA B design and 4 poles delivering 1780–1785 rpm, suitable for synchronous speed alignment with common drives, reducing alignment issues and motor mounting time. Application: fans, blowers, and pumps integrated into OEM machines. Feature → Premium Efficiency (95%) and PF ~89% increase energy savings and utility bill reductions across muliple shifts, supporting compliance with efficiency targets. Application: energy management programs and green manufacturing. Feature → Direct-on-Line starting and regreasable bearings simplify installation and maintenance, delivering lower start-up costs and easier field servicing. Application: retrofits and new equipment where quick commissioning matters. Feature → Stocked at multiple warehouses with 0 day lead time, ensuring rapid replacement stock and minimized downtime in US and international sites. Application: critical line downtime scenarios and OEMs requiring guaranteed availability.
Get a Quick Quote for a ABB 7BAEM4314-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAEM4314-4?
Enquire Now
FAQs
This motor is foot-mounted with a horizontal mounting orientation and a 405U frame, designed for direct-on-line starting. Installation should follow the standard TEFC enclosure guidelines, align with NEMA B design, and ensure adequate clearance for maintenance and cooling. Bearings are regreasable, which supports long service intervals with proper lubrication.
The motor is rated for 460 V, 60 Hz, with 4 poles yielding about 1780 rpm under load and 1785 rpm synchronous speed. It delivers 60 HP with a rated current around 66.6 A, and a PF of about 89% with 95% efficiency, making it well-suited for standard industrial drives like conveyors, pumps, and fans.
This model features CSA EEV and CCSA US certifications, aligning with North American safety and performance expectations. Such approvals help with compliance in regulated industries and simplify procurement for projects requiring documented regulatory conformance.
Since bearings are regreasable, schedule periodic lubrication according to operating hours or ambient conditions. The TEFC enclosure provides protection against dust and moisture, reducing cleaning frequency. Use the 405U frame for compatible couplings and mounts, and verify vibration and temperature quickly during routine maintenance checks.
The product is stocked across multiple warehouses with 0 day lead time in regions such as the US and China, minimizing downtime for replacements and spares. This makes it a strong candidate for OEMs and maintenance teams needing rapid procurement and predictable supply chain performance.
