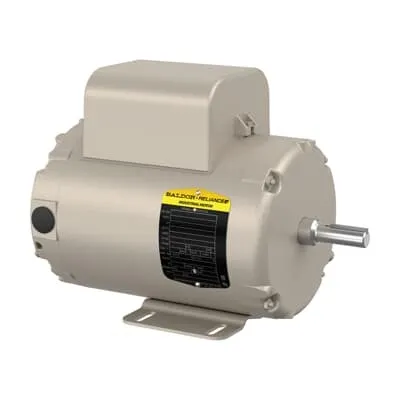

ABB AFL3510A General Purpose HVAC Motor - NEMA L
Part Number: 7BAFL3510A
Quick Summary
ABB AFL3510A General Purpose HVAC motor provides 1 HP performance for fans and blowers in commercial HVAC applications. For engineers facing downtime from long lead times and compatibility gaps, this unit is designed for quick installation and reliable operation. It aligns with NEMA standards, TEAO enclosure, and CSA/UR certifications for safe, compliant operation. With a 56-frame, 1-phase, 60 Hz design and 115/230 V options, it reduces wiring complexity and simplifies stocking for maintenance teams, supporting faster project delivery and lower lifecycle costs. Designed for direct-on-line starting and straightforward integration with common drive systems, it suits retrofit projects and new equipment alike.
Product Information
Extended Description
7BAFL3510A ABB: General Purpose HVAC 1 Hp 115 V (AFL3510A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,1PH,60HZ,56,3528LC,TEAO
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AFL3510A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
AFL3510A
Gross Volume
5274.135 inÂł
Gross Weight
47 lb
Insulation Class
F
Invoice Description
1HP,1750RPM,1PH,60HZ,56,3528LC,TEAO,F1,N
Made To Order
No
Medium Description
General Purpose HVAC, 1 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (AFL3510A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
86 %
Product Name
General Purpose HVAC
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
47 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.6 A | 4.8 A
Rated Efficiency
77 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
115 V | 230 V
Feature: 1 HP, 115/230 V single-phase operation with TEAO enclosure and rated 1740 rpm. Business Impact: Delivers reliable torque and a straightforward install, improving system uptime and energy efficiency in HVAC fans and blowers. Application: Ideal for air handlers, rooftop units, and supply fans in commercial buildings. Feature: 56-frame, foot-mounted horizontal mounting (F1). Business Impact: Simplifies retrofit and new installations by matching standard base footprints, reducing onboarding time for technicians. Application: Fits commonly used OEM bases in HVAC equipment stacks and replacement projects. Feature: TEAO enclosure (Totally Enclosed Air Over). Business Impact: Lower maintenance needs and better protection in dusty or outdoor environments, extending motor life. Application: Outdoor or semi-exposed HVAC applications and manufacturing facilities. Feature: NEMA design code L, CSA/UR certifications. Business Impact: Ensures regulatory compliance and broader market acceptance, mitigating procurement risk. Application: Building automation and facilities in US and Canada. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Minimizes downtime and accelerates maintenance response, enabling just-in-time replacements. Application: Field service operations and multi-site deployments. Feature: 0.63 in shaft diameter, 6205 ball bearings, weight 47 lb. Business Impact: Mechanical reliability with robust drive train and predictable servicing intervals. Application: High-use HVAC drives and fans requiring consistent performance. Feature: 115/230 V, 60 Hz, 1PH, starting method Direct On Line. Business Impact: Flexible electrical sourcing and easy integration with standard electrical systems. Application: Retrofit projects and new equipment installations in commercial facilities.
Get a Quick Quote for a ABB 7BAFL3510A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAFL3510A?
Enquire Now
FAQs
The AFL3510A is designed as a foot-mounted motor with horizontal mounting (F1). This footprint matches many standard OEM bases, enabling straightforward retrofits and quick integration into existing HVAC assemblies without custom brackets or adapters.
Yes. The AFL3510A supports 115 V or 230 V single-phase operation at 60 Hz. The rated current is 9.6 A at 115 V and 4.8 A at 230 V, enabling flexible electrical sourcing and simplified panel design for HVAC equipment.
The AFL3510A carries NEMA design designation L and CSA/UR certifications, with a TEAO enclosure. These standards support regulatory compliance, safer operation, and broader market access in North America.
Yes. With 0 day lead time and stock at multiple warehouses, AFL3510A is well-suited for retrofit projects and rapid replacements, minimizing system downtime and speeding project timelines.
Key specs include a 56-frame size, 0.63 in shaft diameter, 6205 ball bearings, and a TEAO enclosure. Maintenance best practices focus on regular bearing checks, keeping dust at bay, and periodic inspection of mounting integrity to sustain performance.
