ABB AFL3520A Farm Duty Motor - TEAO 56Z 1PH 60Hz
Part Number: 7BAFL3520A
Quick Summary
ABB AFL3520A Farm Duty Motor is a reliable, energy-efficient drive for aeration fans and light-duty farm equipment. Too often, downtime and maintenance costs rise when duty cycles are mismatched or enclosure protection is inadequate in harsh environments. This model carries CSA and UR certifications and uses a NEMA TEAO enclosure with a 56Z frame, designed for 60 Hz, single-phase operation. Its dual voltage rating—115/230 V—along with straightforward direct-on-line starting simplifies installation and reduces cabinet space requirements. With a compact footprint and proven ruggedness, it supports efficient retrofits in dairy barns, poultry houses, and water treatment applications, delivering predictable performance and lower total cost of ownership over the motor’s life.
Product Information
Extended Description

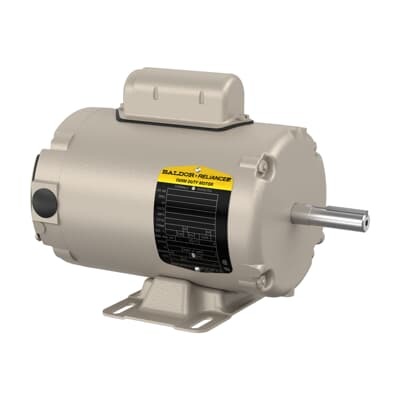

7BAFL3520A ABB: Farm Duty Motor 0.75 Hp 115 V (AFL3520A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,1PH,60HZ,56Z,3420L,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AFL3520A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYK048: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
AFL3520A
Gross Volume
1400.25 inÂł
Gross Weight
29 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,3450RPM,1PH,60HZ,56Z,3420L,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Aeration Fan, 0.75 HP, 3600 RPM, Frame Size 56Z, Standard Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (AFL3520A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
68 %
Product Name
Aeration Fan
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
29 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11 A | 5.5 A
Rated Efficiency
71 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56Z, Standard, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: 0.75 HP, 3450 r/min, 1PH, 60 Hz operation. This delivers sufficient torque for aeration fans and light-duty conveyors while maintaining energy efficiency, reducing operating costs in farm environments. Application: suited for aeration, feed handling, and barn equipment. Feature → Business Impact → Application: TEAO enclosure with 56Z frame and foot-mounted, horizontal mounting. Improves reliability in open environments, simplifies retrofits, and reduces enclosure cooling requirements. Application: farm facilities and weather-exposed installations. Feature → Business Impact → Application: dual voltage 115/230 V and a rated current of 11 A / 5.5 A. Provides installation flexibility across power distribution systems and streamlines integration with existing controls. Application: dairy, poultry, and processing facilities. Feature → Business Impact → Application: sealed 6203 bearing, regreasable lubrication, and Direct On Line starting. Enhances longevity, minimizes maintenance intervals, and enables quick startup in busy crop seasons. Application: continuous operation in feed rooms, barns, and water treatment lines. Feature → Business Impact → Application: NEMA design with CSA/UR certification and TEAO compliance. Ensures regulatory alignment and safer procurement. Application: projects requiring formal approvals and standardized components. Feature → Business Impact → Application: footprint optimized for 56Z frame with horizontal F1 mounting. Reduces retrofit complexity and spare parts inventory. Application: compatible with existing farm-duty systems and retrofits.
