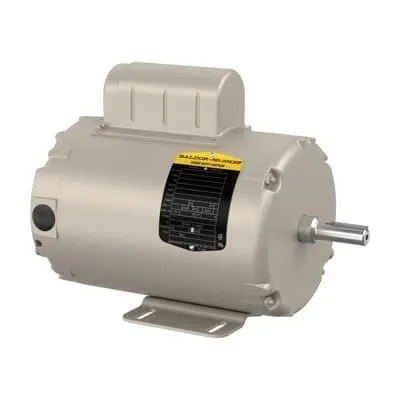

ABB 7BAFL3521A Farm Duty Motor - 1 HP TEAO 60 Hz
Part Number: 7BAFL3521A
Quick Summary
ABB 7BAFL3521A Farm Duty Motor delivers reliable 1 HP performance for aeration fans and farm equipment. Engineers frequently wrestle with startup torque, voltage sensitivity, and downtime in field environments, which drives maintenance costs and productivity losses. This motor carries CSA and UR certifications, RoHS compliance, and a TEAO enclosure with a NEMA design code to support harsh agricultural settings. With 115/230 V single-phase operation and a rugged frame, it reduces wiring complexity and stock variety while delivering predictable, energy-efficient performance for farm-duty applications. Ideal for agricultural fans, small conveyors, and other single-phase loads, it aligns with industrial-mobility procurement requirements and lifecycle cost considerations.
Product Information
Extended Description
7BAFL3521A ABB: Farm Duty Motor 1 Hp 115 V (AFL3521A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,1PH,60HZ,56,3524L,TEAO,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AFL3521A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
N
Dimension Diagram
35LYT954: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
AFL3521A
Gross Volume
2110.969 inÂł
Gross Weight
39 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1HP,3450RPM,1PH,60HZ,56,3524L,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Aeration Fan, 1 HP, 3600 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (AFL3521A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
81 %
Product Name
Aeration Fan
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
39 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12 A | 6 A
Rated Efficiency
66 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T954-0498
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
1 HP, 3600 RPM, Frame Size 56, Standard, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
K
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 2-pole, 1-phase design at 60 Hz delivers robust starting torque and a smooth steady run, reducing startup delays and equipment wear in aeration fans and related farm machinery. This translates to higher uptime and lower maintenance costs for continuous-duty operations in barns and greenhouses. Feature → Application synergy: 115 V / 230 V voltage rating supports dual-voltage installations common in rural facilities, enabling flexible retrofits and simplified inventory management for regional OEMs. Feature → TEAO enclosure with frame size 56 and NEMA design N provides straightforward installation without external fan cooling, improving reliability in dusty agricultural environments and enabling vertical or horizontal mounting options. Feature → Regreasable bearings (60 205 ball bearings) and a service factor of 1.25 extend bearing life and reduce lubrication-related downtime, suitable for extended run times in aeration fans and process ventilation. Feature → RoHS compliance and US origin certifications enhance regulatory alignment and supplier risk management, supporting quality assurance programs for food, beverage, and agricultural equipment. Feature → Weight and dimensions (frame size 56, 39 lb) support easy handling, site-standards compatibility, and drop-in replacement in legacy systems while maintaining fuel- and power-consumption efficiency across shifts.
Get a Quick Quote for a ABB 7BAFL3521A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAFL3521A?
Enquire Now
FAQs
Yes. The 7BAFL3521A uses a frame size 56 and is designed for foot-mount installation with horizontal mounting orientation (F1). It supports standard shaft dimensions (0.63 in diameter) and a TEAO enclosure, enabling straightforward retrofits into existing farm-duty fans and conveyors without extensive rework.
The motor runs on 115 V or 230 V, 1-phase, 60 Hz, with a 2-pole design and a rated speed of 3450 r/min (synchronous 3600 r/min). It has a service factor of 1.25, which accommodates short-term overloads typical in aeration and ventilation duties, while staying within regulatory and energy standards.
Yes. Classified as a continuous-duty, farm-ready motor with TEAO enclosure and RoHS compliance, it is well-suited for aeration fans and ventilation in agricultural facilities. Its 1HP rating, frame size 56, and durable ball bearings support long run times with predictable performance and minimal maintenance.
The AFL3521A carries CSA and UR certifications, RoHS compliance, and NEMA design designation. These certifications support regulatory alignment for North American markets and reduce supplier risk in procurement and quality programs.
Regreasable bearings and a robust 1.25 service factor lower periodic lubrication needs and compensate for load variances in live farm environments. The TEAO design minimizes enclosure requirements, while the durable steel frame and standard mounting simplify replacements and reduce downtime, contributing to a favorable return on investment through improved uptime and lower maintenance labor.
