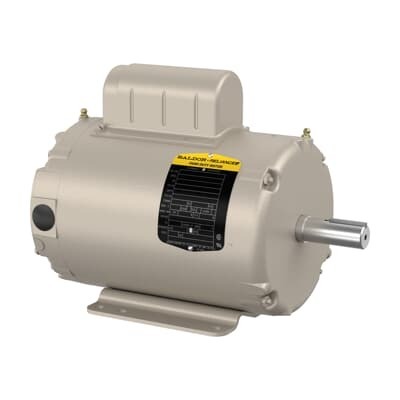

ABB 7BAFL3522A Aeration Fan - TEAO 1PH 60Hz Farm Duty
Part Number: 7BAFL3522A
Quick Summary
ABB 7BAFL3522A Aeration Fan is a single-phase motor solution optimized for farm duty ventilation and aeration. It addresses downtime and mismatched power by delivering reliable 1.5 HP performance from a 115/230 V supply with a TEAO enclosure. Certified and compliant, it carries UL/CSA recognition and RoHS compliance, aligning with contemporary regulatory expectations. With a 60 Hz operation and a 143TZ frame, this motor offers predictable speed and torque for continuous-duty applications. The design supports easy installation and maintenance, while delivering consistent airflow for agricultural equipment and industrial processes where dependable operation reduces total cost of ownership and downtime.
Product Information
Extended Description
7BAFL3522A ABB: Farm Duty Motor 1.5 Hp 115 V (AFL3522A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3450RPM,1PH,60HZ,143TZ,3528L,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AFL3522A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYT889: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
AFL3522A
Gross Volume
2110.969 inÂł
Gross Weight
43 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1.5HP,3450RPM,1PH,60HZ,143TZ,3528L,TEAO
Lubrication
Regreasable
Made To Order
No
Medium Description
Aeration Fan, 1.5 HP, 3600 RPM, Frame Size 143Tz, Standard Mounting, 1 Phase, TEAO Enclosure, 115/230 V, 60 Hz (AFL3522A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
82 %
Product Name
Aeration Fan
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
43 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.6 A | 8.3 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 3600 RPM, Frame Size 143Tz, Standard, 1 PH, TEAO, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
H
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 1.5 HP, 60 Hz single-phase motor delivers ample power for aeration fans, enabling efficient air movement in barns and aquaculture setups, reducing energy waste and improving environmental control. This performance translates into measurable productivity gains and better crop or livestock outcomes when integrated with ventilation systems. Feature → Application → Benefit: TEAO (totally enclosed air over) enclosure protects internal components from dust and moisture, extending motor life in harsh environments and reducing maintenance windows during peak seasons. Feature → Advantage → Real-world use: Frame size 143TZ with horizontal mounting and F1 position simplifies retrofits in existing equipment, minimizing downtime during upgrades and enabling plug-and-play compatibility with common farm-duty fans. Feature → Results → Compliance: Insulation Class B and RoHS compliance ensure reliability under elevated ambient temperatures up to 40 °C and align with modern environmental standards, mitigating regulatory risk for installation labs and facilities. Feature → Challenge → Solution: Direct On Line starting with 1-phase input reduces control complexity and startup surge considerations, enabling straightforward integration with existing switchgear and variable-speed drives when required, while maintaining predictable startup and airflow. Feature → Context → Value: A 0.88 in shaft diameter and 6205 ball bearings support durable, long-life operation with reduced vibration, contributing to lower maintenance costs and extended service intervals in farm and industrial ventilation systems.
Get a Quick Quote for a ABB 7BAFL3522A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAFL3522A?
Enquire Now
FAQs
This motor supports common single-phase 115 V and 230 V operation at 60 Hz. It is designed for direct-on-line starting, which simplifies wiring to standard control panels and reduces startup complexity in both retrofit and new installations.
Yes. It is specified as a 1.5 HP farm-duty motor with TEAO enclosure, suitable for aeration fans and ventilation in agricultural settings, delivering reliable performance with a compact 143TZ frame and horizontal mounting for easy integration.
The unit carries UL/CSA ratings and RoHS compliance, with NEMA references in the specifications. This combination supports regulatory acceptance in many industrial facilities and farming operations while ensuring safe and compliant operation.
Plan for a foot-mounted base in horizontal orientation (F1) with a TEAO enclosure. The motor is designed for straightforward direct-on-line start, with a 0.88 in shaft and 6205 ball bearings, which helps minimize alignment issues and vibration during mounting.
Lubrication is regreasable, supporting extended service intervals. If a warranty issue arises, the policy indicates that warranty returns are required for qualifying products, so preserve packaging and documentation for warranty processing.
