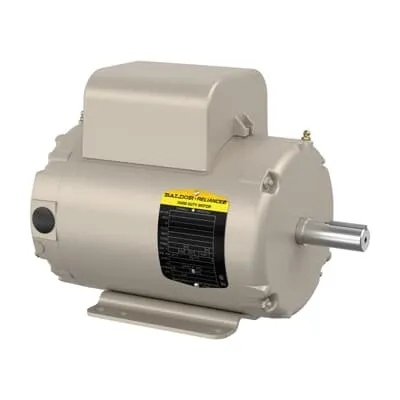

ABB AFL3524A Farm Duty Motor - 3 HP, 230 V CSA UR
Part Number: 7BAFL3524A
Quick Summary
ABB AFL3524A Farm Duty Motor is a 3 HP, 230 V drive for aeration fans and farm equipment. Farm environments demand high uptime and simple maintenance to keep critical processes running. This model carries CSA and UR safety recognitions, a TEAO enclosure, and 60 Hz operation, aligning with industry standards. With a 145TZ frame, 1‑phase supply, and foot‑mounted installation, it delivers reliable performance and straightforward service. For procurement teams, the combination of rugged design, RoHS compliance, and favorable lead times supports faster project phasing and predictable maintenance budgets.
Product Information
Extended Description
7BAFL3524A ABB: Farm Duty Motor 3 Hp 230 V (AFL3524A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,1PH,60HZ,145TZ,3535LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AFL3524A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYT906: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
AFL3524A
Gross Volume
2110.969 inÂł
Gross Weight
52 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
3HP,3450RPM,1PH,60HZ,145TZ,3535LC,TEAO
Lubrication
Regreasable
Made To Order
No
Medium Description
Aeration Fan, 3 HP, 3600 RPM, Frame Size 145Tz, Standard Mounting, 1 Phase, TEAO Enclosure, 230 V, 60 Hz (AFL3524A)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Product Name
Aeration Fan
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
52 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15 A
Rated Efficiency
78 Percentage %
Rated Speed
3450 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 145Tz, Standard, 1 PH, TEAO, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
H
Voltage Rating
230 V
Feature → Business Impact → Application: The 3 HP, 230 V single‑phase input matches standard power circuits, reducing wiring errors and installation time, which lowers project cost and speeds commissioning for farm projects. Application: Aeration fans and farm conveyors benefit from quick, reliable startup and simplified electrification. Feature → Business Impact → Application: TEAO enclosure protects bearings and windings in dusty, humid agricultural environments, decreasing maintenance frequency and extending service life. Application: Routine ventilation and grain-drying systems in barns and facilities operate with fewer unscheduled outages. Feature → Business Impact → Application: 145TZ frame, 2‑pole, 3450 r/min at 60 Hz provides predictable torque and steady speed control for belt‑driven loads, improving process stability. Application: Fans, pumps, and material handling in farm settings. Feature → Business Impact → Application: Foot mounted horizontal mounting and Direct On Line starting streamline retrofits and on‑site installation, reducing downtime and spare parts needs. Application: Retrofit projects in existing equipment housings. Feature → Business Impact → Application: CSA and UR certifications with NEMA alignment ensure regulatory compliance and safe operation, mitigating risk for regulated environments. Application: Food processing and agriculture facilities seeking compliant, reliable motors. Feature → Business Impact → Application: Regreasable bearings, RoHS compliance, and insulation class B support longer maintenance intervals and energy‑efficient operation. Application: Continuous duty applications in 60 Hz environments with moderate ambient temperatures.
Get a Quick Quote for a ABB 7BAFL3524A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAFL3524A?
Enquire Now
FAQs
The AFL3524A is a 230 V, single‑phase, 60 Hz motor designed for straightforward integration into common agricultural and industrial power circuits, minimizing wiring changes and enabling quick deployment.
Ideal for aeration fans, ventilation systems, conveyors, and other farm equipment requiring continuous, reliable operation with easy maintenance and a robust TEAO enclosure.
The AFL3524A carries CSA and UR safety recognitions, aligns with NEMA standards, and is RoHS compliant, reducing regulatory risk in agricultural and processing facilities.
Choose a horizontal, foot‑mounted mounting, use Direct On Line starting if appropriate, and verify a 145TZ frame fit to ensure seamless retrofits with minimal ancillary hardware.
With a regreasable bearing design, RoHS compliance, 60 Hz operation, and robust enclosure, it minimizes maintenance downtime, extends service intervals, and supports energy‑efficient, compliant farm automation projects.
