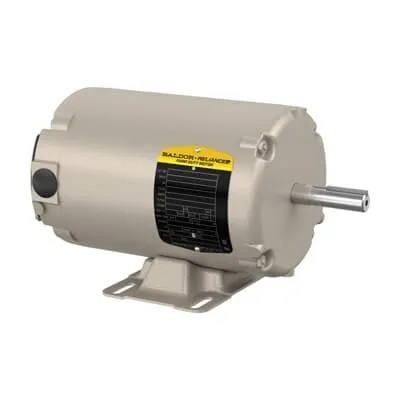

ABB AFM3528 Motor - Farm Duty TEAO, 3PH 60Hz NEMA B
Part Number: 7BAFM3528
Quick Summary
ABB AFM3528 Motor delivers reliable 0.75 HP farm-duty performance for aeration fans and similar agricultural applications. Engineers often confront mounting challenges, supply gaps, and service access when selecting motors for harsh environments. This model meets NEMA design B, TEAO enclosure, and CSA | UR certifications, supporting reliability and compliance. With straightforward installation, robust bearings, and a footprint built for international stock, it combines efficiency with predictable maintenance costs, helping OEMs and service teams shorten lead times and protect uptime.
Product Information
Extended Description
7BAFM3528 ABB: Farm Duty Motor 0.75 Hp 230 V (AFM3528)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,3450RPM,3PH,60HZ,56Z,3413M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AFM3528
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYK062: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
AFM3528
Gross Volume
1400.25 in³
Gross Weight
24 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,3450RPM,3PH,60HZ,56Z,3413M,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Aeration Fan, 0.75 HP, 3600 RPM, Frame Size 56Z, Standard Mounting, 3 Phase, TEAO Enclosure, 230/460 V, 60 Hz (AFM3528)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56Z
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
73 %
Product Name
Aeration Fan
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
24 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.6 A | 1.3 A
Rated Efficiency
74 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 3600 RPM, Frame Size 56Z, Standard, 3 PH, TEAO, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
K
Voltage Rating
230 V | 460 V
TEAO enclosure minimizes exposed cooling components, reducing maintenance cycles and contamination risks. This translates to lower downtime and longer motor life in dusty farm environments, making it ideal for aeration fans in poultry houses or greenhouses. Three-phase operation at 230/460 V with a 0.75 HP rating delivers reliable performance across common farm electrical supply. The 56Z frame and 2-pole, 3450 r/min design offer straightforward replacement in existing systems and align with standard mounting patterns. Direct On Line starting with a NEMA design B configuration minimizes startup torque spikes and reduces control hardware complexity, cutting system costs while preserving equipment safety and uptime. Sealed 6203 bearings with regreasable lubrication are built to withstand dust, humidity, and temperatures up to 40 °C, preserving efficiency and longevity. Certifications and standards such as CSA | UR, NEMA compliance, TEAO enclosure, and insulation class B support regulatory expectations and global procurement. Stocked at multiple warehouses with 0 day lead times ensures fast delivery for repairs or new builds, while the 0.63 in shaft diameter and 56Z frame provide compatibility across a wide range of OEM equipment.
Get a Quick Quote for a ABB 7BAFM3528
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAFM3528?
Enquire Now
FAQs
For installation, use the foot-mounted base with horizontal mounting (F1) and standard drive end flange. Direct On Line starting is supported, reducing control hardware needs. Ensure supply is 230/460 V with 3 phases and confirm the 56Z frame fits the equipment envelope. Align installation with TEAO enclosure requirements to maintain rated performance in agricultural environments.
Key specs include 0.75 HP output, 3-phase operation at 230/460 V, 60 Hz, and 3450 r/min rated speed. The motor features a 2-pole design, NEMA design B configuration, and a shaft diameter of 0.63 inches. It supports both 230 V and 460 V connections, providing wiring flexibility for varying farm electrical systems.
Yes. It is explicitly designed as a farm-duty motor with TEAO enclosure and 0.75 HP output, ideal for aeration fans in barns and greenhouses. The motor’s rugged bearings, regreasable lubrication, and 40 °C ambient temperature tolerance support reliable operation in dusty, humid, or agricultural settings.
The AFM3528 carries CSA | UR certifications, adheres to NEMA standards, and uses a TEAO enclosure with Insulation Class B. These certifications help ensure regulatory compliance, safety, and compatibility with global procurement requirements for OEMs and service teams.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (e.g., US and international locations). This enables rapid delivery for repairs or new installations, reducing downtime and accelerating project timelines.
