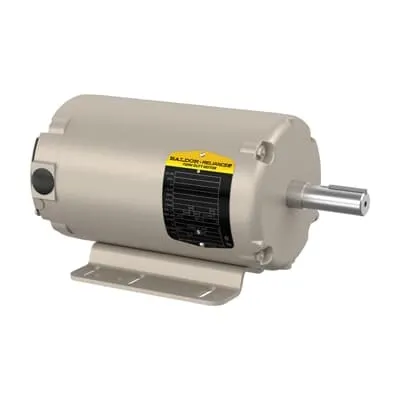

ABB 7BAFM3530 Farm Duty Motor - TEAO 1.5HP 60Hz
Part Number: 7BAFM3530
Quick Summary
ABB 7BAFM3530 Farm Duty Motor powers reliable aeration and ventilation in farming and processing facilities. Users often struggle with motor suitability for continuous-duty operation, harsh ambient temperatures, and parts availability across regions. This model delivers 1.5 HP from a 60 Hz, 208-230/460 V three-phase supply, with TEAO enclosure and a rugged 143TZ frame designed for horizontal foot mounting and direct-on-line starting. With an IE1 insulation class and a 1.15 service factor, it combines efficiency with robustness. Stocked across multiple US warehouses, it aligns with Baldor-Reliance heritage and ABB service networks, offering predictable performance, easy maintenance, and a clear path to reliable uptime in demanding farm and industrial environments.
Product Information
Extended Description
7BAFM3530 ABB: Farm Duty Motor 1.5 Hp 208 V (AFM3530)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3450RPM,3PH,60HZ,143TZ,3424M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AFM3530
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
34LYK954: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE1 | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
AFM3530
Gross Volume
2110.969 inÂł
Gross Weight
30 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
1.5HP,3450RPM,3PH,60HZ,143TZ,3424M,TEAO
Lubrication
Regreasable
Made To Order
No
Medium Description
Aeration Fan, 1.5 HP, 3600 RPM, Frame Size 143Tz, Standard Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (AFM3530)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
74 %
Product Name
Aeration Fan
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
30 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.9 A | 4.6 A | 2.3 A
Rated Efficiency
80 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 3600 RPM, Frame Size 143Tz, Standard, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
L
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: 1.5 HP motor, 60 Hz, 208-230/460V three-phase supply enables compatible operation with common farm and ventilation systems, reducing wiring complexity and energy waste while delivering robust power for aeration fans. The TEAO enclosure reduces exposure to dust and moisture, lowering maintenance costs and extending motor life in harsh barn or plant environments; ideal for continuous duty where predictable cooling is critical. 143TZ frame and foot-mounted orientation facilitate straightforward installation on existing bases or new equipment, accelerating project timelines and ensuring compatibility with standard mounting patterns. Direct On Line starting simplifies control schemes, lowering upfront hardware requirements and enabling quick startup in variable load conditions. Insulation class B and service factor of 1.15 provide a balance of protection and resilience, supporting longer service intervals and reduced downtime. Long-tail keywords: farm duty motor 1.5HP, 60 Hz motor, TEAO enclosure motor, 143TZ frame, foot mounted motor, 3-phase 208-230/460V, Direct On Line start, IE1 efficiency, Baldor-Reliance legacy, CSA UR certified.
Get a Quick Quote for a ABB 7BAFM3530
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAFM3530?
Enquire Now
FAQs
This motor uses a foot-mounted horizontal F1 orientation with a 143TZ frame and TEAO enclosure, designed for direct-on-line starting. Ensure your base aligns with standard 143TZ mounting patterns, supply voltage of 208-230/460V, and a three‑phase 60 Hz power source. Confirm the enclosure and cooling path suit the dust and moisture levels typical of farming environments to maintain long-term reliability.
Expect 3450 rpm synchronous speed with a 1.15 service factor, insulation class B, and a rated current of approximately 4.9 A (higher voltages) or lower at other voltages. Efficiency is rated around IE1 with a power factor near 74%. These values support stable airflow and consistent aeration performance while controlling energy consumption in farm applications.
Yes. The motor carries CSA and UR certifications per the additional information, reflecting compliance with relevant North American electrical safety standards. This helps simplify procurement for regulated applications and supports assembly and service in facilities that require recognized certifications for motor installations.
The 7BAFM3530 is stocked at multiple warehouses with active product status, reducing lead times and supply risk. Warranty terms indicate standard coverage with a return policy for warranty-related issues. Given ABB’s global service network and Baldor-Reliance lineage, access to spare parts, technical support, and field service remains robust across regions.
The motor’s TEAO design and regenerative energy performance contribute to lower cooling requirements and reduced maintenance compared with enclosed solutions. The lubrication is listed as regreasable, supporting longer intervals between servicing. A 1.15 service factor and 80% rated efficiency help lower energy costs, while its compatibility with 208-230/460V across a 60 Hz supply minimizes wiring changes and downtime during upsizing or replacement projects.
