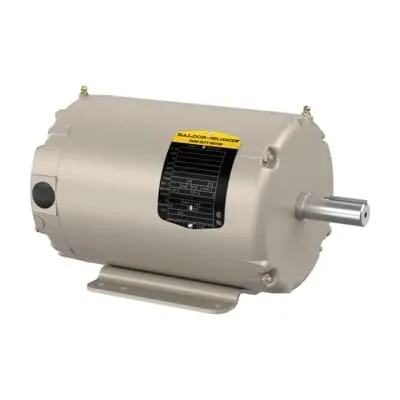

ABB 7BAFM3532 Farm Duty Motor - 3HP TEAO CSA/UR
Part Number: 7BAFM3532
Quick Summary
ABB 7BAFM3532 Farm Duty Motor is a reliable 3 HP motor designed for agricultural equipment and aeration systems. When uptime matters, choosing a motor that matches 208-230/460 V and 60 Hz in dusty, outdoor farm environments can be challenging. This model carries CSA and UR certifications and aligns with NEMA standards, supporting safe, compliant operation. With TEAO enclosure, foot mounting, and a 145T frame, it offers installation flexibility and predictable maintenance costs for OEMs and service teams.
Product Information
Extended Description
7BAFM3532 ABB: Farm Duty Motor 3 Hp 208 V (AFM3532)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,145T,3528M,TEA
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AFM3532
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYT908: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE1 | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
AFM3532
Gross Volume
3496.049 in³
Gross Weight
45 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
3HP,3450RPM,3PH,60HZ,145T,3528M,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Aeration Fan, 3 HP, 3600 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (AFM3532)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
89 %
Product Name
Aeration Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
45 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.1 A | 7.6 A | 3.8 A
Rated Efficiency
82.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 145T, Standard, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
K
Voltage Rating
208 V | 230 V | 460 V
Power and voltage flexibility is a defining feature. It delivers 3 HP at 208-230/460 V with 60 Hz three-phase operation, simplifying electrical planning and reducing inventory complexity. This makes it well suited for aeration fans, farm conveyors, and irrigation pumps deployed in variable voltage environments. TEAO enclosure and a 145T frame deliver reliable cooling and installation flexibility. Reduced maintenance and simplified mounting cut downtime and total cost of ownership. Application examples include outdoor farm equipment like aeration fans and feed conveyors that benefit from compact, standard mounting and easy serviceability. Foot-mounted, horizontal F1 mounting with direct-on-line starting is a practical feature. It enables fast installation and reliable startup without special soft-start hardware, reducing project timelines. Application scenarios include industrial aeration fans, conveyors, and pump assemblies in farm facilities. Regreasable bearings (6205 ball) extend service life and simplify maintenance. This reduces unscheduled outages and extends maintenance intervals, particularly in dusty environments. Farm-duty motors in barns and fields gain reliability and lower lifecycle costs. IE1 efficiency and a 3450 r/min rating provide stable performance and energy efficiency. This supports regulatory energy targets and reduces operating costs for continuous airflow and water handling in agricultural settings. Stocked at multiple warehouses with 0-day lead times. This ensures rapid fulfillment, minimizes downtime, and supports project timelines in OEM assemblies and service contracts.
Get a Quick Quote for a ABB 7BAFM3532
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAFM3532?
Enquire Now
FAQs
Yes. The ABB 7BAFM3532 is designed for 208-230V or 460V three-phase power at 60 Hz, providing flexibility for mixed-voltage farm installations. Its TEAO enclosure and 145T frame support straightforward mounting as a foot-mounted, horizontal unit (F1), enabling quick field integration and consistent performance across voltage configurations.
The motor offers IE1 efficiency with a rated speed of 3450 r/min and a synchronous speed of 3600 r/min. It delivers 3 HP continuous output and is designed for single-speed operation, which helps simplify drive calculations, motor sizing, and energy budgeting for continuous farm-duty applications such as aeration fans and conveyors.
Absolutely. The 3 HP, 60 Hz, three-phase ABB 7BAFM3532 is explicitly marketed as a farm-duty motor with TEAO enclosure, making it well-suited for aeration fans, irrigation pumps, and related farm equipment. Its 145T frame, foot mounting, and rugged bearings support reliable operation in outdoor, dusty farm environments while maintaining serviceability.
This model carries CSA and UR certifications and aligns with NEMA standards, which helps meet regulatory and safety requirements for industrial and agricultural installations. Certification ensures safer electrical practices, compatibility with regulatory audits, and peace of mind when integrating with other certified components in OEM and maintenance projects.
Warranty guidance indicates products under warranty must be returned, so plan to manage returns through your supplier if issues arise. The motor uses regreasable bearings (6205 Ball) for extended life and easier maintenance, and its stock availability across warehouses with zero lead time minimizes downtime and supports fast field service or OEM kit replenishment.
