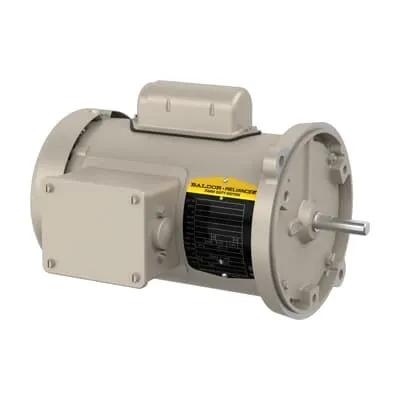

ABB ANFL3504M Farm Duty Motor - TEFC Enclosure
Part Number: 7BANFL3504M
Quick Summary
ABB ANFL3504M Farm Duty Motor powers auger drives and grain handling equipment with reliable, low-maintenance performance. Farm operators often face downtime and overheating during peak harvest, reducing throughput and increasing service costs. Built to CSA/UR certification standards with a TEFC enclosure and a NEMA design, this motor meets demanding industry requirements and environmental conditions in dusty barns and outdoor installations. This solution supports efficient 0.5 HP drives at 115/230 V, reducing wiring complexity, startup current, and maintenance costs, while ensuring robust performance in farm facilities. The compact form factor and single-phase 60 Hz supply enable straightforward retrofits and quick integration with existing auger systems.
Product Information
Extended Description
7BANFL3504M ABB: Farm Duty Motor 0.5 Hp 115 V (ANFL3504M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,1PH,60HZ,48YZ,3421L,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ANFL3504M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYH317: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
56N
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
ANFL3504M
Gross Volume
2110.969 inÂł
Gross Weight
28 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.5HP,1725RPM,1PH,60HZ,48YZ,3421L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Auger Drive, 0.5 HP, 1800 RPM, Frame Size 48Yz, 56N Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (ANFL3504M)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
66 %
Product Name
Auger Drive
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
28 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.4 A | 3.7 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.5 in
Short Description
0.5 HP, 1800 RPM, Frame Size 48Yz, 56N, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature: Farm Duty motor is designed for auger drives in agricultural settings. Business Impact: delivers consistent torque at 0.5 HP with 1725 RPM, enabling reliable operation of grain augers and feed conveyors while minimizing startup surges. Application: ideal for single-phase 115/230 V power supplies in farm buildings and outdoor installations. Feature: TEFC enclosure and NEMA design provide rugged protection in dusty, humid farm environments. Business Impact: reduces the risk of contamination and downtime, extending bearing life and reducing maintenance cycles. Application: perfect for grain handling, auger feeds, and other agricultural equipment subject to particulate exposure. Feature: CSA and UR certification alongside standard NEMA compliance. Business Impact: simplifies procurement and helps meet regulatory requirements in food processing and agricultural facilities. Application: fits with supplier qualification programs and cross-brand compatibility across ABB and Baldor-Reliance equipment. Feature: Compact frame 48YZ with horizontal mounting and 56N drive end flange supports straightforward retrofits. Business Impact: lowers installation time, reduces hardware changes, and enables quick alignment with existing belts and couplings. Application: auger drives and mixing equipment where space is constrained. Feature: Regreasable bearings and 0.5 HP rating at 60 Hz with TEFC; 1-phase operation. Business Impact: minimizes long-term maintenance and downtime; Application: continuous-duty farm operations with predictable service intervals.
Get a Quick Quote for a ABB 7BANFL3504M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BANFL3504M?
Enquire Now
FAQs
To install the ABB ANFL3504M in a single-phase auger drive, mount the 48YZ frame horizontally using the 56N drive end flange, connect to a 115/230 V, 60 Hz supply, and use Direct On Line startup for immediate operation. Its TEFC enclosure and compact base simplify retrofits, while protection against dust and moisture reduces maintenance needs.
Key electrical specs include 0.5 HP, 1725 rpm, 1 phase, 115/230 V, 60 Hz; rated current 7.4 A or 3.7 A depending on voltage, with a power factor around 66%. These figures support predictable startup, wiring selection, and reliable performance for typical auger systems.
Yes. The TEFC (Totally Enclosed Fan C cooled) enclosure protects internal windings from dust, moisture, and particulates common in grain handling and barns. Combined with a rugged NEMA-compliant design, it reduces ingress, extends bearing life, and lowers maintenance frequency in harsh farm environments.
Absolutely. CSA/UR certifications verify safety and compliance for regulated facilities, while NEMA standards ensure compatibility with common electrical and motor mounting practices. This simplifies vendor qualification, cross-brand interchangeability, and reduces procurement risk when sourcing auger drive motors.
Regreasable bearings enable scheduled lubrication with minimal disassembly, extending bearing life and uptime. Combined with a robust 0.5 HP, single-phase design, you can expect reduced maintenance cycles, lower downtime, and a favorable total cost of ownership for seasonal operations and continuous-duty farm use.
