ABB 7BANFL3507M Motors & Drives - CSA UR
Part Number: 7BANFL3507M
Quick Summary
ABB 7BANFL3507M motor is designed for auger drives in agricultural equipment, delivering reliable 0.75 HP performance at 115 V. Farm teams often struggle with mismatched power, uptime, and maintenance costs when selecting single‑phase motors; this model matches 115/230 V, 60 Hz operation to simplify installs and reduce downtime. CSA and UR certified with a TEFC enclosure and a NEMA‑style frame, it supports rugged, dusty farm environments while meeting safety and regulatory requirements. Backed by Baldor‑Reliance heritage and stocked across key regions, it offers predictable lead times and easy procurement, helping reduce total cost of ownership in production lines and field deployments.
Product Information
Extended Description

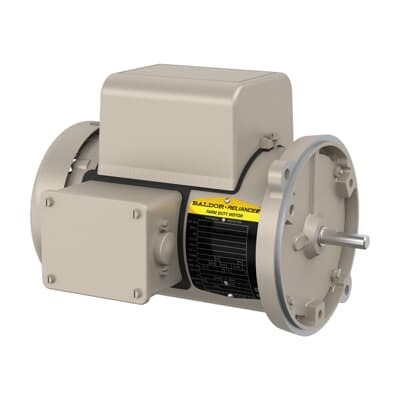

7BANFL3507M ABB: Farm Duty Motor 0.75 Hp 115 V (ANFL3507M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,48YZ,3428LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ANFL3507M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYM899: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
56N
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
ANFL3507M
Gross Volume
2110.969 in³
Gross Weight
34 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,1725RPM,1PH,60HZ,48YZ,3428LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
Auger Drive, 0.75 HP, 1800 RPM, Frame Size 48Yz, 56N Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (ANFL3507M)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
80 %
Product Name
Auger Drive
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
34 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.2 A | 4.1 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
RoHS Information
RoHS Exempt
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.5 in
Short Description
0.75 HP, 1800 RPM, Frame Size 48Yz, 56N, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The motor’s 0.75 HP output at 1725 rpm delivers sufficient torque for auger drive systems, reducing the risk of stalling in grain handling or feed processing, which translates to fewer downtime events and higher throughput in farm equipment. The single‑phase 115/230 V, 60 Hz electrical profile simplifies wiring, enables faster installation, and lowers panel complexity, improving overall installation time and energy efficiency in remote sites. TEFC (Totally Enclosed Fan C cooled) enclosure protects against dust and moisture commonly found in agricultural environments, reducing maintenance cycles and extending service intervals for hay bale conveyors and augers. The frame size 48YZ with a 56N drive end flange ensures compatibility with standard farm‑duty mounting footprints, enabling straightforward retrofits and upgrades. Regreasable lubrication supports longer life in variable duty cycles, lowering maintenance costs and bolstering uptime for irrigation augers and grain augers. The 1.25 service factor provides headroom for startup surges and load variations typical in crop handling, promoting reliable performance under peak harvesting conditions. Stock availability from multiple warehouses helps procurement teams meet tight project timelines and minimize stockouts in seasonal operations.
Get a Quick Quote for a ABB 7BANFL3507M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BANFL3507M?
Enquire Now
FAQs
The motor uses horizontal mounting with a Form F1 arrangement, a 56N drive end flange, and a 48YZ frame size, ensuring compatibility with standard auger and farm equipment installations.
Yes. It is a farm-duty motor rated at 0.75 HP, compatible with 115 V or 230 V supply at 60 Hz, designed for single-phase operation and robust agricultural use.
It operates on 1 phase at 115 V or 230 V, 60 Hz, with a rated current of 8.2 A at 115 V and 4.1 A at 230 V, and a speed of 1725 r/min on a 48YZ frame.
The motor carries CSA and UR certifications, features a TEFC enclosure, and aligns with NEMA‑style design standards, supporting safe operation in agricultural environments.
With regreasable lubrication and a rugged TEFC enclosure, the motor requires less frequent maintenance in dusty conditions. Its 1.25 service factor and straightforward wiring reduce startup risk and enable reliable uptime in farm equipment like augers and conveyors.
