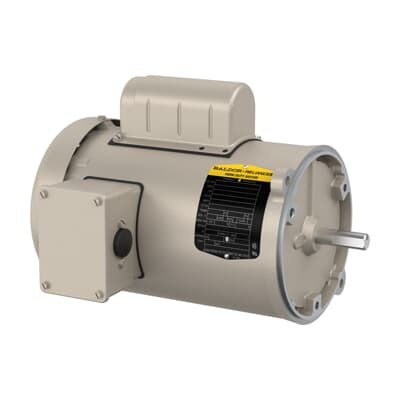

ABB 7BANFL3510M FarmDuty Motor - 1HP, TEFC (CSA UR)
Part Number: 7BANFL3510M
Quick Summary
ABB 7BANFL3510M FarmDuty Motor is a rugged, single-phase 1 HP drive solution for auger systems and small agricultural equipment. Engineers often struggle with downtime from voltage mismatches, overheating, and maintenance-heavy motors. This design addresses those challenges with a TEFC enclosure, a resilient 56YZ frame, and a 1-phase, 60 Hz voltage range that supports reliable operation in field conditions. CSA and UR certifications ensure regulatory compliance for North American installations, while NEMA L and UL-listed features reinforce electrical safety. For businesses, the combination of compact size and straightforward installation translates to reduced wiring complexity, easier stocking, and faster maintenance planning, enabling steadier production and lower total cost of ownership.
Product Information
Extended Description
7BANFL3510M ABB: Farm Duty Motor 1 Hp 115 V (ANFL3510M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1740RPM,1PH,60HZ,56YZ,3524L,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ANFL3510M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYQ142: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
56N
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
ANFL3510M
Gross Volume
3496.049 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1740RPM,1PH,60HZ,56YZ,3524L,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Auger Drive, 1 HP, 1800 RPM, Frame Size 56Yz, 56N Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (ANFL3510M)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
73 %
Product Name
Auger Drive
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
67 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35Q142G385
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56Yz, 56N, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
L
Voltage Rating
115 V | 230 V
Dual voltage and power flexibility: 115 V | 230 V operation at 60 Hz and 1 HP output allow seamless integration with existing plant power without costly rewiring. This reduces upfront capital and accelerates commissioning in auger drives and feed conveyors used in farm facilities. Robust TEFC enclosure and durable 56YZ frame protect internal components in dusty environments, simplifying maintenance and prolonging service life for grain handling and livestock operations. Direct On Line starting with a 4-pole design delivers quick torque for startup, minimizing stall conditions in compact drive trains used in conveyors and auger assemblies. The compact, footless base with horizontal mounting and a 56N drive-end flange provides easy alignment with standard Baldor/Reliance components, reducing installation time and field adjustments. Regreasable bearings (6203) and a 0.63 in shaft support long-life operation in demanding agricultural settings while lowering replacement costs. With a 1.15 service factor and 67% efficiency, you gain measurable throughput improvements and energy savings across high-cycle farm tasks. This motor’s specifications are tailored for reliable auger performance and low-maintenance operation in dairy, poultry, and grain handling facilities.
Get a Quick Quote for a ABB 7BANFL3510M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BANFL3510M?
Enquire Now
FAQs
ABB 7BANFL3510M is a 1 HP single-phase farm-duty motor designed for auger drives and related equipment. It operates at 115 V or 230 V with a 60 Hz supply and features a TEFC enclosure, 56YZ frame, 4-pole construction, and Direct On Line starting. The nominal speed is 1725 r/min with a synchronous 1800 r/min rating, and it carries a service factor of 1.15 and an efficiency around 67%. This makes it suitable for continuous farm tasks such as grain augers, feed conveyors, and manure pumps. The motor is CSA and UR certified, with NEMA L and UL safety considerations, offering robust reliability in dusty, demanding environments. Versatile mounting options and ease of maintenance further support fast, cost-effective deployments.
Installation is straightforward with a horizontal mounting position (F1) and a footless base. The motor uses a 56N drive-end flange and a 0.63 in shaft, compatible with common auger shafts. Direct On Line starting and a TEFC enclosure simplify commissioning, while the 56YZ frame aligns with Baldor/Reliance drive components for quick, reliable alignment.
Yes. The ABB 7BANFL3510M carries CSA and UR certification for North American compliance, and it uses a NEMA-design code L with TEFC enclosure for rugged farm-duty service. Its rating as a 1HP, 1800 RPM (1725 nominal) motor aligns with common farm equipment standards, while the UL-listed design supports safe, reliable operation.
This motor runs from 115 V or 230 V at 60 Hz with a 1-phase supply and 4 poles, delivering 1 HP at 1725 r/min. It offers a service factor of 1.15, efficiency around 67%, and a current rating of 13 A (nominal) with a 56YZ frame and TEFC enclosure, suitable for continuous farm duty.
The motor uses regreasable bearings (6203 ball) and requires minimal lubrication intervals, reducing downtime. Its 1 HP rating and high service factor support efficient auger performance, and the compact 56YZ frame eases mechanical integration. With stock available in multiple warehouses and zero-day lead time, businesses can minimize capital tied up and accelerate ROI.
