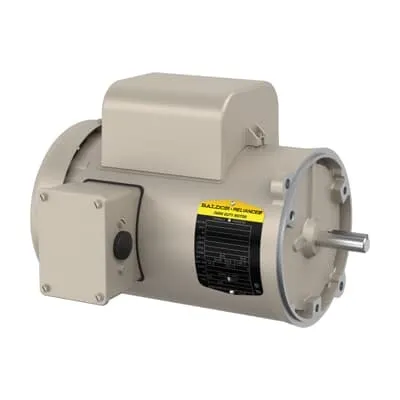

ABB 7BANFL3514M Auger Drive - 1.5HP, 1800RPM, 60Hz, TEFC
Part Number: 7BANFL3514M
Quick Summary
ABB 7BANFL3514M Auger Drive is a farm-duty motor designed to power augers in agricultural processing and grain handling. Farmers and maintenance teams often contend with downtime and variable performance that disrupt harvests and productivity. This model carries CSA and UR certifications and aligns with NEMA design standards, offering reliable electrical safety and interoperability across US and international markets. As a reliable, single-phase motor with TEFC enclosure, 1.5 HP output and 60 Hz operation, it reduces installation complexity and lifecycle costs. Designed for farm environments, it tolerates ambient temperatures up to 40 °C and can operate at altitudes up to 1000 m, reducing field service calls. With a compact 56YZ frame and footless base, it aligns with common auger assemblies for straightforward retrofits.
Product Information
Extended Description
7BANFL3514M ABB: Farm Duty Motor 1.5 Hp 115 V (ANFL3514M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1750RPM,1PH,60HZ,56YZ,3532LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ANFL3514M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYR216: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
56N
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
ANFL3514M
Gross Volume
3496.049 in³
Gross Weight
49 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1750RPM,1PH,60HZ,56YZ,3532LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
Auger Drive, 1.5 HP, 1800 RPM, Frame Size 56Yz, 56N Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (ANFL3514M)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56YZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
73 %
Product Name
Auger Drive
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
49 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
18 A | 9 A
Rated Efficiency
75.50 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56Yz, 56N, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
J
Voltage Rating
115 V | 230 V
TEFC enclosure protects windings from dust and moisture, significantly extending maintenance intervals and reducing unplanned downtime in rugged farm environments. The robust protection minimizes field service calls on auger drives exposed to grain dust, chaff, and outdoor weather. In practice, this means fewer stoppages during harvest and more predictable production planning. With 1PH 60Hz operation and selectable 115/230V input, the drive simplifies wiring and power management across diverse farm sites, delivering faster retrofits and lower upfront installation costs. Frame size 56YZ and a footless base support straightforward integration with standard auger assemblies and drive shafts, reducing mounting fabrication. The 56N drive end flange aligns with common gearbox interfaces, enabling reliable torque transfer and easier maintenance. Direct On Line starting delivers instant torque, minimizing startup stress on electrical systems while matching the 1.5 HP rating and 1725 r/min nominal speed. CSA and UR certifications, together with NEMA design alignment, support regulatory compliance and cross-market interoperability. The design favors farm-duty cycles with regreasable bearings and a robust 0.63 in shaft, delivering long service life with minimal downtime.
Get a Quick Quote for a ABB 7BANFL3514M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BANFL3514M?
Enquire Now
FAQs
This model uses a 56YZ frame with a 56N drive end flange and a footless base, aligning with common auger drives. It supports horizontal mounting (F1) and standard gearbox interfaces, making retrofits straightforward. Ensure your auger housing and shaft diameter match 0.63 in to maintain proper coupling and torque transfer.
Key specs include 1.5 HP output at 1725 r/min with a synchronous speed of 1800 r/min, 115/230 V single-phase input at 60 Hz, a rated current of 18 A (9 A at half-load), and a TEFC enclosure. The shaft diameter is 0.63 in, and the motor uses regreasable bearings for longer service life.
Yes. The 1.5 HP, 60 Hz farm-duty design is optimized for auger drives in grain handling and feed systems. Its TEFC enclosure protects against dust and moisture, while the single-phase supply simplifies site wiring. The 1725 r/min rated speed provides consistent auger throughput with reliable starting under typical farm loads.
The ABB 7BANFL3514M is CSA and UR certified and designed in accordance with NEMA standards. This combination supports electrical safety, regulatory compliance, and cross-border interoperability, which is important for maintenance programs and multi-site deployments.
With a TEFC enclosure and regreasable bearings, maintenance intervals are extended and downtime is reduced. The motor’s efficiency and 1.5 HP rating help balance energy costs with throughput. Direct On Line starting minimizes startup hardware requirements and simplifies service in farm environments, contributing to a favorable total cost of ownership over the motor’s life.
