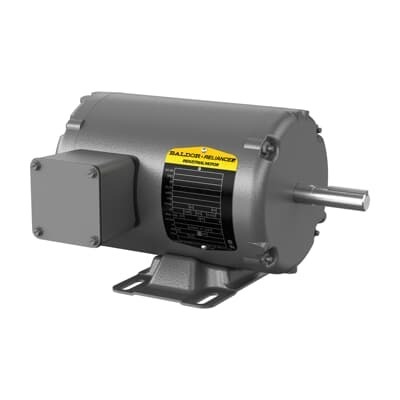

ABB 7BAOM3535 HVAC Motors - TEAO Enclosure 0.33 HP
Part Number: 7BAOM3535
Quick Summary
ABB 7BAOM3535 HVAC Motors deliver reliable 0.33 HP three‑phase power for HVAC fans and blowers. This solution addresses the common challenge of finding a compatible, ready-to-install motor with minimal lead time and predictable performance. It carries CSA and UR certifications with a NEMA Design Code B footprint and TEAO enclosure, supporting safe operation in regulated environments. As a compact, US-origin motor with a 56 frame and 60 Hz three‑phase design, it also aligns with standard HVAC equipment while reducing installation time and lifecycle costs. Ideal for engineers seeking dependable motors that integrate smoothly with existing systems and procurement workflows.
Product Information
Extended Description
7BAOM3535 ABB: HVAC Motors 0.33 Hp 208 V (AOM3535)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1140RPM,3PH,60HZ,56,3414M,TEA
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AOM3535
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LYT045: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
AOM3535
Gross Volume
1400.25 in³
Gross Weight
22 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.33HP,1140RPM,3PH,60HZ,56,3414M,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 56, Standard Mounting, 3 Phase, TEAO Enclosure, (AOM3535)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
51 %
Product Name
HVAC Motors
Product Net Depth / Length
13.813 in
Product Net Height
9.375 in
Product Net Weight
22 lb
Product Net Width
10.813 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.9 A | 1.8 A | 0.9 A
Rated Efficiency
70 %
Rated Speed
1140 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
Frame Size 56, Standard, 3 PH, TEAO,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: The 56 frame, TEAO enclosure and 0.33 HP output deliver a compact, easy‑to‑mount package that fits standard HVAC assemblies, reducing installation time and retrofit costs in commercial buildings. This translates to faster commissioning and lower field labor, especially when replacing aging motors in air handling units or rooftop fans. Feature → Business Impact → Application: 60 Hz three‑phase input with 208/230/460 V compatibility supports versatile US and international deployments, enabling cross‑site standardization and simplified spare parts planning for facilities with mixed equipment. Feature → Business Impact → Application: Regreasable bearings (6203) and insulation class F improve reliability in warm environments (ambient up to 40 °C), decreasing unplanned downtime and maintenance cycles for critical cooling systems. Feature → Business Impact → Application: Direct On Line starting and a robust steel frame with NEMA Design Code B designation minimize startup torque concerns and ensure long service life in continuous duty HVAC service. Feature → Business Impact → Application: Synchronous speed of 1200 r/min and rated speed of 1140 r/min provide predictable fan performance and system balance, helping engineers optimize belt drives, airflow, and energy efficiency. Feature → Business Impact → Application: Stocked at warehouses in the US and internationally with zero‑day lead times improves spare‑parts availability and reduces site downtime, a critical advantage for large facilities and data centers. Feature → Business Impact → Application: 0.33 HP output coupled with a 1.0 service factor supports reliable performance under typical HVAC load profiles while keeping motor sizing aligned with standard drive systems and drive end flange compatibility.
