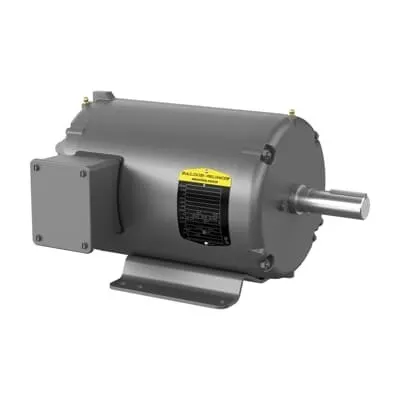

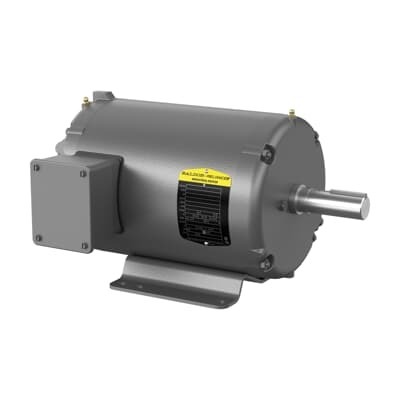

ABB 7BAOM3614T Air-Over Fan - 2HP, 60Hz, TEAO - CSA UR
Part Number: 7BAOM3614T
Quick Summary
Air-Over Fan is ABB's 2 HP cooling solution designed for industrial equipment and control panels. In tight spaces and rugged environments, quick installation and reliable uptime matter more than ever. CSA and UR safety listings, a TEAO enclosure, and NEMA design compliance help you meet regulatory requirements and minimize risk. With stock at multiple warehouses and a 0 day lead time, you gain faster project responsiveness, simplified sourcing, and lower total cost of ownership. Coupled with 60 Hz operation, a 184T frame, and standard mounting, it delivers predictable cooling performance for automation panels and machinery.
Product Information
Extended Description
7BAOM3614T ABB: Air-Over Fan 2 Hp 208 V (AOM3614T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1160RPM,3PH,60HZ,184T,3628M,TEA
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
AOM3614T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYG256: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE1 | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
AOM3614T
Gross Volume
3496.049 in³
Gross Weight
63 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1160RPM,3PH,60HZ,184T,3628M,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Air-Over Fan, 2 HP, 1200 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (AOM3614T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
68 %
Product Name
Air-Over Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
63 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.9 A | 6.8 A | 3.4 A
Rated Efficiency
81.50 %
Rated Speed
1160 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 184T, Standard, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
J
Voltage Rating
208 V | 230 V | 460 V
Feature: 2 HP output with a rated speed of 1160 r/min, designed for 3-phase 60 Hz systems and a voltage range of 208-230/460 V. Impact: Delivers robust cooling performance for compact installations without stressing drive components. Application: ideal for enclosure cooling in automation panels and machine bays where space is limited. Feature: TEAO enclosure (Totally Enclosed Air Over) with frame size 184T and foot-mounted design. Impact: Protects windings from dust and debris, reducing maintenance and extending service life. Application: suitable for dusty factory environments and cabinet cooling in process automation. Feature: Regreasable bearings and maintenance-friendly lubrication. Impact: Lowers routine maintenance costs and downtime with longer service intervals. Application: continuous-duty conveyors and packaging lines where uptime is critical. Feature: Direct On Line starting and simple electrical profile (3-phase, 60 Hz). Impact: Simplifies control architecture and reduces initial costs while enabling quick motor startups. Application: plug-and-play replacement in existing ABB/Baldor-Reliance installations. Feature: Robust mechanical design with foot-mounted base, shaft diameter 1.13 in, and frame size 184T. Impact: Streamlines retrofits and field service with standardized mounting and balanced performance. Application: machine cooling and enclosure ventilation across heavy-duty equipment.
Get a Quick Quote for a ABB 7BAOM3614T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BAOM3614T?
Enquire Now
FAQs
Install as a foot-mounted unit with horizontal mounting in the F1 position using the standard Drive End Flange. Connect for 3-phase 60 Hz operation at 208-230/460 V. Ensure mounting clearance per TEAO guidelines and verify shaft diameter of 1.13 in for coupling compatibility. Direct-on-line starting simplifies control wiring and minimizes additional hardware.
The motor is a 2 HP, 1160 r/min, 3-phase unit rated for 60 Hz and a voltage range of 208-230/460 V. It draws about 6.9 A nominal current, has a power factor around 68%, and an efficiency of 81.5%. The design uses an IE1 efficiency class and insulation class F, suitable for continuous duty in industrial environments.
Yes. With TEAO enclosure, frame size 184T, and 2 HP output, the 7BAOM3614T is optimized for enclosure cooling in control cabinets and machine panels. Its airflow characteristics at 1160 r/min provide reliable heat removal, while the compact footprint and standard mounting simplify integration with existing panels and ductwork.
The unit carries CSA and UR safety listings and complies with NEMA design standards. It is listed under catalog number AOM3614T and supports a TEAO enclosure suitable for industrial environments. These certifications help ensure regulatory compliance, safety, and reliability in manufacturing and processing facilities.
Lead time is listed as 0 day with stock at multiple warehouses, including US and international locations. This availability supports rapid procurement, faster project execution, and a clearer ROI by reducing downtime and excluding long sourcing delays. Minimum order quantity is 1 piece, with standard warranty terms applicable.
