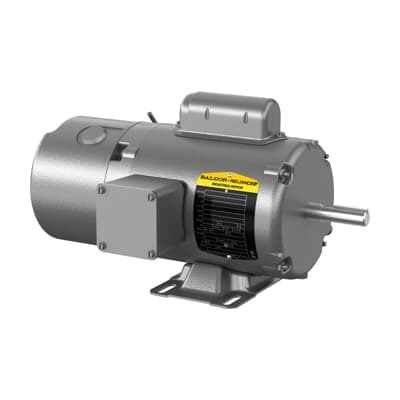

ABB 7BBL3516 Unit Handling Motors - BRAKE, 1PH 60Hz
Part Number: 7BBL3516
Quick Summary
ABB 7BBL3516 Unit Handling Motors deliver compact power for automated material handling in packaging and warehouse systems. Engineers often wrestle with space constraints, brake integration, and inconsistent performance in tight automation footprints. This drive family carries CSA and UL Recognized certifications and aligns with NEMA design standards to simplify compliance across North American installations. Designed to reduce total cost of ownership, it supports easy 115/230V operation and dependable brake-enabled control, while the robust Baldor-Reliance branding reinforces reliability across industrial applications. With a 0.25 HP rating and 1725 RPM, these motors deliver steady torque for conveyors and feeders, reducing cycle times and energy use. Stock availability across multiple warehouses minimizes downtime during line changeovers.
Product Information
Extended Description
7BBL3516 ABB: Unit Handling Motors 0.25 Hp 115 V (BL3516)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.25HP,1725RPM,1PH,60HZ,56,BRAKE,341
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance®
Catalog Number
BL3516
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
N
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
BL3516
Gross Volume
2136.75 in³
Gross Weight
27 lb
Horsepower Rating UL/CSA
0.250 Hp
IC Class
TENV
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.25HP,1725RPM,1PH,60HZ,56,BRAKE,3414L
Lubrication
Regreasable
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.25 Hp
Power Factor
63 %
Product Name
Unit Handling Motors
Product Net Depth / Length
18.5 in
Product Net Height
11 in
Product Net Weight
27 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.2 A | 2.1 A
Rated Efficiency
59.50 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Voltage Code
K
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: Brake Present enhances load retention and safety in conveyors and sorters, reducing risk and shutdowns while enabling controlled stopping during handling operations. This translates to improved line safety, predictable cycle times, and easier compliance with workplace safety standards in warehousing and parcel handling. Feature → Business Impact → Application: 0.25 HP, 1725 RPM delivers reliable, compact torque for small- to mid-sized unit handling tasks, enabling faster throughput on carton conveyors and parts feeders without oversizing the drive. Application: packaging lines and automated assembly feeders benefit from steady performance and reduced capital cost. Feature → Business Impact → Application: Flexible voltage rating 115 V / 230 V supports mixed facility power environments, streamlining installation across multiple plants and reducing stocking complexity. Application: North American facilities with varied power availability. Feature → Business Impact → Application: Foot-mounted, horizontal F1 mounting and standard 56 frame size provide straightforward integration into existing frames, minimizing retrofit work and enabling quick field installation. Application: small automation cells and palletizing stations where space is at a premium. Feature → Business Impact → Application: Direct on line starting reduces electrical complexity and installation time, improving startup reliability on new lines and during line changes. Application: simple conveyor and feeder drives. Feature → Business Impact → Application: Regreasable lubrication and durable 6203 ball bearings extend service intervals, lowering maintenance costs and downtime in high-cycle environments. Application: continuous operation in automated handling systems. Feature → Business Impact → Application: NEMA design compatibility and standard certification support regulatory compliance, speeding procurement cycles and supplier qualification for North American OEMs. Application: integrated motors for standardized equipment builds.
Get a Quick Quote for a ABB 7BBL3516
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BBL3516?
Enquire Now
FAQs
This motor is designed for foot-mounted, horizontal mounting (F1) with a 56 frame size and direct on line starting. It supports both 115 V and 230 V single-phase power, making it suitable for North American facilities with varying electrical setups. Stocked at multiple warehouses minimizes downtime during installations.
Key specs include 0.25 HP output, 1725 rpm rated speed, single-phase 60 Hz operation, and a 0.63 inch shaft diameter. The brake is integrated for load retention, and the motor uses Regreasable lubrication with 6203 ball bearings, delivering reliable uptime on small-to-mid sized conveyors and feeders.
Yes. The motor’s brake-enabled, compact design, along with its NEMA-compatible frame and 1-phase 60 Hz operation, makes it ideal for carton conveyors, part feeders, and pick-and-place cells where precise stopping and dependable performance are required.
This motor carries CSA | UR certification and aligns with NEMA design standards, supporting regulatory compliance for North American installations. Always confirm local electrical codes and customer-specific safety requirements when integrating into automated lines.
With Regreasable lubrication and durable bearings, maintenance intervals are extended, reducing downtime and service costs. The motor’s stock-ready availability across multiple warehouses shortens lead times, improving line uptime and overall return on investment in automated handling equipment.
