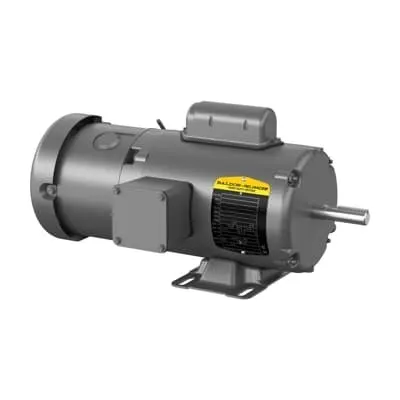

ABB 7BBL3517 Unit Handling Motors - 0.33 HP CSA UR
Part Number: 7BBL3517
Quick Summary
ABB 7BBL3517 Unit Handling Motors deliver compact, 0.33 HP power for unit handling, conveyors, and light automation applications. In tight installations, reliability, serviceability, and 115 V compatibility are often the deciding factors, and this model is designed to meet those needs. The unit carries CSA and UR safety certifications and adheres to a NEMA design standard with TEFC enclosure, ensuring protection in demanding environments. With a foot-mounted, 56 frame, and 1725 rpm configuration, it integrates smoothly into existing motor bases and control panels. This combination supports efficient procurement, predictable maintenance, and scalable performance for industrial motors in modern material-handling lines.
Product Information
Extended Description
7BBL3517 ABB: Unit Handling Motors 0.33 Hp 115 V (BL3517)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1725RPM,1PH,60HZ,56,BRAKE,341
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance®
Catalog Number
BL3517
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
BL3517
Gross Volume
2136.75 in³
Gross Weight
27 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.33HP,1725RPM,1PH,60HZ,56,BRAKE,3414L
Lubrication
Regreasable
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
60 %
Product Name
Unit Handling Motors
Product Net Depth / Length
18.5 in
Product Net Height
11 in
Product Net Weight
27 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6 A | 3 A
Rated Efficiency
60 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.35
Service Factor Percentage
1.35 %
Shaft Diameter
0.63 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The ABB 7BBL3517 runs on a 115 V single-phase supply, simplifying electrical design and reducing distribution costs, while delivering predictable energy use for conveyors and small automation lines. This translates to lower total cost of ownership and easier panel integration, especially in legacy systems that rely on standard 115 V service. Application: ideal for compact unit handling equipment requiring quick installation and reliable start-up in packaging, sorting, and small-scale material handling. Feature → Business Impact → Application: Brake presence ensures precise stopping and positioning, reducing misfeeds and improving throughput on belt and chute conveyors. This capability supports safer operation in high-cycle automation environments and eases integration with downstream sensors and controllers. Application: precision stop-and-hold tasks in packaging lines and order-fulfillment conveyors. Feature → Business Impact → Application: Regreasable bearings and a TEFC enclosure minimize maintenance intervals and maximize uptime in dirty or dusty production floors. This reduces unscheduled downtime and service costs while extending motor life in industrial environments. Application: long-term reliability for continuous run conveyors and pick-and-place systems. Feature → Business Impact → Application: 56 frame, foot-mounted design with a 0.63 in shaft and horizontal mounting orientation provides a compact footprint that fits existing motor bases and control cabinets, accelerating installation and swap-outs. Application: retrofits and OEM applications where space is constrained and compatibility with standard bases is critical. Feature → Business Impact → Application: NEMA design compliance and CSA | UR certification deliver regulatory confidence for U.S. facilities and distributors, streamlining procurement, safety validation, and cross-site standardization. Application: industrial automation environments requiring consistent standards across multiple sites. Feature → Business Impact → Application: 1725 rpm at 60 Hz combined with a single-speed specification offers predictable performance for conveyors and material handling equipment, enabling stable line speeds and synchronization with driven equipment. Application: packaging lines, sorters, and unit-handling modules where consistent speed is essential.
