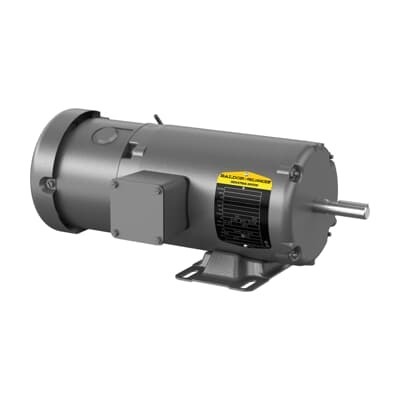

ABB 7BBM3543 Short Series Brake - 0.75HP, 60Hz, CSA/UR
Part Number: 7BBM3543
Quick Summary
ABB 7BBM3543 Short Series Brake provides reliable braking for 3-phase TEFC motors in conveyors and packaging lines. It addresses downtime from missed stops and rotor backspin by delivering precise torque and repeatable engagement. Certified for CSA and UR approvals, it supports compliant integration in North American installations, designed for 60 Hz operation and TEFC enclosure. This model fits frame size 56 with a foot-mounted base for straightforward installation, limiting misalignment during service. With a 0.75 HP rating and 1140 rpm, it aligns with common industrial drives, enabling compact, scalable solutions for growing automation needs. Its balanced design also supports easy service and parts availability across major North American warehouses.
Product Information
Extended Description
7BBM3543 ABB: Short Series Brake 0.75 Hp 208 V (BM3543)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1140RPM,3PH,60HZ,56,BRAKE,342
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
BM3543
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
34LY3108: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
BM3543
Gross Volume
3590.443 in³
Gross Weight
39 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
B
Invoice Description
.75HP,1140RPM,3PH,60HZ,56,BRAKE,3428M
Lubrication
Regreasable
Made To Order
No
Medium Description
Short Series Brake, 0.75 HP, 1200 RPM, Frame Size 56, Standard Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (BM3543)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
59 %
Product Name
Short Series Brake
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
39 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.3 A | 3 A | 1.5 A
Rated Efficiency
77 %
Rated Speed
1140 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1200 RPM, Frame Size 56, Standard, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
208 V | 230 V | 460 V
Voltage compatibility and footprint: The brake is designed for 208-230/460 V at 60 Hz, enabling a single part to cross multiple panels and drives, reducing wiring variants and stocking requirements. Business impact: lower procurement complexity and faster project commissioning for conveyor lines and packaging systems. Application: suitable for 3-phase motor drives in line applications where space and flexibility matter. Enclosure and mounting: TEFC enclosure with frame size 56 and foot-mounted, horizontal orientation simplifies installation in tight machines and preserves alignment under vibration. Business impact: improved reliability and reduced maintenance overhead; Application: horizontal mounting on standard base motors in material handling equipment. Performance and efficiency: Rated at 0.75 HP, 1140 r/min with a 1.15 service factor and 77% efficiency, delivering predictable stopping torque with minimal energy waste. Application: drives with moderate continuous duty in environments requiring consistent brake response. Reliability and serviceability: Regreasable lubrication and 6203 ball bearings extend service intervals, while a standard drive end flange supports quick swaps. Business impact: lower total cost of ownership and easier spare parts management. Application: maintenance teams can plan preventive service around defined wear patterns for long-running lines.
