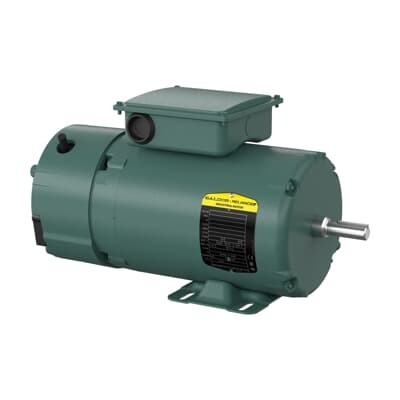

ABB 7BBNM3542-D D-Series Brake - CE/CSA/UR IP44
Part Number: 7BBNM3542-D
Quick Summary
D-Series Brake by ABB provides precise braking for 0.75 HP motors in 3‑phase drives. Many applications suffer from inconsistent stopping, misaligned cams, and unexpected downtime when braking force isn’t matched to load. This unit carries CE, CSA, and UR certifications for safety and compliance while supporting IP44 enclosure expectations in industrial environments. Designed for easy integration with Baldor-Reliance systems, it delivers reliable performance, minimizes maintenance, and lowers total cost of ownership. Factoring in 60 Hz operation and a 1765 r/min nominal speed, the brake aligns with standard motor packages for conveyors, machine tools, and packaging lines. With stock at multiple warehouses and transparent lead times, procurement teams gain faster project timelines.
Product Information
Extended Description
7BBNM3542-D ABB: D-Series Brake 0.75 Hp 208 V (BNM3542-D)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75/.55 KWHP,1765 1/MIN IP44 IC410
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
BNM3542-D
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX056: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
BNM3542-D
Gross Volume
5274.135 inÂł
Gross Weight
47 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F3
Insulation Class
F
Invoice Description
.75/.55 KWHP,1765 1/MIN IP44 IC410 19 KG
Lubrication
Regreasable
Made To Order
No
Medium Description
D-Series Brake, 0.75 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (BNM3542-D)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
D-Series Brake
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
47 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.36 A | 2.28 A | 1.14 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
208 V | 230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
