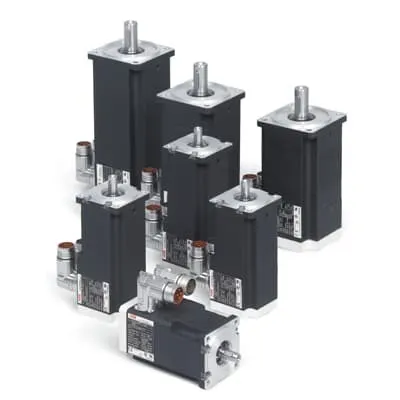

ABB 7BBSM100C-4250AA Servo Motors - RESOLVER CE CSA UR
Part Number: 7BBSM100C-4250AA
Quick Summary
ABB 7BBSM100C-4250AA servo motors power precise motion control for automated manufacturing and packaging lines. Engineers often struggle with integration delays, unreliable repeatability, and downtime when upgrading legacy drives. This solution carries CE, CSA, UR certifications with TUV and RoHS awareness to meet global safety and environmental standards. With resolver feedback and tight ABB BSM compatibility, you gain repeatable accuracy, faster deployment, and reduced lifecycle costs, making it ideal for high-demand applications in robotics, packaging, and machine tools.
Product Information
Extended Description
7BBSM100C-4250AA ABB: BSM100C-4250AA T'STAT, RESOLVER
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
BSM100C-4250AA T STAT, RESOLVER
Base Speed
1200 r/min
Certification Agency
CE | CSA | TUV | UR
Country of Origin
United States (US)
Customs Tariff Number
85013200
Enclosure Type
TENV
Frame Size
Undefined
Global Commercial Alias
BSM100C-4250AA
Gross Weight
27.467 kg
Invoice Description
BSM100C-4250AA T'STAT, RESOLVER
Made To Order
No
Maximum Peak Current
26.9 A
Maximum Speed
7,000 r/min
Minimum Order Quantity
1 piece
Number of Poles
8P
Order Multiple
1 piece
Product Name
BSM Servo Motors
Product Net Depth / Length
58.42 cm
Product Net Height
33.65 cm
Product Net Weight
27.467 kg
Product Net Width
31.75 cm
Product Type
BSM_C-Series
Quote Only
No
Rated Current (In)
10.6 A
Rated Torque
20.00 N·m
Replaced Product ID (OLD)
7BS4P124W111
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
UNSPSC
26101205
Voltage Rating
300 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Resolver feedback delivers high-precision closed-loop control, improving positioning accuracy and reducing runout in demanding automation tasks. The business impact is tangible: fewer scrap parts, lower process variance, and easier tuning on spindle and conveyor systems. This is particularly valuable in robotics and pick-and-place lines where small errors propagate quickly, and tight control is essential. The 8-pole design supports robust torque delivery, enabling up to 7,000 rpm maximum speed while maintaining smooth torque transitions, which translates to higher throughput on packaging and CNC-type setups. Base speed of 1,200 rpm provides stable torque at low to mid-range speeds, improving ramp profiles and energy efficiency in continuous operation. Certified RoHS and multiple safety marks simplify global compliance audits and cross-border installations, reducing risk during expansion. Stocked at multiple warehouses with zero lead time, the system is ready for fast deployment, minimizing downtime and project delays. The 300 V rating matches standard industrial drives, while a weight of 27.467 kg offers a solid, vibration-resistant mount for heavy-duty machines. Compatibility with the BSM servo family supports straightforward upgrades from older ABB servo motors and easier maintenance planning, with the warranty and return policy helping to manage risk. Industry-specific contexts such as packaging lines, automation cells, and robotics integrations benefit from reliable performance and predictable service life.
Get a Quick Quote for a ABB 7BBSM100C-4250AA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BBSM100C-4250AA?
Enquire Now
FAQs
The 7BBSM100C-4250AA is designed for seamless integration with ABB BSM servo drive ecosystems and common industrial drives standard in 300 V control architectures. Ensure your controller supports resolver feedback and compatible feedback interfaces; the motor’s 8-pole, 20 N·m torque profile aligns with mid-speed automation tasks, reducing rework during retrofit projects.
Key specs include base speed of 1200 r/min, maximum speed of 7000 r/min, rated torque of 20.00 N·m, and rated current of 10.6 A. With a 300 V rating and resolver feedback, you get reliable closed-loop control, improved repeatability, and smooth torque delivery across speed ranges, essential for high-precision applications.
Yes. The 8-pole design delivers robust torque, while resolver feedback ensures accurate position sensing, ideal for fast pick-and-place and packaging lines. Its RoHS compliance and CE/CSA/UR certifications support safety and regulatory requirements in mixed automation environments, and the option to deploy with existing ABB servo stacks reduces integration risk.
The motor is certified with CE, CSA, TUV, and UR marks, confirming safety and performance across regions. RoHS compliance ensures restricted hazardous substances are controlled, and WEEE considerations are acknowledged for end-of-life handling. This combination helps satisfy global industrial standards and audit expectations.
Lead time is listed as 0 days, and the product is stocked at multiple warehouses (including US and China zones). This translates to rapid fulfillment for urgent automation projects, minimizing downtime during upgrades or ramp-ups and enabling faster time-to-production.
