ABB 7BCBXM18542T Explosion Proof General Purpose - XPFC
Part Number: 7BCBXM18542T
Quick Summary

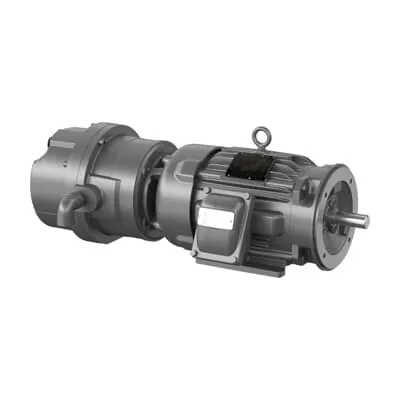

Explosion Proof General Purpose motor from ABB 7BCBXM18542T delivers reliable 3 HP performance for hazardous locations. Facilities wrestling with downtime, safety compliance, and high-temperature environments will appreciate its rugged design and instant availability. This unit aligns with NEMA standards and features an XPFC explosion-proof enclosure for dependable operation in hazardous zones. With dual voltage options and continuous-duty performance, it helps you simplify procurement while meeting strict safety and regulatory requirements. Secondary keywords included here: 3-phase explosion-proof motor, 230/460 V operation, and C-face mounting flexibilities. This combination reduces spare parts, minimizes installation time, and supports reliable 24/7 operation in plants like chemical processing, oil and gas, and mining.
Product Information
Extended Description
7BCBXM18542T ABB: Explosion Proof General Purpos 3 Hp 190 V (CBXM18542T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5//3HP,1750//1465RPM,3PH,60//50HZ,1
Invoice Description
5//3HP,1750//1465RPM,3PH,60//50HZ,184TC
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Replaced Product ID (OLD)
7B06-0000-0916
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 5//3 HP, 1800//1500 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, XPFC Enclosure, 230/460//190/38
Short Description
5//3 HP, 1800//1500 RPM, Frame Size 184Tc, C-Face, 3 PH, XPFC, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
3 Hp | 5 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
184
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Width
17.625 in
Product Net Weight
241 lb
Gross Weight
241 lb
Standards
NEMA
Feature: Explosion-proof XPFC enclosure provides robust protection for hazardous locations. Business Impact: It minimizes ignition risks and helps meet safety and regulatory requirements, reducing downtime and inspection costs. Application: Suitable for chemical plants, oil and gas, mining, and other environments where continuous operation is critical. Feature: Dual voltage and 50/60 Hz capability provide flexible electrical compatibility. Business Impact: simplifies sourcing and inventory, enabling a single motor to support multiple plants and spare parts strategy. Application: ideal for mixed-voltage facilities and retrofit projects where varying electrical infrastructure is present. Feature: 4-pole, continuous-duty design with insulation class F and ambient rating up to 40 °C. Business Impact: ensures reliable performance under typical plant temperatures and long service life, lowering maintenance intervals. Application: conveyors, pumps, and fans in hot industrial settings. Feature: 184Tc frame with C-face mounting and iron frame construction. Business Impact: enables straightforward installation, robust mounting, easier alignment, and speedy service access. Application: retrofits and new installations where space and mounting flexibility matter. Feature: 241 lb weight and standard NEMA-compliant design with stock availability. Business Impact: supports fast procurement and on-site logistics, reducing lead times and downtime. Application: widespread deployment across multiple warehouses to enable rapid deployment and service.
Get a Quick Quote for a ABB 7BCBXM18542T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCBXM18542T?
Enquire Now
FAQs
The 7BCBXM18542T supports three-phase operation with voltage options of 230/460 V, aligning with common industrial power distributions and simplifying upgrades or retrofits. This compatibility reduces the need for multiple stock items and helps maintenance teams streamline spare parts planning while maintaining steady performance across varying plant sections.
Key specs include 3 HP output, 4-pole configuration, continuous-duty rating, insulation class F, and an ambient operating range up to 40 °C. The frame size is 184Tc with C-face mounting, designed for reliable, long-life operation in demanding environments. Frequency coverage spans 50/60 Hz, supporting global installations.
Yes. The ABB 7BCBXM18542T uses an XPFC explosion-proof enclosure and is designed for hazardous locations, meeting NEMA standards. Its rugged construction, continuous-duty capability, and protected housing make it appropriate for chemical processing, oil and gas, mining, and other environments where ignition risk must be minimized and equipment uptime is critical.
The product carries a NEMA standard designation and uses an XPFC explosion-proof enclosure, ensuring compliance with safety requirements for hazardous environments. While the data does not specify SIL or CE, the enclosure design and mounting approach support robust protection and regulatory alignment for typical industrial installations.
Expect reduced downtime due to a rugged XPFC enclosure and continuous-duty design. Maintenance cycles benefit from a robust iron frame, 4-pole construction, and standard mounting, simplifying alignment and servicing. With stock availability across multiple warehouses, procurement lead times shrink, improving overall return on investment through faster project execution and longer service intervals.
