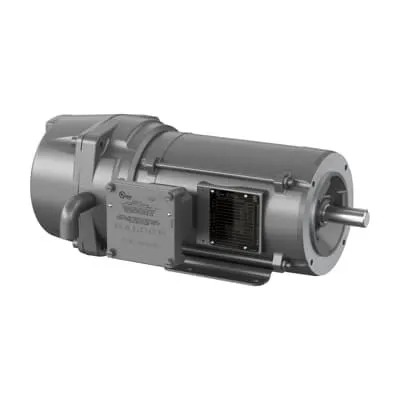

ABB 7BCBXMN14142T Motors - Explosion Proof
Part Number: 7BCBXMN14142T
Quick Summary
ABB 7BCBXMN14142T Explosion Proof motor powers hazardous-location conveyors and pumps. Engineers often struggle with downtime and compliance when operating in explosive environments, making rugged, certified motors essential. This unit aligns with NEMA standards and features an XPNV enclosure, 50/60 Hz operation, 4-pole performance, and a 40 °C ambient rating for reliable field duty. By combining robust design with readily available stock, it supports fast procurement and lowers lifecycle costs across plant motor fleets.
Product Information
Extended Description
7BCBXMN14142T ABB: Explosion Proof General Purpos 0.75 Hp 190 V (CBXMN14142T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1//.75HP,1770//1475RPM,3PH,60//50HZ
Invoice Description
1//.75HP,1770//1475RPM,3PH,60//50HZ,143T
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015100
Replaced Product ID (OLD)
7B35U456Z818
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 1//.75 HP, 1800//1500 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, XPNV Enclosure, 230/460//190/
Short Description
1//.75 HP, 1800//1500 RPM, Frame Size 143Tc, C-Face, 3 PH, XPNV, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
0.75 Hp | 1 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Steel
Frame Size
143
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Width
16.625 in
Product Net Weight
88 lb
Gross Weight
88 lb
Standards
NEMA
Feature → Business Impact → Application: The explosion-proof XPNV enclosure and 143Tc frame provide a safe, compliant solution for hazardous environments, reducing risk and facilitating easier insurance and regulatory audits in chemical plants and refineries. This motor delivers 0.75 hp to 1 hp across 50/60 Hz, 3-phase, 4-pole configurations, enabling flexible drive selection and energy-efficient operation in conveyors and pumps with predictable maintenance needs. Application: suitable for continuous-duty service in demanding spaces, including oil & gas and petrochemical processing lines where reliability and safety are critical. Compatibility and installation advantages include C-face mounting and a frame designed for straightforward OEM integration with existing bushings, couplings, and VFDs. Objections about upfront cost are addressed by stock availability and zero-day lead times for rapid commissioning. Industry context: aligns with US manufacturing standards and NEMA guidelines to support compliance-driven procurement and scalable asset strategies.
Get a Quick Quote for a ABB 7BCBXMN14142T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCBXMN14142T?
Enquire Now
FAQs
This motor uses C-face mounting and a 143Tc frame, simplifying alignment with existing gear reducers and couplings. It is designed for 3-phase power at 50/60 Hz and can integrate with common VFDs, enabling smooth speed control while maintaining the explosion-proof XPNV enclosure for hazardous locations.
The unit operates on 50/60 Hz with 4 poles, delivering 0.75 hp (up to 1 hp in certain configurations) in 3-phase service. It features Class F insulation, an ambient rating of 40 °C, and is intended for continuous duty, making it suitable for long-running equipment like conveyors and pumps in demanding environments.
Yes. It is designed for explosion-proof applications and uses an XPNV enclosure, meeting safety expectations in chemical, refinery, and mining settings. The NEMA-standard construction further supports regulatory compliance and safer operation in environments with flammable atmospheres.
The motor adheres to NEMA standards, ensuring compatibility with US manufacturing and safety norms. It is manufactured in the United States and is specified to support reliable performance within hazardous-location requirements, helping streamline approvals and audits for industrial plants.
Warranty terms indicate products under warranty must be returned. The motor is stocked at multiple warehouses with 0 day lead times, enabling rapid procurement and commissioning. This reduces downtime, lowers total ownership costs, and simplifies maintenance planning for plant-wide motor fleets.
