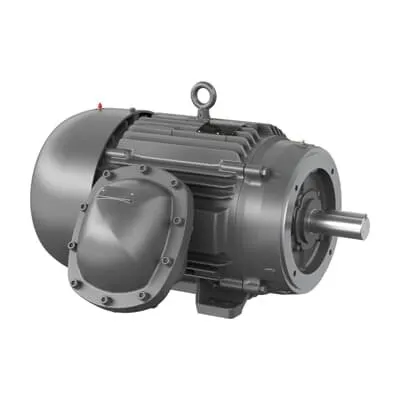

ABB 7BCCPX322566T Severe Duty Motor - IP55 XPFC
Part Number: 7BCCPX322566T
Quick Summary
ABB 7BCCPX322566T Severe Duty Motor is a high-efficiency 20 HP motor designed for heavy industrial drives. Many manufacturers struggle with downtime when equipment operates in high ambient temperatures or under continuous duty in harsh settings. It features IP55 protection, a rugged XPFC explosion-proof enclosure, and NEMA-style robustness to withstand demanding environments. With multi-voltage capability and quick availability, this motor delivers reliable performance while simplifying procurement and maintenance planning for automation projects. Engineers will value the continuous-duty rating, low vibration profile, and compatibility with common drive solutions. In addition, the stock is distributed globally, reducing lead times and accelerating commissioning. This combination supports predictable maintenance budgets and minimizes unscheduled downtime across critical production lines.
Product Information
Extended Description
7BCCPX322566T ABB: Severe Duty Motor 20 Hp 190 V (CCPX322566T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60M 6P XPFC HOR 324TCY TSTAT CP FEA
Invoice Description
60M 6P XPFC HOR 324TCY TSTAT CP FEAT INV
Product Name
Explosion Proof Severe Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015230
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Severe Duty, 25//20 HP, 1200//1000 RPM, Frame Size 324Tcy, C-Face Mounting, 3 Phase, XPFC Enclosure, 230/460//190/38
Short Description
25//20 HP, 1200//1000 RPM, Frame Size 324Tcy, C-Face, 3 PH, XPFC, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
20 Hp | 25 Hp
Ambient Temperature
40 °C
IP Class
IP55
Insulation Class
F
Number of Poles (High)
6
Type of Duty
Continuous
Frame Material
Iron
Frame Size
324
Product Net Depth / Length
42 in
Product Net Height
29.5 in
Product Net Width
34.5 in
Product Net Weight
745 lb
Gross Weight
745 lb
Standards
NEMA
UNSPSC
26101115
Severe-duty construction provides continuous operation at 20 HP (25 HP peak) in 50/60 Hz networks. This translates to higher starting torque and reduced wear on gears and bearings, delivering measurable uptime gains on conveyors, pumps, and fans. In practice, plant engineers see smoother acceleration and fewer unplanned stops in rugged environments. IP55 protection combined with an XPFC explosion-proof enclosure delivers safe operation in hazardous locations. The rugged housing minimizes dust intrusion and moisture ingress, extending bearing life and reducing corrosion-related downtime. This makes the motor well-suited for chemical plants, refineries, and other demanding settings where compliance matters. Frame size 324 and C-face mounting support straightforward retrofit and alignment with existing equipment. The standardized 324 frame simplifies replacement and stock planning, while the 6-pole design enables stable speed control across a wide load range. Installers benefit from familiar mounting patterns and quicker commissioning. Insulation Class F and ambient operating temperature up to 40 C ensure reliable insulation resistance under hot plant conditions. Customers benefit from longer insulation life and reduced risk of phase-to-ground faults in heat-intensive facilities. The motor's continuous-duty rating pairs well with automated processes that run around the clock. Global stocking and 0-day lead times enable faster project startup and reduced downtime during upgrades. With multiple warehouses including the United States and China, distributors can ship quickly to meet tight production windows. Compatibility with standard 3-phase drives and common control systems minimizes integration effort and total cost of ownership. Multi-voltage configurations (230/460 V and 190/380 V variants) offer wiring flexibility for international installations. This reduces the need for custom rewiring or new power infrastructure, enabling smoother cross-site deployments and scalable automation architecture.
Get a Quick Quote for a ABB 7BCCPX322566T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCCPX322566T?
Enquire Now
FAQs
Install the ABB 7BCCPX322566T in a three-phase power system configured for 50/60 Hz operation. Verify voltage options (230/460 V and multi-voltage variants as indicated) and mount with C-face compatibility for quick alignment to available couplings. Use proper NEMA/XPFC enclosure wiring practices, secure ground connections, and install suitable torque and vibration isolation to maintain performance and reduce bearing wear.
Key specifications include a continuous 20 HP rating (25 HP peak), 6 poles, frame size 324, 50/60 Hz compatibility, IP55 protection, Insulation Class F, and a 3-phase design with a 0-day lead time stock. The XPFC explosion-proof enclosure supports hazardous location use, while the weight and dimensions align with standard 324 frame equipment for easy replacement.
Yes. The 7BCCPX322566T is built with an XPFC explosion-proof enclosure and IP55 rating, making it appropriate for many hazardous environments such as chemical processing, oil, and gas applications. It maintains continuous duty under tough conditions, while meeting robust safety standards. Ensure correct installation in accordance with local codes and site risk assessments.
Certifications include IP55 protection and NEMA-compliant construction, with an explosion-proof XPFC enclosure for hazardous locations. The unit is US-origin and stocked globally, enabling quick fulfillment. CE certification is not explicitly listed in the available data; verify regional requirements and confirm with the supplier for the latest compliance documentation. It is designed to meet industrial standards for rugged, long-life operation in automation environments.
Lead time is listed as 0 day, and the model is stocked at multiple warehouses, including locations in the United States and China, with additional stock in Alabama, Alaska, and other regions per supplier groupings. This distribution model supports rapid deployment for downtime-critical projects and simplifies procurement for global automation integrations.
