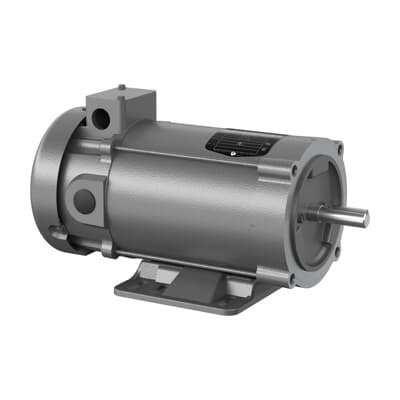

ABB CD3450 DC Wound Field Fractional HP - CSA UR Certified
Part Number: 7BCD3450
Quick Summary
DC Wound Field Fractional HP motor drives compact, reliable control for conveyors, pumps, and machine tools. Engineers often wrestle with finding a durable, cost-effective solution that fits a 56C frame and TEFC enclosure in mixed production lines. With CSA and UR certifications, RoHS compliance, and a robust NEMA-TEFC design, this ABB motor meets demanding industrial standards. Stocked across multiple warehouses to support fast lead times, it delivers scalable performance with a 0.5 HP output at 1750 rpm, ensuring predictable operation and reduced downtime in daily manufacturing tasks.
Product Information
Extended Description
7BCD3450 ABB: DC Wound Field Fractional HP 0.5 Hp (CD3450)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1750RPM,DC,56C,3420D,TEFC,F1,N
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5.2 A
Armature Voltage
90 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CD3450
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LY6172
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Field Current
0.5 A | 1 A
Field Voltage
100 V | 50 V
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CD3450
Gross Volume
2200.078 inÂł
Gross Weight
29 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1750RPM,DC,56C,3420D,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Wound Field Fractional HP, 0.5 HP, Frame Size 56C, 0 Phase, TEFC Enclosure, (CD3450)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
DC Wound Field Fractional HP
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
29 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6172-1909
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, Frame Size 56C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Feature: 0.5 HP output at 1750 r/min in a 56C frame. Business Impact: Provides adequate torque for light-to-medium duty drives while keeping footprint compact. Application: Suitable for conveyors and small machine tools that require reliable speed control without oversizing the drive. The ABB CD3450 helps minimize space impact on existing layouts and reduces initial capital expenditure. Feature: TEFC enclosure and rugged frame. Business Impact: Enclosure protects internal components in harsh environments, reducing maintenance interruptions. Application: Ideal for factory floors with dust, humidity, or modest temperature variation, improving uptime in continuous operation scenarios. Feature: Foot-mounted, horizontal mounting compatibility with 56C frame. Business Impact: Simplifies retrofits and new installations, lowering commissioning time and installation cost. Application: Install across retrofit projects or new lines with standard mounting footprints, ensuring quick deployment. Feature: RoHS compliant, CSA | UR certified, and NEMA standards alignment. Business Impact: Compliance streamlines procurement and regulatory alignment while enabling safer, legal operation. Application: Suitable for regulated industries and multi-site deployments that require consistent standards. Feature: Field and armature voltage options, low lubrication maintenance (Regreasable), sealed bearing. Business Impact: Reduces upkeep, extends service intervals, and minimizes operational risk. Application: Long-term drives in production lines with limited maintenance windows, improving overall equipment effectiveness.
Get a Quick Quote for a ABB 7BCD3450
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCD3450?
Enquire Now
FAQs
Yes. The CD3450 uses a 56C frame and is designed for foot-mounted, horizontal mounting. This compatibility simplifies retrofits and new installations, reducing alignment time and providing a stable mounting platform for conveyors and light-duty drives. The robust TEFC enclosure further supports installation in typical factory environments without special enclosure retrofits.
The motor provides 0.5 HP output with a base speed of 1750 r/min. Armature voltage is 90 V, and field voltage is selectable at 100 V or 50 V. It is RoHS compliant, with bearing and lubrication designed for durability. These specs align with general purpose, light-duty drive requirements while maintaining safety and reliability.
Ideal for conveyors, small machine tools, and pumps in moderate-duty settings, the CD3450 delivers consistent torque at 1750 r/min within a compact 56C frame. Its TEFC enclosure and foot-mount design support easy integration into existing lines, while CSA | UR certification and RoHS compliance meet regulatory and supplier requirements in diverse industrial environments.
Yes. The CD3450 is certified by CSA and UR, and it is RoHS compliant. These certifications help ensure regulatory compliance across North American markets and support safer procurement. The motor also adheres to NEMA TEFC standards, providing confidence in rugged, industry-grade performance.
The CD3450 features Regreasable lubrication and sealed bearings (6203), reducing maintenance frequency and easing service planning. With a lightweight 29 lb profile and straightforward mounting, installation costs are minimized. Long-term ROI comes from reduced downtime, predictable performance, and lower life-cycle costs compared to larger, more complex drives.
