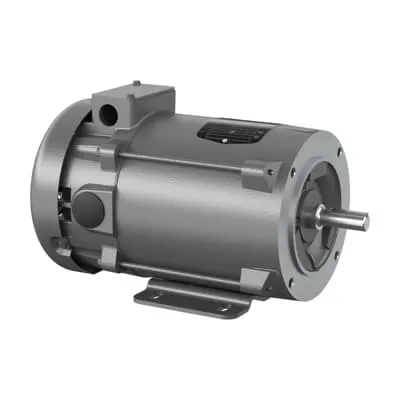

ABB CD5319 DC Wound Field Fractional HP Motor - TEFC
Part Number: 7BCD5319
Quick Summary
The ABB CD5319 DC Wound Field Fractional HP motor powers compact drives and control panels with dependable 1 HP output. Many buyers struggle with downtime and sourcing compatible parts for older systems, driving maintenance costs. It carries CSA and UR certifications with TEFC enclosure and 1 HP rating for predictable performance, RoHS compliant. As a 56C frame industrial motor from Baldor, it integrates with standard installations and supports quick retrofits, shortening total cost of ownership. Stocked at multiple warehouses in the United States and internationally to reduce lead times, this motor is a practical choice for machinery upgrades and new builds. Its 56C frame, 1750 r/min rate, and continuous-duty rating support conveyors, fans, and small pumps in industrial settings.
Product Information
Extended Description
7BCD5319 ABB: DC Wound Field Fractional HP 1 Hp (CD5319)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,56C,3535D,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
10 A
Armature Voltage
90 V
Base Speed
1750 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CD5319
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYP442
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Field Current
0.6 A | 1.2 A
Field Voltage
100 V | 50 V
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CD5319
Gross Volume
2200.078 inÂł
Gross Weight
53 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1750RPM,DC,56C,3535D,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Wound Field Fractional HP, 1 HP, Frame Size 56C, 0 Phase, TEFC Enclosure, (CD5319)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC Wound Field Fractional HP
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
53 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, Frame Size 56C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
56C frame construction with a TEFC enclosure delivers rugged performance in demanding environments, while the 1 HP rating and 1750 r/min base speed ensure reliable torque for small-to-mid-size drives. This combination reduces installation surprises, simplifies retrofits into existing Baldor-based systems, and supports standardized accessory fitment across panels, conveyors, fans, and pumps. At 53 lb, the unit remains manageable for installation. It also integrates smoothly with standard DC drive modules and speed controllers, easing control architecture during upgrades. Field voltage options of 100 V or 50 V and an armature voltage of 90 V provide flexibility to match startup torque with load without oversizing drives, supporting smoother ramps and extended drive life. The dual field current values of 0.6 A or 1.2 A enable better torque control across varying load profiles, reducing energy consumption during steady-state operation and enabling faster response in automated systems. Ambient temperature rating up to 40 °C ensures stable performance in typical plant environments. Regreasable lubrication and sealed bearings (6205) extend maintenance intervals and reduce downtime, while the 0.63 in shaft diameter aligns with common couplings and adapters used in motor-driven equipment. The 6203 NDE bearing adds durability in misalignment and vibration-prone installations, and a robust steel frame supports long-term reliability in continuous operation. Horizontal mounting and foot-mounted base simplify installation in crowded electrical spaces. CSA and UR certifications, along with RoHS compliance, meet essential regulatory requirements for many industrial applications, including environments that require material traceability. Insulation class F offers thermal margin, and the TEFC enclosure delivers protection against dust and light moisture, making this motor suitable for conveyors, fans, and small pumps in busy production lines. The Baldor-Reliance branding also provides proven compatibility with widely used control interfaces. Product stocking status shows availability across multiple warehouses, reducing lead times for urgent builds and maintenance contracts. The catalog indicates a standard minimum order quantity of 1 piece and a non-make-to-order approach, which supports predictable procurement cycles and faster project ramp-ups. Stock is maintained across United States and international sites, ensuring resilience against supply-chain disruptions.
