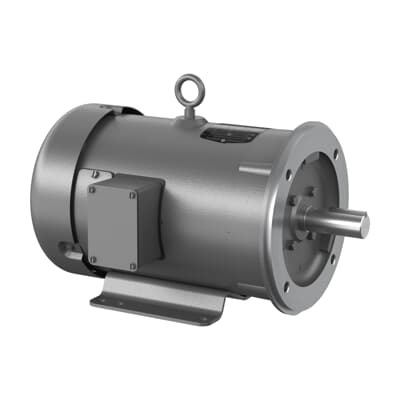

ABB CD6203 DC Wound Field Fractional HP - TEFC
Part Number: 7BCD6203
Quick Summary
DC Wound Field Fractional HP motors provide compact, reliable drive solutions for small- to mid-size industrial equipment. They’re designed to simplify maintenance and speed startup in demanding environments. This 3 HP unit uses a TEFC enclosure and a 184TC frame to withstand typical factory conditions, while field wiring and precise torque control support a wide range of applications such as conveyors, pumps, and fans. The product is RoHS compliant and carries CSA|UR certifications, with NEMA-based design standards that help meet regulatory requirements. By pairing with a foot-mounted configuration and robust bearings, it delivers scalable performance for busy production lines, contributing to improved uptime and lower total cost of ownership for plant operators.
Product Information
Extended Description
7BCD6203 ABB: DC Wound Field Fractional HP 3 Hp (CD6203)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,DC,184TC,3668D,TEFC,F1,
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
14.7 A
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CD6203
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LY5347
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Field Current
0.6 A | 1.2 A
Field Voltage
200 V | 100 V
Frame Material
Steel
Frame Size
184
Global Commercial Alias
CD6203
Gross Volume
8416.408 in³
Gross Weight
133 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
3HP,1750RPM,DC,184TC,3668D,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Wound Field Fractional HP, 3 HP, Frame Size 184Tc, 0 Phase, TEFC Enclosure, (CD6203)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
3 Hp
Product Name
DC Wound Field Fractional HP
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
133 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
3 HP, Frame Size 184Tc, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Feature: TEFC enclosure and 184TC frame protect windings from dust and moisture, reducing unplanned downtime and simplifying maintenance. Business Impact: Longer motor life and lower service costs translate to higher equipment availability. Application: Ideal for conveyors, fans, and pumps in dusty or harsh factory settings. Feature: DC wound field design with armature voltage of 180 V and field voltage options of 200 V or 100 V. Business Impact: Enables precise torque control and steady starting performance essential for synchronized processes. Application: Suitable for and aligns with variable-speed drives in material handling and processing lines. Feature: 3 HP output at 1750 r/min with 184 frame size and foot-mounted orientation. Business Impact: Consistent speed-torque characteristics simplify mechanical integration and reduce retrofit risks. Application: Retrofit projects and new installations in compact plant spaces. Feature: Regreasable lubrication, sealed bearings (6206, 6205), and NEMA/TEFC compliance. Business Impact: Enhanced reliability and reduced lubrication-related failures under continuous operation. Application: Industrial environments requiring dependable lubrication cycles and regulatory compliance. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Fast delivery supports maintenance windows and project schedules. Application: Emergency replacements and peak-load maintenance across distributed facilities.
