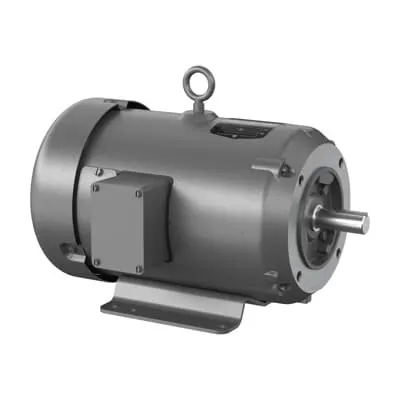

ABB CD6218 DC Wound Field Fractional HP - CSA UR
Part Number: 7BCD6218
Quick Summary
DC Wound Field Fractional HP motors deliver compact 1 HP control for OEM machinery and automation in manufacturing. If space is tight or mounting flexibility matters, this model minimizes footprint while maximizing torque delivery. With CSA and UR certification, RoHS compliance, and a NEMA TEFC enclosure, it meets regulatory and reliability expectations for demanding environments. The design supports dual voltage options and a foot-mounted, horizontal orientation, helping you simplify wiring and installation. Fast lead times and stock availability further reduce downtime, making it a practical choice for conveyors, small machine tools, and process equipment. This translates to lower installation costs and faster time-to-value for your industrial projects.
Product Information
Extended Description
7BCD6218 ABB: DC Wound Field Fractional HP 1 Hp (CD6218)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,184C,3623D,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5 A
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CD6218
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
36LY5257
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Field Current
0.25 A | 0.5 A
Field Voltage
200 V | 100 V
Frame Material
Steel
Frame Size
184
Global Commercial Alias
CD6218
Gross Volume
3590.443 inÂł
Gross Weight
65 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1750RPM,DC,184C,3623D,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Wound Field Fractional HP, 1 HP, Frame Size 184C, 0 Phase, TEFC Enclosure, (CD6218)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC Wound Field Fractional HP
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
65 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1 HP, Frame Size 184C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Feature more compact footprint with 1 HP output paired with 1750 r/min base speed. Business Impact: Optimized space utilization in control panels and machine frames, enabling tighter equipment layouts and easier retrofits. Application: Conveyors and small tooling machines where footprint and torque stability matter. The second feature highlights TEFC enclosure for robust protection against dust and contaminants. Business Impact: Longer service life in harsh shop floors and outdoor environments, reducing maintenance interruptions. Application: Material handling and process lines in automotive and packaging facilities. A third feature notes dual voltage field options (200 V / 100 V) and field current choices (0.25 A / 0.5 A). Business Impact: Wiring flexibility, inventory simplification, and faster commissioning. Application: New installations and spare parts planning across multi-site operations. A fourth feature emphasizes Foot Mounted, Horizontal mounting and 184C frame compatibility. Business Impact: Easy installation, standard accessory compatibility, and repeatable alignment with existing mounting patterns. Application: Replacement motors in legacy lines without costly reworks. A final feature covers reliability elements—regreasable lubrication, RoHS compliance, and NEMA-standard performance. Business Impact: Lower life-cycle costs, regulatory confidence, and predictable maintenance windows. Application: Industrial automation, packaging lines, and machining centers seeking consistent uptime.
Get a Quick Quote for a ABB 7BCD6218
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCD6218?
Enquire Now
FAQs
The CD6218 uses a Foot Mounted, Horizontal mounting arrangement with a 184C frame. This aligns with common mounting rails and accessory kits, simplifying retrofit and new installations. Expect straightforward alignment with standard shaft diameters and compatible couplings, reducing procurement complexity.
This motor supports dual field voltage options: 200 V or 100 V, with corresponding field currents of 0.25 A or 0.5 A. Armature voltage is 180 V, and the motor delivers 1 HP at 1750 r/min, with insulation class F and RoHS compliance for safer, longer-lasting operation.
Yes. It is rated for continuous duty, with a TEFC enclosure and 1 HP output at 1750 r/min. The foot-mounted 184C frame and robust bearings (6206 sealed) support reliable operation in conveyors and packaging lines while minimizing maintenance uptime.
The motor carries CSA and UR certifications and RoHS compliance, with a NEMA standard framework. These certifications help align with safety, environmental, and electrical compliance requirements across North American facilities.
Choose the regreasable lubrication option to extend bearing life and reduce unexpected downtime. The 6206 sealed bearing and 6205 NDE components are designed for durability, with a 65 lb weight and a robust 184C frame enabling straightforward field servicing and replacement using common spare parts.
