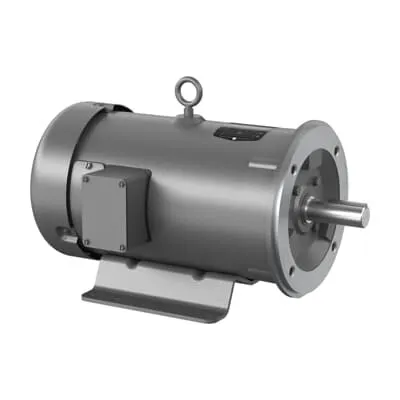

ABB CD7502 DC Wound Field Fractional HP - TEFC Enclosure
Part Number: 7BCD7502
Quick Summary
DC Wound Field Fractional HP motors deliver reliable torque for compact drives in conveyors, pumps, and fans. Engineers often face downtime and uncertain lead times when sourcing compatible DC wound-field motors across multiple warehouses. This ABB CD7502 model carries CSA and UR certifications and a NEMA-standard envelope, including a TEFC enclosure, a 2 HP rating at 1750 rpm, and a US-origin build. Stocked at multiple warehouses worldwide with zero lead time, it supports rapid procurement and predictable maintenance. As an industrial motor with a compact 213C frame and regreasable bearings, it reduces spare-part inventories and simplifies replacement planning for maintenance teams.
Product Information
Extended Description
7BCD7502 ABB: DC Wound Field Fractional HP 2 Hp (CD7502)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1750RPM,DC,213C,3646D,TEFC,F1,N
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
9.5 A
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6207, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CD7502
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LY5580
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Field Current
0.4 A | 0.8 A
Field Voltage
200 V | 100 V
Frame Material
Steel
Frame Size
213
Global Commercial Alias
CD7502
Gross Volume
3590.443 inÂł
Gross Weight
108 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1750RPM,DC,213C,3646D,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Wound Field Fractional HP, 2 HP, Frame Size 213C, 0 Phase, TEFC Enclosure, (CD7502)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
2 Hp
Product Name
DC Wound Field Fractional HP
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
108 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
2 HP, Frame Size 213C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Feature: 2 HP output with a 1750 r/min nominal speed, 213C frame, and foot-mounted base. Business Impact: Provides precise, repeatable torque in belt-driven loads while simplifying mounting and alignment, shortening installation time and reducing vibration-related wear. Application: Suitable for conveyors, fans, and small pumps in packaging lines and process equipment. Paragraph continues: This combination minimizes start-up transients and delivers consistent performance across a range of load profiles. Feature: TEFC enclosure protects windings from dust, moisture, and other harsh conditions. Business Impact: Extends motor life in dirty or outdoor environments, lowering maintenance costs and downtime. Application: Material handling, agricultural equipment, and utility-driven drive trains. Paragraph continues: The robust enclosure supports long service intervals and easier cleaning during scheduled maintenance. Feature: Field voltage options of 200 V and 100 V with current options of 0.4 A or 0.8 A. Business Impact: Flexible integration with existing DC drive systems and regional power variations, reducing wiring complexity and retrofit risk. Application: Retrofits and new installations in multi-region plants. Paragraph continues: This versatility simplifies design validation and accelerates commissioning. Feature: Regreasable bearings and a shaft diameter of 1.13 in with a 213C frame. Business Impact: Longer bearing life and easier lubrication management translate to lower maintenance labor and fewer unplanned outages. Application: Continuous-duty conveyors and light-to-medium-duty equipment. Paragraph continues: This mechanical robustness supports predictable life cycles and OEM compatibility. Feature: Stocked at US and China warehouses with 0 day lead time and CSA/UR with NEMA standards. Business Impact: Rapid replacement and supply chain resilience reduce downtime in critical lines. Application: OEM spares programs and after-market service, enabling faster turnaround and improved uptime.
Get a Quick Quote for a ABB 7BCD7502
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCD7502?
Enquire Now
FAQs
The CD7502 uses a foot-mounted base and a 213C frame, with a 1.13 in shaft diameter, making it straightforward to align with standard belt drives and couplings. Its TEFC enclosure protects windings in dusty or humid environments, reducing maintenance. Ensure mounting surface is flat and level to minimize vibration and verify compatible shaft and coupling dimensions before mounting.
Key specs include 2 HP output at 1750 rpm, field voltage options of 200 V or 100 V, and field current options of 0.4 A or 0.8 A. These allow flexible integration with existing DC drive systems and regional power variations, enabling stable torque delivery and consistent speed under load while simplifying wiring for retrofits or new installations.
Yes. The motor is rated for continuous duty with a service factor of 1.00, and its TEFC enclosure plus regreasable bearings support long, reliable operation in demanding environments. Its 2 HP rating and 1750 r/min speed are well-matched to typical medium-duty, belt-driven conveyors and pump skids, offering predictable performance and manageable maintenance.
The CD7502 carries CSA and UL Recognized (UR) certification and aligns with NEMA standards. These certifications ensure compliance with North American electrical safety and performance requirements, facilitating OEM approvals, maintenance audits, and installation in regulated facilities without additional revalidation.
The motor is stocked in multiple warehouses (US and China) with zero-day lead time, enabling rapid replacement and reduced downtime. Regreasable bearings lower maintenance labor, while the flexible field voltage options simplify retrofits. Overall, this translates to shorter downtime, lower spare-part carrying costs, and faster commissioning, improving line-throughput and total cost of ownership.
