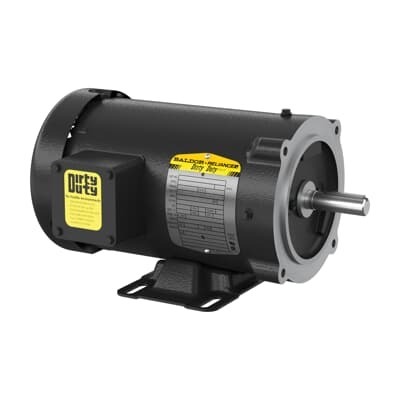

ABB CDM3542 Severe Duty Motor - NEMA TEFC 56C, 3-Phase
Part Number: 7BCDM3542
Quick Summary
Severe Duty Motor CDM3542 provides robust 0.75 HP power for demanding industrial drives. Many plants struggle with heat, dust, and vibration that shorten motor life and increase downtime. This unit carries CSA EEV and UR recognition, with NEMA design B and TEFC enclosure to ensure reliable operation in harsh environments. Designed for three-phase 230/460 V systems and a 56C frame, it supports straightforward installation across common industrial drives, enabling low total cost of ownership.
Product Information
Extended Description
7BCDM3542 ABB: Severe Duty Motor 0.75 Hp 230 V (CDM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,3PH,60HZ,56C,3428M,TE
Ambient Temperature
40 °C
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDM3542
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LYM811: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CDM3542
Gross Volume
2110.969 in³
Gross Weight
33 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,1725RPM,3PH,60HZ,56C,3428M,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CDM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
68 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
33 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.8 A | 1.4 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Robust frame and TEFC enclosure extend motor life in harsh plants. The CDM3542 uses a 56C frame with a C-face drive end and a TEFC enclosure, delivering protection against dust, moisture, and debris. This combination reduces maintenance frequency and minimizes downtime in conveyors, pumps, and other continuous-duty applications. Efficiency translates to tangible business gains. Rated at 0.75 HP with 1725 rpm and a 74% efficiency, it minimizes energy waste while preserving torque under load. A 68% power factor helps stabilize electrical demand on 230/460 V, 60 Hz three-phase systems, supporting utility compliance and lower operating costs. Installation and compatibility promote fast deployment. The motor is designed for horizontal, foot-mounted mounting with a 56C frame and a 0.63 in shaft, compatible with standard couplings and belts. The 6203 sealed bearings, 40 °C ambient rating, and TEFC enclosure simplify rugged operation in dirty environments. Availability and service reduce project risk. Stocked at multiple warehouses with 0 day lead time and a clear warranty-return policy help planning and maintenance. With 3-phase 230/460 V operation, NEMA design B, and a reliable 4-pole configuration, this motor delivers predictable ROI through uptime and energy efficiency.
