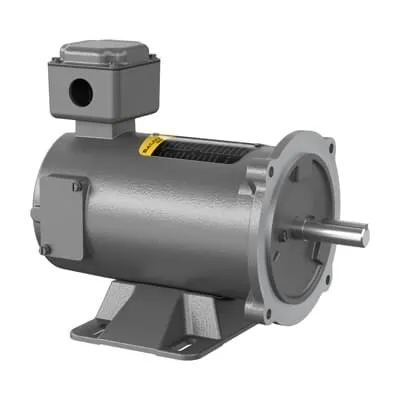

ABB CDP3310 DC Permanent Magnet Standard - 0.25 HP, TENV
Part Number: 7BCDP3310
Quick Summary
DC Permanent Magnet Standard motor provides high-efficiency, compact drive for continuous-duty applications like conveyors and pumps. Many engineers face efficiency penalties and downtime when selecting motors that don’t match load, speed, or mounting constraints. It carries CE, CSA, UR, and WEEE certifications for regulatory readiness across global projects. With a 56C frame and a TENV enclosure designed for up to 40 °C ambient, installation is straightforward on factory floors and OEM lines. Regreasable lubrication and a 1.00 service factor help reduce maintenance costs and extend MTBF, while 90 V armature voltage and 2.5 A current support common control architectures. Stocked at multiple warehouses worldwide, the CDP3310 enables faster procurement and uptime across regional operations.
Product Information
Extended Description
7BCDP3310 ABB: DC Permanent Magnet Standard 0.25 Hp (CDP3310)
Configuration Only
No
Country of Origin
United States (US)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.25HP,1750RPM,DC,56C,3320P,TENV,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
2.5 A
Armature Inertia
7.8 ft·lbf
Armature Voltage
90 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3310
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
33LY2024
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDP3310
Gross Volume
2110.969 inÂł
Gross Weight
24 lb
Horsepower Rating UL/CSA
0.250 Hp
IC Class
TENV
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.25HP,1750RPM,DC,56C,3320P,TENV,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 0.25 HP, Frame Size 56C, 0 Phase, TENV Enclosure, (CDP3310)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.25 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
24 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B33-2024Z118
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.25 HP, Frame Size 56C, 0 PH, TENV,
Standards
NEMA
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: DC permanent magnet construction delivers high efficiency and improved torque response compared to traditional wound-rotor designs. Business impact: lower energy consumption and better load handling translate into measurable operating-cost reductions. Application: ideal for conveyors, pumps, and other continuous-duty drives in automation lines. Feature: 0.25 HP output with a 56C frame and base speed of 1750 r/min offers a compact footprint without sacrificing performance. Business impact: easier integration into compact OEM assemblies and tighter equipment enclosures, reducing system size and material costs. Application: small- to mid-size automation modules requiring reliable start-up torque. Feature: TE N V enclosure (TENV) and a 40 °C ambient rating support safe operation in typical manufacturing environments. Business impact: simplified installation in plant floors with fewer enclosure cooling requirements and improved equipment uptime. Application: indoor production areas and moderately warm facilities. Feature: Regreasable lubrication and a straightforward maintenance profile align with a 1.00 service factor. Business impact: extended mean time between service events and predictable maintenance budgets. Application: long-running conveyors and continuous-duty machinery. Feature: Stocked At Warehouses across regions (US, Germany, China) enables faster procurement and shorter lead times. Business impact: reduced project risk and accelerated time-to-value for global OEM deployments. Application: multi-site manufacturing programs requiring reliable supply chains. Feature: Certifications and compliance footprint (CE, CSA, UR, WEEE) enhance risk management and market access. Business impact: easier customer qualification and smoother audits in regulated industries. Application: global projects where regulatory adherence matters most.
