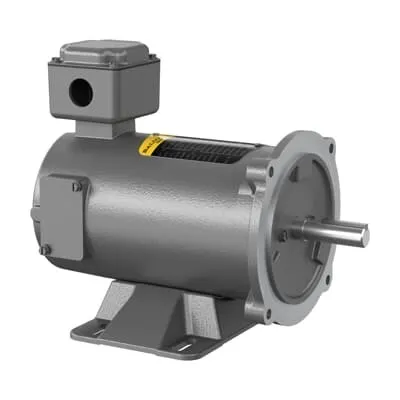

ABB 7BCDP3326 DC Permanent Magnet Standard - CE/CSA
Part Number: 7BCDP3326
Quick Summary
ABB 7BCDP3326 DC Permanent Magnet Standard motor delivers compact, high-efficiency torque for continuous-duty conveyors and process lines. Engineers often face downtime and high warranty costs when sourcing 56C frame DC motors that fit tight layouts. This motor carries CE, CSA and UR certifications with WEEE compliance, helping you meet global safety and environmental standards. Compatible with Baldor drive ecosystems and TENV enclosures, it simplifies stocking, reduces spare parts, and boosts uptime across demanding industrial environments. With United States origin and 0 day lead time, this model supports fast procurement and predictable maintenance cycles.
Product Information
Extended Description
7BCDP3326 ABB: DC Permanent Magnet Standard 0.5 Hp (CDP3326)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
0.5HP,RPM,DC,56C,3336P,TENV,F1,N
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
2.5 A
Armature Inertia
8.42 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3326
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
33LY2051
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDP3326
Gross Volume
3496.049 inÂł
Gross Weight
31 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
0.5HP,RPM,DC,56C,3336P,TENV,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 0.5 HP, Frame Size 56C, 0 Phase, TENV Enclosure, (CDP3326)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
31 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B33-2051Z139
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, Frame Size 56C, 0 PH, TENV,
Standards
NEMA
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: DC Permanent Magnet design delivers higher efficiency and torque density than comparable wound-rotor options. Business Impact: reduced energy consumption and cooler operation lowers operating costs on constant-duty lines. Application: ideal for low-inertia drives like conveyors, packaging lines, and process equipment where uptime matters. Feature: 0.5 HP output in a 56C frame provides a compact footprint while delivering reliable torque. Business Impact: easier retrofits and standardized mounting reduce installation time and spare parts inventory. Application: OEM machines and retrofits requiring standard 56C components.Feature: Enclosure Type TENV protects internal components in typical plant environments, lowering cooling requirements. Business Impact: improved reliability in 40 °C ambient conditions with less auxiliary cooling. Application: manufacturing floors, assembly lines, and outdoors-adjacent equipment.Feature: Armature Voltage 180 V and Base Speed 1750 r/min with a 0.5 HP output delivers predictable performance from common DC power sources. Business Impact: simpler electrical integration and consistent drive response. Application: drives, conveyors, and material-handling systems.Feature: Regreasable lubrication extends maintenance intervals and motor life. Business Impact: reduced maintenance costs and less unscheduled downtime. Application: long-running processes in food, packaging, and logistics where uptime is critical.Feature: Direction of Rotation is both-sides operable, enabling flexible mounting and drive configurations. Business Impact: supports dual-direction conveyors and reversible line processes. Application: packaging lines, sorting equipment, and roller drives. Feature: Foot-mounted, 56C frame, and standardized Baldor compatibility streamline installation. Business Impact: faster commissioning, lower training needs, and smoother spares management. Application: OEM assemblies and retrofit projects across industrial plants.
Get a Quick Quote for a ABB 7BCDP3326
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDP3326?
Enquire Now
FAQs
CDP3326 is designed for 56C frame, foot-mounted installations with a TENV enclosure. It fits standard Baldor drive ecosystems and can be mounted horizontally, making it suitable for conveyors, packaging lines, and OEM machinery retrofit projects. The dual-direction rotation option supports reversible drive layouts for flexible line configurations.
The motor operates at 180 V with a base speed of 1750 r/min and provides 0.5 HP of output. Regreasable lubrication supports reliable long-term operation, and the 56C frame ensures compatibility with common motor mounts. Shaft diameter is 0.63 in, aiding compatibility with standard couplings and belts.
Yes. The 0.5 HP DC Permanent Magnet design in a TENV enclosure is intended for continuous-duty operation, delivering stable torque and efficient performance in conveyors, process lines, and other non-stop drives. The sealed bearings and regreasable lubrication further support long, maintenance-friendly operation in demanding environments.
The CDP3326 carries CE, CSA, and UR certifications with WEEE compliance, indicating conformance to European, North American, and safety/environmental standards. For procurement, these certifications simplify regulatory approvals, supplier qualification, and global distribution without additional re-testing.
Expect lower energy consumption from the DC PM design and longer intervals between maintenance due to regreasable lubrication. The compact 56C footprint reduces retrofit complexity, while compatibility with existing Baldor components minimizes spare parts costs. Overall, you gain improved uptime, reduced downtime costs, and faster deployment in new or rebuilt lines.
