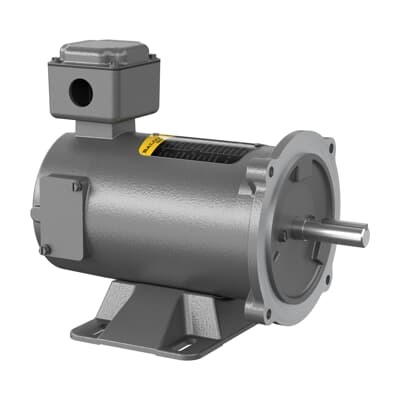

ABB CDP3335 DC Motor - 0.5 HP, 56C, TENV, CE/CSA/UR
Part Number: 7BCDP3335
Quick Summary
ABB CDP3335 DC motor delivers reliable 0.5 HP power for automated conveyors and process equipment. Many buyers struggle with long lead times and inconsistent performance in demanding industrial environments. This motor carries CE, CSA, UR, and WEEE certifications to support global compliance and safe operation. With a RoHS-compliant design and a compact 56C frame, it fits tight spaces while delivering predictable performance, enabling OEMs to reduce installation complexity and total cost of ownership.
Product Information
Extended Description
7BCDP3335 ABB: DC Permanent Magnet Standard 0.5 Hp (CDP3335)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,2500RPM,DC,56C,3327P,TENV,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5 A
Armature Inertia
6.32 ft·lbf
Armature Voltage
90 V
Base Speed
2500 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3335
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
33LY2123
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDP3335
Gross Volume
2110.969 in³
Gross Weight
26 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,2500RPM,DC,56C,3327P,TENV,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 0.5 HP, Frame Size 56C, 0 Phase, TENV Enclosure, (CDP3335)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
26 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
2500 r/min
Replaced Product ID (OLD)
7B33-2123Z148
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, Frame Size 56C, 0 PH, TENV,
Standards
NEMA
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
The DC permanent magnet design delivers higher efficiency and torque density than traditional brushed motors, enabling reduced energy use and cooler operation in continuous duty applications. Business impact: lower operating costs and longer equipment life due to improved thermal performance; Application: conveyors, material handling and process lines where stable torque at 2500 r/min is critical. The 56C frame, foot-mounted base, and horizontal mounting offer straightforward installation and compatibility with standard B5/B14 mounting patterns, speeding up integration in existing architectures. Business impact: faster commissioning and reduced downtime during changes or upgrades; Application: retrofits or new line builds in manufacturing facilities. Regreasable lubrication and sealed bearings (6203) extend maintenance intervals, cutting preventive maintenance costs and preserving uptime in dirty or dusty environments. Business impact: predictable maintenance cycles and lowered service costs; Application: packaging, printing, and automated machining cells. The enclosure is TENV and the motor supports a RoHS-compliant, 1000 m altitude operating envelope with 40 °C ambient temperature tolerance, delivering reliable performance in harsh production floors. Business impact: compliance with safety standards and consistent performance in variable environments; Application: outdoor or semi-indoor installations with moderate heat. The stock is readily available across multiple warehouses (US, DE, CN), with 0-day lead time in EGAUT001/GBINS001/SGIND004/USABB014 networks, improving project timelines and reducing rush-order penalties. Business impact: accelerated procurement and improved project scheduling; Application: OEMs and distributors maintaining lean inventories.
Get a Quick Quote for a ABB 7BCDP3335
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDP3335?
Enquire Now
FAQs
The CDP3335 uses a 56C frame and foot-mounted base designed for Horizontal mounting, compatible with standard mounting patterns. This enables straightforward installation in existing conveyor and process equipment without costly rework. Shaft diameter is 0.63 inches, supporting common coupling and pulley configurations, while the sealed bearing (6203) improves reliability in dirty environments.
Key specs include 0.5 HP rated output, 2500 r/min base speed, armature voltage of 90 V, armature current around 5 A, and a 56C frame with a 0.63 inch shaft. The motor is RoHS compliant, has a TENV enclosure, and is designed for continuous duty with a service factor of 1.00, making it suitable for steady, long-running applications.
Yes. The CDP3335 is specified for continuous duty with a TENV enclosure and a 56C frame, designed to manage heat and vibration in conveyors, pumps, and related automation equipment. Its regreasable lubrication and sealed bearings help sustain uptime, while the 2500 r/min base speed provides stable torque for steady-line operations.
The motor carries CE, CSA, UR, and WEEE certifications, with RoHS compliance and an approved status for global distribution. These certifications support regulatory acceptance across regions, simplify safety approvals for machinery, and align with typical manufacturing and automation standards in North America and Europe.
Maintenance is simplified by regreasable lubrication and a sealed bearing arrangement, reducing unscheduled downtime. Availability is high across multiple warehouses (US, DE, CN) with 0-day lead time in several supplier networks, enabling faster project timelines. ROI improves through energy efficiency of the PM design, lower maintenance costs, and reduced enclosure-related heat in compact installations.
