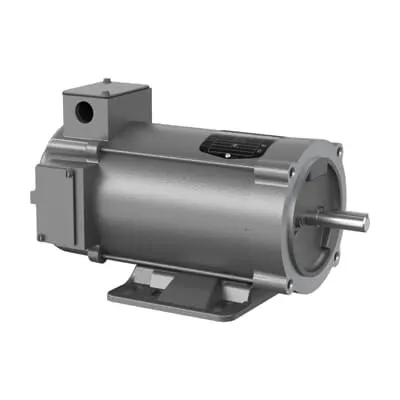

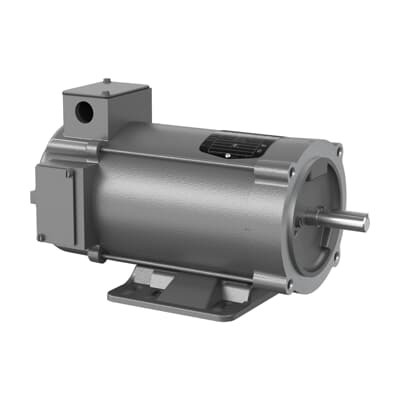

ABB 7BCDP3420-V12 DC PM Low Voltage - 0.33HP CSA/UR
Part Number: 7BCDP3420-V12
Quick Summary
DC PM Low Voltage drives compact, dependable motor control for industrial conveyors and processing lines. Engineers often wrestle with long lead times and uncertain compatibility when sourcing DC motors for low-voltage drives. It is certified for safety and reliability with CSA/UR listings and a NEMA TENV enclosure, providing environmental protection in demanding environments. The Baldor-Reliance CDP3420-V12 aligns with a 56C frame and 0.33 HP, enabling straightforward drop-in replacements in existing Baldor systems. This compatibility streamlines procurement, reduces design risk, and supports faster project timelines while delivering consistent performance in harsh industrial settings.
Product Information
Extended Description
7BCDP3420-V12 ABB: DC PM Low Voltage 0.33 Hp (CDP3420-V12)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1800RPM,DC,56C,3416P,TENV,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
28.6 A
Armature Inertia
5.51 ft·lbf
Armature Voltage
12 V
Base Speed
1800 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3420-V12
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY6943
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDP3420-V12
Gross Volume
2200.078 in³
Gross Weight
31 lb
Horsepower Rating UL/CSA
0.330 Hp
IC Class
TENV
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.33HP,1800RPM,DC,56C,3416P,TENV,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM Low Voltage, 0.33 HP, Frame Size 56C, 0 Phase, TENV Enclosure, (CDP3420-V12)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.33 Hp
Product Name
DC PM Low Voltage
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
31 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, Frame Size 56C, 0 PH, TENV,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Feature → Business Impact → Application: The CDP3420-V12 delivers 0.33 HP at 1800 r/min with a 12 V armature for compact, high-torque control in space-constrained drives, reducing system footprint and wiring complexity. This translates to lower installation costs and easier retrofits on conveyors and small processing lines. Application: ideal for line-side motor control in material handling and packaging equipment where reliability and quick integration matter. Feature → Business Impact → Application: The enclosure is TENV, providing sealed, maintenance-friendly protection in factory floors with dust or moisture exposure. Benefit: longer service intervals and reduced unplanned downtime. Application: food and beverage, chemical processing, and general manufacturing where rugged enclosure performance is essential. Feature → Business Impact → Application: 56C frame and 31 lb weight enable straightforward bolt-in replacement in existing Baldor 56C footprints, minimizing downtime during upgrades. Application: retrofit projects and new install where standard Baldor gear and mounts are already in use. Feature → Business Impact → Application: Regreasable lubrication supports extended bearing life and lower maintenance costs, delivering predictable uptime. Application: continuous-operation motors in conveying and pump systems. Feature → Business Impact → Application: 12 V armature with a sealed 6203 bearing setup supports consistent speed control at ambient temperatures up to 40 °C and altitude to 1000 m. Application: OEMs designing machines for North American plants with typical HVAC-conditioned environments. Feature → Business Impact → Application: Foot-mounted, standard drive end flange simplifies installation and alignment in horizontal configurations. Application: compact machines with tight mounting envelopes and existing mounting patterns. Feature → Business Impact → Application: 0.33 HP rating with a continuous duty profile ensures dependable operation in non-stop conveyor or processing tasks. Application: non-powered test benches, automated material handling, and packaging lines that require steady DC motor performance.
