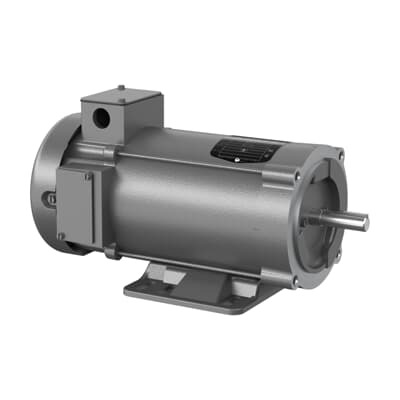

ABB CDP3440-V24 DC PM Low Voltage - CSA UR
Part Number: 7BCDP3440-V24
Quick Summary
DC PM Low Voltage motors like the ABB CDP3440-V24 deliver compact, reliable 0.75 HP drive performance for industrial equipment. Engineers often struggle with finding low-voltage DC drives that fit tight spaces, meet demanding uptime targets, and keep maintenance costs predictable. This model combines a 24 V armature, 1800 r/min base speed, and a TEFC enclosure with a rugged 56CZ frame to simplify installation in conveyors, pumps, or machine tools. It carries CSA and UL (UR) listings and NEMA-style protection, supporting compliant, safe operation in regulated environments. With 0-day lead time and global stocking, it translates to faster project starts and lower total installed costs, especially in Quality-driven automation projects.
Product Information
Extended Description
7BCDP3440-V24 ABB: DC PM Low Voltage 0.75 Hp (CDP3440-V24)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1800RPM,DC,56C,3424P,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
29.4 A
Armature Inertia
8.26 ft·lbf
Armature Voltage
24 V
Base Speed
1800 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3440-V24
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LY6893
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDP3440-V24
Gross Volume
2200.078 inÂł
Gross Weight
41 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
.75HP,1800RPM,DC,56C,3424P,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM Low Voltage, 0.75 HP, Frame Size 56Cz, 0 Phase, TEFC Enclosure, (CDP3440-V24)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56CZ
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.75 Hp
Product Name
DC PM Low Voltage
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
41 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, Frame Size 56Cz, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Feature: The compact DC PM low voltage design integrates drive electronics with a purpose-built frame, enabling tighter equipment packing and a leaner electrical installation. Business impact: A smaller footprint reduces panel space, trims cabling complexity, and lowers enclosure costs, accelerating project timelines and improving overall equipment reliability. Application: Fits in conveyors, pumps, and packaging lines where space is at a premium and precise 0.75 HP performance is required under demanding operating conditions. Feature: The motor delivers steady speed control at 1800 r/min with a 24 V armature, enabling accurate process timing and repeatable performance. Business impact: Enhanced startup torque and controlled ramp reduce mechanical stress, energy surges, and maintenance cycles, delivering predictable throughput and lower operating costs. Application: Well-suited for variable-load tasks in manufacturing lines, including conveyors, pumps, and small-machine tools that demand reliable torque at several duty cycles. Feature: The TEFC enclosure paired with a 56CZ frame provides robust protection against dust, moisture, and industrial contaminants. Business impact: This ruggedness minimizes downtime, extends bearing life, and reduces preventative maintenance requirements across multi-shift operations. Application: Installation across horizontal mount, foot-mounted bases with standard shaft coupling while accommodating a 0.63 in shaft diameter for common drive trains. Feature: Regreasable lubrication supports proactive maintenance with targeted lubrication intervals rather than reactive bearing replacements. Business impact: Lower maintenance costs and extended service intervals translate into reduced total cost of ownership and improved line uptime. Application: Suitable for continuous duty applications in demanding environments, where consistent lubrication prolongs life of bearings and seals. Feature: Global stocking and zero-day lead time ensure rapid availability across multiple warehouses and regions. Business impact: Faster onboarding, shorter quote-to-production cycles, and reduced risk of production delays in critical automation projects. Application: Works with standard ABB Baldor-Reliance components and aligns with CSA | UR and NEMA-based expectations for compliant, safe operation.
Get a Quick Quote for a ABB 7BCDP3440-V24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDP3440-V24?
Enquire Now
FAQs
The CDP3440-V24 is designed for straightforward mounting on a horizontal, foot-mounted base using the standard 56CZ footprint. It uses a 0.63 in shaft and a TEFC enclosure, compatible with typical couplings and drive belts. With 0-day lead time and warehouses stocking the model, procurement and installation can proceed with minimal downtime and quick maintenance turnarounds.
Key performance metrics include 0.75 HP output at 1800 r/min, a 24 V armature, and a service factor of 1.0. The TEFC enclosure protects against dust and moisture, while the 56CZ frame and 41 lb weight support predictable torque and reliable mounting. It delivers strong starting torque and smooth ramping suitable for continuous-duty tasks.
Yes. The 0.75 HP DC PM low voltage design is well-suited for conveyors, pumps, and packaging lines where space is constrained and reliable speed control is essential. Its foot-mounted base, horizontal mounting, and 0.63 in shaft diameter simplify integration with existing drive trains, while 24 V DC operation enables precise control and repeatable performance under varying loads.
The motor carries CSA and UL recognized (UR) listings and uses a NEMA-style protection approach through the TEFC enclosure. These certifications support safe operation in regulated facilities and align with common industry requirements across manufacturing, food processing, and general automation environments.
Maintenance is aided by regreasable lubrication, reducing bearing wear and delaying replacements. The warranty policy requires warranty returns for covered faults, but the motor’s rugged TEFC design and zero-day lead times minimize downtime. Expect lower maintenance costs and faster project ROI through improved line uptime and reduced replacement frequency.
