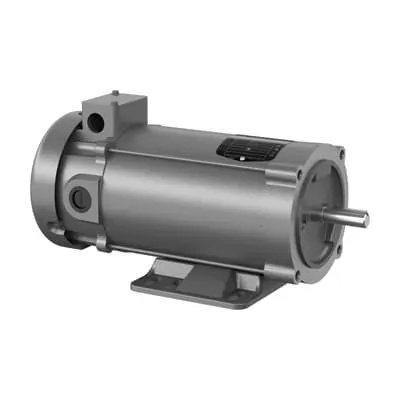

ABB CDP3445 DC Permanent Magnet Standard - 1 HP TEFC
Part Number: 7BCDP3445
Quick Summary
ABB CDP3445 is a DC permanent magnet motor for precise, reliable drive in general industrial automation. When project timelines tighten, delays from sourcing and custom configurations bite hard—this model ships with 0 day lead time and is stocked across regional warehouses. It carries CE, CSA, UR, and WEEE certifications, supporting global compliance and safe operation in dynamic environments. The TEFC enclosure and 56C frame deliver rugged performance while simplifying installation and maintenance. As a compact, 1 HP DC motor, it enables efficient control and predictable behavior in automation lines, reducing downtime and total cost of ownership for OEMs and maintenance teams alike.
Product Information
Extended Description
7BCDP3445 ABB: DC Permanent Magnet Standard 1 Hp (CDP3445)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,56C,3435P,TEFC,F1,N
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
10 A
Armature Inertia
13.66 ft·lbf
Armature Voltage
90 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3445
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LY5990
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDP3445
Gross Volume
3590.443 inÂł
Gross Weight
44 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1750RPM,DC,56C,3435P,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 1 HP, Frame Size 56C, 0 Phase, TEFC Enclosure, (CDP3445)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
44 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-5990-3675
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, Frame Size 56C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
Menden, Germany | Singapore, Singapore | China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
DC permanent magnet design delivers higher efficiency and improved torque at low speeds, reducing energy consumption in continuous-duty automation. This translates to measurable savings on running costs and cooler operation under load. It pairs with precise speed regulation in conveyors, packaging lines, and machine tools, making it ideal for OEMs looking to optimize throughput without oversizing controllers. 1 HP rating with a 56C frame and TEFC enclosure ensures broad compatibility with standard replacements and retrofit projects. The standardized frame size minimizes downtime when sourcing spares, while TEFC protection supports operation in dirty environments and dusty factory floors. This combination also simplifies installation and service across multiple equipment platforms. Stocked at regional warehouses with 0 day lead time minimizes project delays, enabling rapid line changes and smoother maintenance planning. Availability across EGAUT001, GBINS001, SGIND004, and USABB014 networks reduces procurement risk and shortens time to first run. Compliance and safety are reinforced by CE, CSA, UR, and WEEE certifications, supporting global deployments and simplifying audits. With insulation class F and a 40 °C ambient rating, the motor maintains consistent performance in typical manufacturing environments. The greasable bearings and robust seals promote longer service intervals and reduced maintenance costs. Mechanical design favors straightforward installation thanks to a foot-mounted base and horizontal mounting, while a 0.63 in shaft diameter and compatible gearboxes or couplings support reliable power transmission. NEMA compatibility and Baldor-Reliance lineage enable familiar servicing practices and trouble-free integration into existing drive systems. Dimensioned for planning, the CDP3445’s 22.875 in L × 12.813 in H × 12.25 in W envelope aligns with common enclosure footprints and rack layouts.
