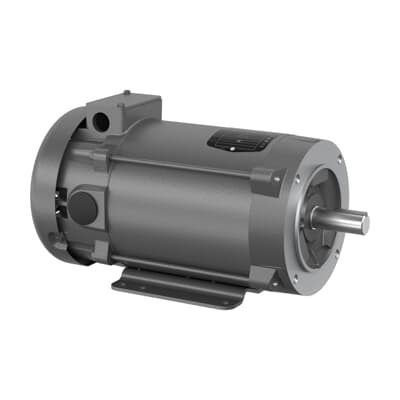

ABB 7BCDP3590 DC PM Standard - CE/CSA/UR/WEEE
Part Number: 7BCDP3590
Quick Summary
DC Permanent Magnet Standard 7BCDP3590 motor delivers reliable drive performance for general industrial applications. Engineers often wrestle with long lead times, inconsistent performance, and integration challenges when upgrading motor systems. This ABB unit carries key regulatory clarity with CE, CSA and UR certifications, plus WEEE compliance, helping you meet global safety and environmental standards. Built for rugged environments, it combines a 2 HP rating, TEFC enclosure, and frame size 145Tc to simplify retrofit and maintenance. With US-origin fabrication and stock across multiple warehouses, you can achieve quicker sourcing while pursuing energy efficiency and lifecycle cost reductions in conveyors, pumps, and processing lines.
Product Information
Extended Description
7BCDP3590 ABB: DC Permanent Magnet Standard 2 Hp (CDP3590)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,2500RPM,DC,145TC,3536P,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
10 A
Armature Inertia
30.34 ft·lbf
Armature Voltage
180 V
Base Speed
2400 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3590
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYP432
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Global Commercial Alias
CDP3590
Gross Volume
3590.443 inÂł
Gross Weight
66 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,2500RPM,DC,145TC,3536P,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 2 HP, Frame Size 145Tc, 0 Phase, TEFC Enclosure, (CDP3590)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
2 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
66 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
2400 r/min
Replaced Product ID (OLD)
7B35P432Z182
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
2 HP, Frame Size 145Tc, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The DC Permanent Magnet design delivers high efficiency and fast torque response, reducing energy consumption and improving process control in demanding drives such as material handling and packaging lines. This translates to measurable operating cost savings and improved uptime when used on conveyors and pumps in manufacturing facilities. Feature → Business Impact → Application: 2 HP output with a 2400 r/min base speed in a compact frame size 145Tc enables straightforward retrofit into existing footprints, minimizing downtime and permitting seamless integrations with standard NEMA-compliant drive systems in industrial plants. Feature → Business Impact → Application: TEFC enclosure and rugged steel construction protect internal components from dust and moisture, extending service life in dusty environments like warehouses and outdoor loading docks, while enabling easier maintenance and longer intervals between servicing. Feature → Business Impact → Application: Regreasable lubrication and sealed bearings (6205) provide reliable operation with reduced maintenance costs and predictable wear patterns, suitable for continuous duty in fans, pumps, and small conveyors. Feature → Business Impact → Application: RoHS and WEEE compliance, along with multiple certifications (CE, CSA, UR), mitigate regulatory risk across global operations and support sustainable procurement practices in automotive, consumer- or heavy-industry supply chains. Feature → Business Impact → Application: Stocked at multiple warehouses with immediate availability and a zero-day lead time, ensuring rapid deployment for time-critical projects and minimizing project delays in automotive, processing, and material-handling applications.
Get a Quick Quote for a ABB 7BCDP3590
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDP3590?
Enquire Now
FAQs
The motor is designed for foot-mounted installation with a frame size of 145Tc and a shaft diameter of 0.88 in. Its compact depth of 22.875 in and width of 12.25 in simplify retrofits into existing equipment footprints, while the TEFC enclosure protects key components in typical factory environments.
Yes. The ABB 7BCDP3590 operates at 180 V with a base speed of 2400 r/min. Rated at 2 HP, it is suitable for continuous-duty drive applications in conveyors, pumps, and fans, delivering stable performance in standard industrial tasks.
The motor carries CE, CSA, UR, and WEEE certifications and is RoHS compliant, providing broad regulatory alignment for international deployments and safer, environmentally responsible operation across manufacturing sites.
Lead time is listed as 0 day, and the unit is stocked at multiple warehouses (including US and China), enabling rapid procurement and quicker installation across global operations without the delays typical of custom builds.
The motor uses regreasable lubrication with sealed 6205 bearings and a robust steel frame for long service life in continuous-duty environments. The TEFC enclosure further protects internals, reducing maintenance frequency and supporting dependable operation in harsh industrial conditions.
