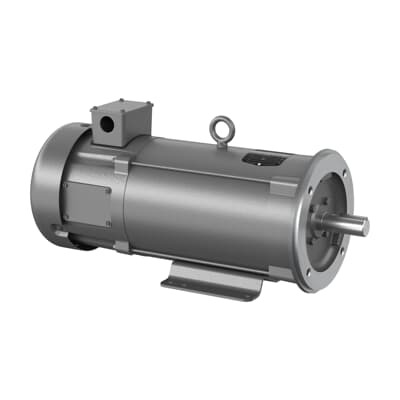

ABB CDP3603 DC PM Standard - 3 HP TEFC 184TC Motor
Part Number: 7BCDP3603
Quick Summary
DC Permanent Magnet Standard motors from ABB deliver compact, efficient torque for continuous-duty drives in conveyors, pumps, and processing lines. When downtime or space constraints threaten productivity, these TEFC-frame motors offer rugged reliability and straightforward replacement. Certified CE, CSA, and UR approvals ensure global compliance, while RoHS support helps sustainable, cross-border deployment. With a 3 HP rating at 1750 rpm and multi-warehouse stock from the US and international locations, this solution reduces footprint, simplifies maintenance, and speeds project timelines. Designed for United States origin and readily available stock, it helps engineers and procurement teams meet tight schedules without sacrificing performance.
Product Information
Extended Description
7BCDP3603 ABB: DC Permanent Magnet Standard 3 Hp (CDP3603)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,DC,184TC,3649P,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
14 A
Armature Inertia
107.11 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3603
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYP181
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Global Commercial Alias
CDP3603
Gross Volume
5770.548 in³
Gross Weight
112 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1750RPM,DC,184TC,3649P,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 3 HP, Frame Size 184Tc, 0 Phase, TEFC Enclosure, (CDP3603)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
3 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
31.813 in
Product Net Height
13.625 in
Product Net Weight
112 lb
Product Net Width
13.313 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36P181Z507
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
3 HP, Frame Size 184Tc, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
DC Permanent Magnet (PM) technology delivers high torque density with lower energy losses, translating into measurable energy savings and cooler operation in continuous-duty applications such as conveyors and pumps. This directly reduces cooling requirements and improves overall system reliability, while enabling tighter speed control for process precision. TEFC (Totally Enclosed Fan Cooled) enclosure provides robust protection against dust, moisture, and contaminants, enabling longer service life in demanding industrial environments and simplifying installation away from climate-controlled spaces. The compact 184TC frame and foot-mounted base support easy retrofits and straightforward mounting in existing equipment footprints, accelerating installation and minimizing mechanical integration work. A 3 HP rating at 1750 r/min with a 180 V armature supply and 0-phase operation offers predictable, maintenance-friendly performance across common industrial drives. Stocking at multiple warehouses and a zero-day lead time shorten project timelines and reduce on-site stocking costs. Compliance with CE, CSA, and UR alongside RoHS conformity reinforces global deployment readiness for regulated industries while minimizing regulatory risk. The motor’s rugged design, medium inertia, and regreasable lubrication contribute to lower maintenance costs and longer intervals between service events, delivering a faster return on investment for new lines or upgrades.
Get a Quick Quote for a ABB 7BCDP3603
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDP3603?
Enquire Now
FAQs
CDP3603 is designed as a foot-mounted, TEFC motor with a shaft diameter of 1.13 inches. It fits standard 184TC frame mounting patterns and supports horizontal mounting orientation. For retrofits, verify existing bore alignment and flange compatibility with the Standard Drive End flange to ensure straightforward installation and minimal modification.
This model provides 3 HP output at 1,750 r/min with a 180 V armature voltage in a TEFC enclosure. It is a 0-phase DC permanent magnet motor designed for continuous duty, offering reliable performance in rugged environments while maintaining a compact footprint suitable for space-constrained installations.
Ideal for conveyors, pumps, and processing lines requiring precise speed control and high reliability. The TEFC enclosure and robust frame support operation in dirty or humid facilities, while the 3 HP rating and 1,750 r/min base speed deliver responsive drive performance in continuous duty scenarios.
CDP3603 carries CE, CSA, UR, and WEEE certifications, along with RoHS compliance. These approvals facilitate cross-border procurement and risk reduction for regulated industries, and support deployment in markets with strict electrical and environmental requirements.
Lubrication is regreasable, supporting longer service intervals and lower maintenance costs. The stock availability from multiple warehouses enables faster project timelines, while the durable TEFC design reduces downtime. Over the motor’s life, energy efficiency gains from DC PM technology contribute to a shorter return on investment on new lines or upgrades.
