ABB 7BCDP3605 DC Permanent Magnet Standard - CE CSA UR
Part Number: 7BCDP3605
Quick Summary
DC Permanent Magnet Standard motors deliver high-efficiency, compact performance for constant-speed drives in automation and material handling. Engineers often confront long procurement cycles, inconsistent stock, and maintenance headaches when sourcing reliable motors for high-use systems. This ABB CDP3605 model is designed to reduce downtime with immediate US and international stock, zero-day lead times, and readily available spares. Key certifications support regional compliance and safe operation: CE for European markets, CSA and UR safety approvals, and WEEE considerations for responsible disposal. By combining robust, sealed construction with global stocking and a 5 HP rating, this motor helps OEMs and integrators cut cycle times while improving total cost of ownership in conveyors, packaging lines, and automated assemblies.
Product Information
Extended Description

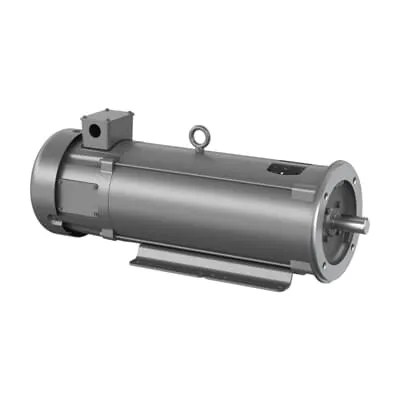

7BCDP3605 ABB: DC Permanent Magnet Standard 5 Hp (CDP3605)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,DC,1810ATC,3681P,TEFC,F
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
21.6 A
Armature Inertia
192.36 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6206, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDP3605
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
36LYP179
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
1810
Global Commercial Alias
CDP3605
Gross Volume
13438.538 in³
Gross Weight
161 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
5HP,1750RPM,DC,1810ATC,3681P,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 5 HP, Frame Size 1810Atc, 0 Phase, TEFC Enclosure, (CDP3605)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
1810ATC
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
5 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Weight
161 lb
Product Net Width
17.625 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36P179Z543
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5 HP, Frame Size 1810Atc, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application. DC Permanent Magnet technology delivers high efficiency and simplified drive design, reducing energy consumption and cooling requirements in 5 HP applications. This directly translates to lower operating costs and smaller cooling footprints in continuous-duty setups like conveyors and automated pick-and-place systems. Feature → Application → Benefit. Frame Size 1810ATC with TEFC enclosure and a 1.13 in shaft diameter supports rugged, enclosed operation in dusty or demanding environments, while enabling straightforward installation and alignment with standard shafts and couplings used in material handling. Feature → Compliance → Risk Reduction. Certifications CE, CSA, UR ensure regulatory readiness across key markets, facilitating rapid approvals for system integration and safer machine performance. Feature → Stock Availability → Uptime. Stocked at multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU) and zero-day lead times reduce downtime and accelerate project timelines for OEMs and integrators. Feature → Maintenance & Longevity → Reliability. Regreasable lubrication and sealed bearings support longer service life with reduced maintenance, minimizing unplanned downtime in continuous operations. Feature → Performance Margin → Flexibility. Rated speed of 1750 r/min and a 5 HP output provide strong torque characteristics for moderate-load drives, while the 0-phase design simplifies control strategies in DC systems and broadens compatibility with DC drive architectures. Additionally, portable footprint and horizontal mounting orientation simplify retrofit projects and spare-part sourcing for legacy lines.
