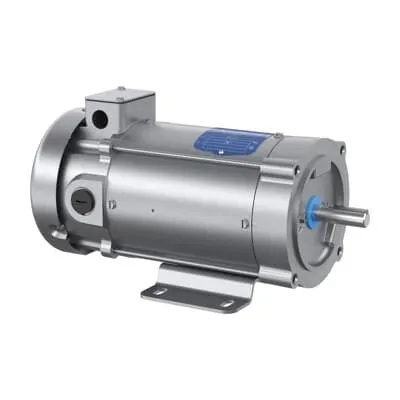

ABB CDPSWD3430 DC PM Paint-Free Washdown - CSA/UR Listed
Part Number: 7BCDPSWD3430
Quick Summary
DC PM Paint-Free Washdown motor provides reliable, corrosion-resistant performance for washdown applications in food processing and beverage lines. Operators often struggle with seal failures, rust, and downtime when using conventional motors in damp, high-pressure cleaning environments. This ABB unit is CSA/UR listed, RoHS compliant, and built with a TEFC enclosure to meet stringent industry standards in hygienic manufacturing. With a 0.5 HP rating and 1750 RPM, it combines a compact footprint with robust power, while availability across multiple warehouses supports rapid deployment. Choosing a purpose-built washdown motor like this minimizes maintenance, extends service life, and helps reduce total cost of ownership for capital-intensive automation lines.
Product Information
Extended Description
7BCDPSWD3430 ABB: DC PM Paint-Free Washdown 0.5 Hp (CDPSWD3430)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1750RPM,DC,56C,3428P,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
5.2 A
Armature Inertia
10.93 ft·lbf
Armature Voltage
90 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPSWD3430
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LY6694
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDPSWD3430
Gross Volume
2110.969 inÂł
Gross Weight
37 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1750RPM,DC,56C,3428P,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM Paint-Free Washdown, 0.5 HP, Frame Size 56C, 0 Phase, TEFC Enclosure, (CDPSWD3430)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
DC PM Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
37 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-6694-3662G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, Frame Size 56C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Paint-Free Washdown design eliminates traditional paint exposure points, reducing corrosion risk and simplifying sanitation in food processing, beverage, and pharmaceutical lines. The result is faster cleaning cycles and lower contamination risk, improving overall product safety and line uptime. TEFC enclosure paired with a 56C frame provides durable protection against water, humidity, and spray-down, enabling flexible installation options, including horizontal mounting and foot mounting in tight layouts. This combination delivers reliable operation in demanding environments while helping ensure compliance with hygienic standards and industry best practices. RoHS compliance and CSA/UR certification provide regulatory confidence, simplifying supplier qualification and cross-border procurement for global plants. Regreasable bearings extend service life in high-cycle washdown operations, reducing maintenance labor and spare parts costs. The robust steel frame and standardized footprint enable quick retrofit in existing lines, accelerating project timelines and supporting predictable maintenance planning.
Get a Quick Quote for a ABB 7BCDPSWD3430
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPSWD3430?
Enquire Now
FAQs
This model is designed for foot-mounted and horizontal mounting using a 56C frame with a TEFC enclosure. Plan for adequate clearance around the enclosure for spray-down cleaning, ensure proper ventilation, and verify alignment with the existing mechanical interface. The motor’s RoHS and CSA/UR certifications support global installations, while stock availability in multiple warehouses reduces lead times.
Its paint-free surface reduces contamination risk and simplifies sanitation, while the TEFC enclosure protects internal components from moisture and washdown spray. The 0.5 HP, 1750 rpm rating provides reliable, steady torque for continuous operation, minimizing downtime and maintenance in high-cycle environments common to processing lines.
Yes. The motor is RoHS compliant and CSA/UR listed, which supports regulatory compliance for food, beverage, and pharmaceutical facilities. These certifications facilitate supplier qualification, enable easier audits, and reduce risk when scaling across multiple regional plants.
The unit uses regreasable bearings for extended service life and reduced bearing-related downtime. Its robust steel frame and protected TEFC enclosure resist corrosion and wear in washdown environments, lowering replacement costs and enabling longer intervals between service visits.
With a standardized 56C frame and established mounting patterns, it supports straightforward retrofit into compatible equipment. Lead times are minimized by stock availability at multiple warehouses, enabling faster project ramp-up and reduced installation scheduling risk.
