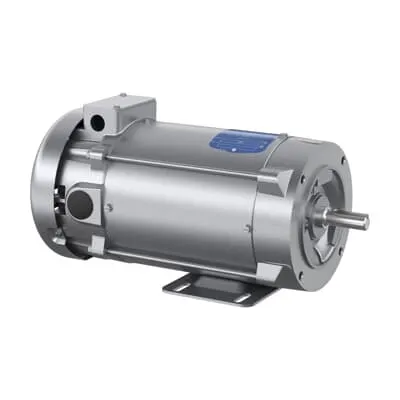

ABB 7BCDPSWD3555 DC PM Washdown 1 HP Motor - TEFC
Part Number: 7BCDPSWD3555
Quick Summary
ABB 7BCDPSWD3555 DC PM Paint-Free Washdown motor delivers a robust 1 HP drive for hygienic, washdown-ready production lines. Operators face corrosion, downtime, and sanitation challenges; this motor minimizes maintenance through a paint-free exterior and a rugged TEFC design. It carries CSA | UR certification, NEMA compatibility, and RoHS compliance to support regulated facilities. With compatibility across ABB Baldor control ecosystems and 0-day lead times, it delivers reliable uptime and lowers total cost of ownership for high-cycle, regulated environments.
Product Information
Extended Description
7BCDPSWD3555 ABB: DC PM Paint-Free Washdown 1 Hp (CDPSWD3555)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,56C,3536P,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
4.9 A
Armature Inertia
30.34 ft·lbf
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPSWD3555
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYP634
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDPSWD3555
Gross Volume
3590.443 inÂł
Gross Weight
63 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1750RPM,DC,56C,3536P,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
DC PM Paint-Free Washdown, 1 HP, Frame Size 56C, 0 Phase, TEFC Enclosure, (CDPSWD3555)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC PM Paint-Free Washdown
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
63 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, Frame Size 56C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
Paint-Free exterior eliminates paint chips that can trap debris and harbor bacteria, reducing sanitation downtime and maintenance costs while keeping surfaces clean for hygienic washdowns. This directly supports higher line uptime in food processing, beverage packaging, and pharmaceutical production. The TEFC enclosure paired with a 56C frame provides rugged protection against washdown liquids and cleaning agents, extending bearing life and minimizing maintenance interrupts during continuous operation on conveyors and mixers. Sealed 6205 bearings deliver reliable performance in moist, high-humidity environments, improving reliability when operating at 1750 r/min and under frequent washdowns. With a 1 HP output and 180 V armature voltage, the motor integrates smoothly with standard control systems and common power feeds, while the foot-mounted, horizontal mounting design simplifies retrofit onto existing lines. RoHS compliance, CSA | UR certification, and adherence to NEMA standards reduce compliance risk and simplify vendor qualification, and regional warehouses with 0-day lead times support fast procurement for production schedules.
Get a Quick Quote for a ABB 7BCDPSWD3555
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPSWD3555?
Enquire Now
FAQs
The motor is designed for horizontal, foot-mounted installation with a standard drive-end flange, simplifying retrofit onto conveyors and processing equipment in washdown lines. Its 56C frame and TEFC enclosure provide ample protection during frequent cleaning.
It delivers 1 HP at 1750 r/min with a 180 V armature voltage and 4.9 A current. The unit uses a 56C frame and 6205 sealed bearings, and it is RoHS compliant with NEMA-aligned performance.
Yes. It carries CSA and UR certification, complies with RoHS, and adheres to NEMA standards, supporting safe operation in regulated facilities such as food, beverage, and pharma environments.
Lead time is listed as 0 day, and the product is stocked at multiple regional warehouses, enabling rapid procurement and reduced downtime for critical lines.
The paint-free exterior minimizes sanitation concerns and maintenance downtime, while the TEFC enclosure and sealed bearings improve reliability in washdown cycles. Combined with RoHS/NEMA compliance and fast availability, this reduces total cost of ownership and boosts line uptime.
