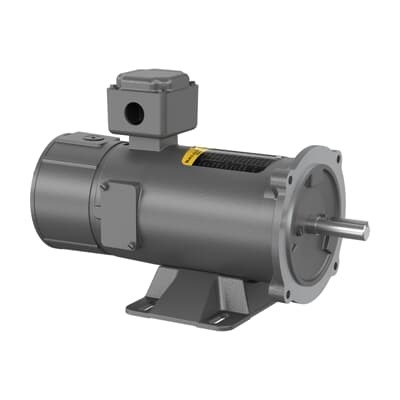

ABB 7BCDPT3330 DC Permanent Magnet Standard - CE/CSA/UR/WEEE
Part Number: 7BCDPT3330
Quick Summary
DC Permanent Magnet Standard motors deliver reliable 0.5 hp torque for compact drive applications. Sourcing consistent stock and predictable lead times can bottleneck automation projects, but ABB provides immediate availability from multiple warehouses. These motors are CE, CSA, UR, and WEEE certified with RoHS compliance, and they’re built to endure industrial environments with a rugged TENV enclosure. Designed for industrial automation, the 56C frame is foot-mounted for straightforward installation, while the horizontal mounting and robust bearings streamline integration with standard drives and control panels. This combination reduces commissioning risk and accelerates time-to-value for system integrators and OEMs.
Product Information
Extended Description
7BCDPT3330 ABB: DC Permanent Magnet Standard 0.5 Hp (CDPT3330)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1750RPM,DC,56C,3336P,TENV,F1,N
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
4.8 A
Armature Inertia
14.05 ft·lbf
Armature Voltage
90 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPT3330
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
33LY2657
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDPT3330
Gross Volume
5274.135 in³
Gross Weight
34 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1750RPM,DC,56C,3336P,TENV,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 0.5 HP, Frame Size 56C, 0 Phase, TENV Enclosure, (CDPT3330)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
34 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B33-2657Z122
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, Frame Size 56C, 0 PH, TENV,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: DC Permanent Magnet Standard provides a compact, high-efficiency solution (0.5 hp) that fits a 56C frame with a foot-mounted base, enabling space-saving installations in conveyors and pumps. The result is lower footprint, easier retrofit, and reduced system complexity when upgrading legacy equipment. Feature → Business Impact → Application: Regreasable lubrication and sealed 6203 bearings extend service intervals and minimize maintenance downtime, improving overall line reliability in continuous duty environments. Feature → Business Impact → Application: A 90 V armature with 4.8 A current delivers stable torque at 1750 r/min, supporting consistent performance in fans and small machine tools without frequent driver adjustments. Feature → Business Impact → Application: TENV enclosure and insulation class F provide thermal resilience in moderate ambient conditions up to 40 °C and altitudes up to 1000 m, reducing enclosure cooling costs and protecting electronics in compact automation panels. Feature → Business Impact → Application: RoHS compliant and WEEE-aligned design simplifies regulatory compliance for OEMs targeting North American and European markets, lowering product lifecycle risk and facilitating global shipments. Feature → Business Impact → Application: Compatibility with standard drives and 0 phase operation makes it straightforward to integrate into existing control architectures, lowering total cost of ownership and accelerating deployment in automation workflows.
Get a Quick Quote for a ABB 7BCDPT3330
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCDPT3330?
Enquire Now
FAQs
The 7BCDPT3330 is designed as a foot-mounted unit with a horizontal mounting orientation and a 56C frame. This combination simplifies installation alongside standard conveyors, pumps, and fans, reducing alignment time and enabling straightforward coupling to commonly used drives. The shaft diameter is 0.63 inches, supporting common shaft couplings and standard motor bases. For retrofit projects, these features minimize downtime and ensure compatibility with existing mounting footprints.
Yes. The motor is a DC permanent magnet type with a rated speed of 1750 r/min and armature voltage of 90 V, designed to integrate with common DC drive systems used in automation panels. Its 0 phase configuration and 0.5 HP output provide a predictable torque profile, while the 56C frame and regreasable bearings simplify mechanical interfacing and maintenance planning. This makes it suitable for OEMs and integrators seeking reliable plug-and-play compatibility.
The 7BCDPT3330 is certified for CE, CSA, UR, and WEEE, with RoHS compliance. These certifications support regulatory compliance across North American and European markets, reducing certification risk for new equipment. The RoHS designation ensures restricted use of hazardous substances, which is important for medical, automotive, and industrial automation applications that require compliant components.
Maintenance is simplified by regreasable lubrication and sealed bearings (6203). This design supports extended service intervals and reduced maintenance downtime. Regular inspection of lubrication points and bearing wear is recommended, along with periodic checks on shaft alignment and mounting integrity. The motor’s robust insulation (F class) and TENV enclosure help maintain performance in typical plant environments, further reducing maintenance surprises.
Best suited for light to medium load applications in conveyors, small pumps, and fans within automation and packaging lines. The 0.5 HP output, 56C frame, and horizontal, foot-mounted configuration support compact assemblies and quick integration into control systems. With a 90 V armature and 1750 rpm, it provides reliable speed and torque for continuous duty in industrial environments while meeting RoHS and WEEE requirements for environmental compliance.
