ABB 7BCDPT3445 DC Permanent Magnet Standard - CE/CSA/UR
Part Number: 7BCDPT3445
Quick Summary
DC Permanent Magnet Standard motor is a compact, high-torque drive ideal for automation and processing equipment in manufacturing environments. Engineers often wrestle with downtime caused by maintenance-heavy designs and inconsistent torque under load. This unit carries CE, CSA, and UR safety certifications, supporting regulatory compliance across North America and Europe, with WEEE considerations for end-of-life. With a 56C frame and TEFC enclosure, installation is straightforward and compatible with common motor bases, couplings, and belts. Designed for predictable performance and lower total cost of ownership, it complements DC drive architectures in lightweight automation and continuous-duty lines.
Product Information
Extended Description

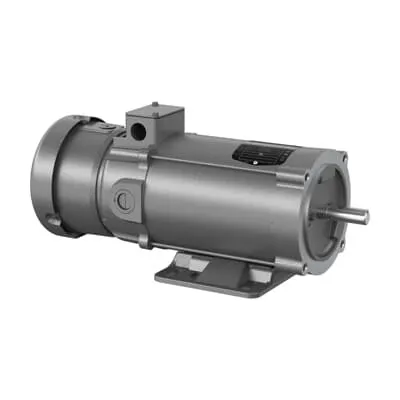

7BCDPT3445 ABB: DC Permanent Magnet Standard 1 Hp (CDPT3445)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,56C,3435P,TEFC,F1,N
Altitude
1000 m
Ambient Temperature
40 °C
Armature Current
10 A
Armature Inertia
13.66 ft·lbf
Armature Voltage
90 V
Base Speed
1750 r/min
Bearing
6203, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CDPT3445
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LY7842
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Global Commercial Alias
CDPT3445
Gross Volume
5274.135 in³
Gross Weight
49 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1750RPM,DC,56C,3435P,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
DC Permanent Magnet Standard, 1 HP, Frame Size 56C, 0 Phase, TEFC Enclosure, (CDPT3445)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC Permanent Magnet Standard
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
49 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B34-7842-3675
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, Frame Size 56C, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: Foot-mounted 56C frame and TEFC enclosure → Business Impact: Easy installation, robust protection against dust and moisture → Application: Conveyor segments and pumps in factory floors. Feature: 1 HP, 1750 r/min rated output → Business Impact: Adequate torque for steady operation with minimal footprint → Application: Material handling, fans, and small pumps in automated lines. Feature: 0 phase DC motor design → Business Impact: Simplified control with DC drives and consistent startup torque → Application: DC-powered automation modules and process equipment. Feature: Regreasable lubrication and sealed 6203 bearings → Business Impact: Reduced maintenance intervals and longer bearing life → Application: Continuous-duty equipment exposed to routine operation. Feature: Stocked at multiple warehouses (US, China) and 0-day lead time → Business Impact: Rapid fulfillment and lower downtime for critical spares → Application: Global repair centers and just-in-time manufacturing. Feature: Certifications CE, CSA, UR → Business Impact: Regulatory compliance and vendor qualification for multi-region procurement → Application: Public-sector and internationally deployed automation projects. Feature: Baldor-Reliance branding and standard catalog compatibility → Business Impact: Familiar replacement options and streamlined procurement → Application: OEM and system integrator deployments across industrial facilities.
